HEX TERRANITE Carbon-Free Earth Enhancing Compound – 25 kg, Approx. 50% Reduction per Bag per Metre

TERRANITE is the carbon-free compound in the HEX range of ground enhancing chemical compounds. Bentonite based, with dispersion, diffusion, ionising, expanding and hygroscopic agents, it lowers the resistivity of the soil around an electrode by about 50% per bag per metre (HEX figure) and is intended for normal soils. It comes in 25 kg bags marked "Earth Enhancing Compound — tested as per IEC 62561-7". It is part of the HEX range of ground enhancing chemical compounds (HEX is the earthing and cable-accessories brand of Brass Copper & Alloy (I) Ltd.).

Where a specification rules out carbon in the backfill, or the soil is of normal resistivity and a moderate improvement is enough, TERRANITE is the straightforward choice. Outside normal soils, choose TEREC+ (the only compound HEX rates for all soils) or EARTHCON, TERRAPRO or TERRAHEX (rated for most soils); all four quote larger reductions.

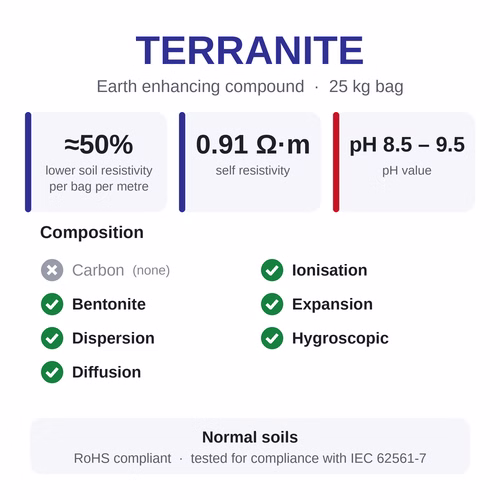

At a glance

• Bag: 25 kg
• Carbon: none — carbon free
• Approx. reduction in soil resistivity: about 50% per bag per metre
• Self resistivity: 0.91 Ω·m
• pH: 8.5 to 9.5
• Soil types: normal
• Constituents: bentonite, dispersion, diffusion, ionising, expanding and hygroscopic agents
• Compliance: RoHS compliant; tested as per IEC 62561-7

Why choose TERRANITE

• Carbon free — for specifications that exclude carbon in the backfill.
• Bentonite and hygroscopic agents hold moisture around the electrode.
• About 50% lower soil resistivity per bag per metre in normal soils (HEX figure).
• Tested as per IEC 62561-7 and RoHS compliant — eco-friendly.
• Non-corrosive — compatible with all types of earthing electrode.
• Long shelf life — keep the 25 kg bags dry until use.

Specifications

• Product: TERRANITE earth enhancing compound
• Bag packing: 25 kg
• pH value: 8.5 to 9.5
• Self resistivity: 0.91 Ω·m (ohm-metre)
• Approx. reduction in soil resistivity: 50% per bag per metre
• Suitable soil: normal
• Constituents: bentonite; dispersion, diffusion, ionisation, expansion and hygroscopic agents
• Not used: carbon
• Compliance: RoHS compliant; tested as per IEC 62561-7
• Shelf life: long — can be stored for a long period without deterioration
• Handling: for industrial use; keep dry; do not use hooks on the bag

How TERRANITE works

TERRANITE is placed around the electrode in the bore or trench, and the excavation is backfilled. Its bentonite and hygroscopic agents draw in and hold moisture, the ionising agents supply the ions that carry current, and the dispersion and diffusion agents spread that effect into the surrounding soil, while the expanding agents keep firm contact. The rod behaves as if it were much thicker, and the earth resistance drops.

Where it is used

• Normal soils where a moderate reduction in earth resistance is enough
• Projects that specify a carbon-free backfill
• Buildings, commercial and residential earthing
• Equipment and lightning-protection earth pits

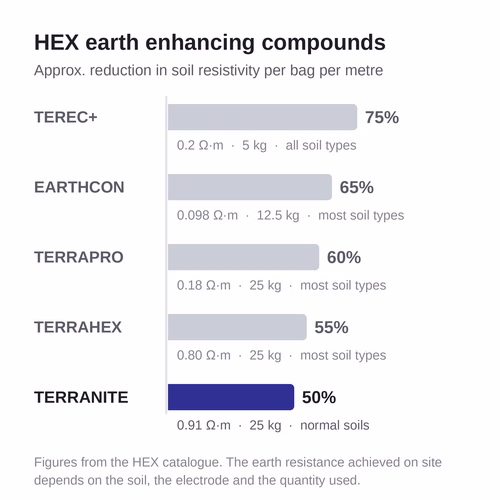

Which HEX earth enhancing compound do I need?

• TEREC+ — the largest quoted reduction, about 75% per bag per metre; bentonite free; rated for all soil types; 5 kg bags.
• EARTHCON — the lowest self resistivity of the range, 0.098 Ω·m; about 65% reduction; carbon and bentonite based; 12.5 kg bags.
• TERRAPRO — bentonite free and HEX-made; 0.18 Ω·m; about 60% reduction; 25 kg bags.
• TERRAHEX — HEX-made carbon and bentonite backfill with hygroscopic agents; 0.80 Ω·m; about 55% reduction; 25 kg bags.
• TERRANITE (this page) — carbon free, bentonite based; 0.91 Ω·m; about 50% reduction; for normal soils; 25 kg bags.
• Not sure? Send the soil resistivity report, the equipment to be earthed and the target resistance, and the right compound or blend is recommended.

Related products

• HEX copper bonded earth rods
• HEX solid copper earth rods
• HEX polymer earth pit chambers
• HEX concrete earth pit chambers
• HEX earth pit accessories: earth bars & rod seals

Frequently asked questions

Does TERRANITE contain carbon?

No. TERRANITE is carbon free; it is bentonite based, with dispersion, diffusion, ionising, expanding and hygroscopic agents.

How much does TERRANITE reduce soil resistivity?

About 50% per bag per metre, as quoted by HEX, in normal soils. The final earth resistance depends on the soil, the electrode and the quantity used.

Which soils is TERRANITE for?

HEX rates it for normal soils. Outside normal soils, choose TEREC+ (the only compound HEX rates for all soils) or EARTHCON, TERRAPRO or TERRAHEX (rated for most soils); all four quote larger reductions.

Is TERRANITE tested?

Yes — the bag is marked as tested as per IEC 62561-7, and HEX states its compounds are RoHS compliant.

How many bags do I need?

That depends on the bore or trench size, the electrode length, the soil resistivity and the earth resistance you need. Send those details and the number of bags — or a blend of HEX compounds — is worked out for you.

Is it safe for the soil and the earth electrode?

Yes. HEX states that its compounds are RoHS compliant and do not pollute the surrounding soil, and that they are non-corrosive and compatible with all types of earthing electrode.

Where can I buy TERRANITE in India?

From Jai Enterprises, which supplies HEX earthing material across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the number of bags and your site location.
