HEX Solid Copper Earth Rods – 99.9% Copper, UL Listed, Internally & Externally Threaded

HEX solid copper earth rods are made entirely from 99.9% pure electrolytic copper, so there is no steel core to corrode. They offer greater resistance to corrosion and are the right choice where soil conditions are very aggressive — for example soil with a high salt content. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

Rods come internally threaded (joined with a coupling dowel) or externally threaded, and the 20 mm × 2540 mm rod is UL listed to UL 467.

At a glance

• Material: 99.9% pure electrolytic copper, solid
• Internally threaded: 15 and 20 mm, 1200 / 1500 mm; 20 mm × 2540 mm (10 ft)

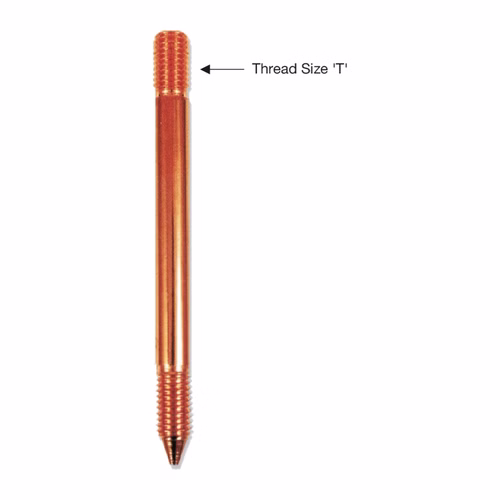

• Externally threaded: 14 mm, 5/8" and 3/4" threads, 1200 and 1500 mm
• UL listed: HSC-1021 (20 mm × 2540 mm), UL 467
• Accessories: driving heads, coupling dowels, driving tips — 15 and 20 mm
• Tested: BS EN 62561-2 on a 16 mm × 1.2 m solid copper rod (SIRIM QAS International, Malaysia)

Why choose a solid copper rod

• Nothing to corrode underneath — the whole rod is copper, so there is no coating to wear through in hostile soil.
• Built for salt and chemicals — HEX recommends solid copper where soil conditions are very aggressive, such as soil with a high salt content.

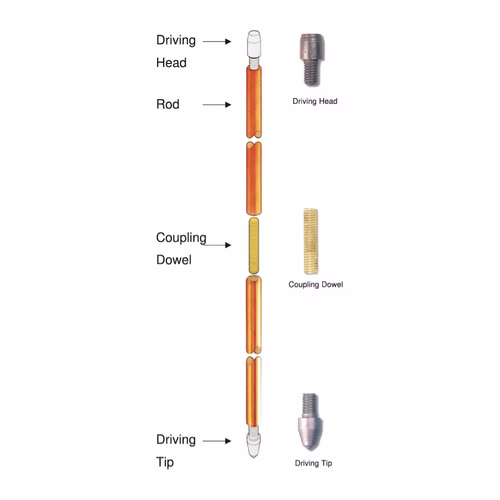

• Extendable — internally threaded rods are joined end to end with coupling dowels to reach low-resistance layers.
• Proper driving kit — a hardened driving head protects the thread while driving and a driving tip eases entry into the ground.

Specifications

• Internally threaded — 15 mm: HSC-512 (1200 mm / 4 ft), HSC-515 (1500 mm / 5 ft)
• Internally threaded — 20 mm: HSC-520 (1200 mm), HSC-521 (1500 mm), HSC-1021 (2540 mm / 10 ft, UL listed to UL 467)
• Externally threaded: thread 14 mm: HBRS-1412 (1200 mm), HBRS-1415 (1500 mm); 5/8": HBRS-112, HBRS-115; 3/4": HBRS-212, HBRS-215
• Driving heads: HDH-15, HDH-20
• Coupling dowels: HCH-15, HCH-20
• Driving tips: HDT-15, HDT-20
• Accessories for externally threaded rods: the same couplers and driving studs as copper-bonded rods
• Other sizes: to customer specification

Where it is used

• Coastal substations and plants with saline soil
• Chemical, fertiliser and petrochemical plants
• Marshy or waterlogged ground
• Critical earthing where the electrode must last the life of the installation

Which earth rod do I need?

• Copper-bonded steel — the everyday choice: steel strength to drive deep, copper surface for low resistance; 25 µm standard, 250–254 µm for long life and UL listing.
• Solid copper (this page) — the most corrosion-resistant, for very aggressive or salty soils.
• Copper-clad steel — a 250 µm copper tube pressed onto a steel core, when a thick, even copper layer is specified.
• Stainless steel — where the rod is buried close to other metals and galvanic corrosion is the concern.

Related products

• HEX copper bonded earth rods
• HEX earth rod clamps, couplers & driving studs
• HEX earth enhancing compounds: TEREC+, EARTHCON, TERRAPRO, TERRAHEX & TERRANITE

Frequently asked questions

When should I use a solid copper earth rod instead of a copper bonded one?

When the soil is very aggressive — for example high salt content — and you want the electrode to resist corrosion for as long as possible.

How are internally threaded solid copper rods joined?

With a coupling dowel (HCH-15 or HCH-20) screwed into the threaded ends of two rods.

Which HEX solid copper rod is UL listed?

HSC-1021, the 20 mm × 2540 mm (10 ft) internally threaded rod, is UL listed to UL 467.

Do I need a driving head?

Yes — fit the driving head (HDH) while hammering so the thread is not damaged, and a driving tip (HDT) on the first rod.

Where can I buy HEX earthing products in India?

From Jai Enterprises, which supplies HEX earthing and lightning-protection material across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the item codes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
