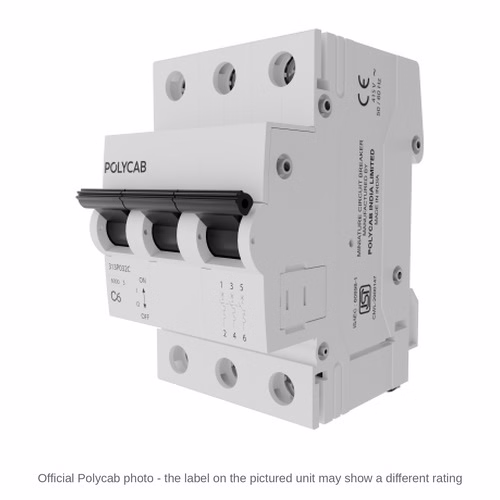

Polycab 6kA C-Curve TP MCB – Triple Pole Miniature Circuit Breaker, 6 A to 32 A, IS/IEC 60898-1

The Polycab 6kA C-Curve TP MCB is a triple pole (3 pole) miniature circuit breaker with a C tripping curve and 6 kA breaking capacity, made to IS/IEC 60898-1 for 240/415 V AC, 50 Hz. Polycab lists it in 6 ratings - 6, 10, 16, 20, 25 and 32 A - at MRP Rs 1,250 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab MCBs from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The load is three-phase without neutral, for example a three-phase motor (triple pole).
• Your load suits a C curve: three-phase pumps, compressors, motors and mixed three-phase loads.
• The prospective short-circuit current where the MCB is fitted does not exceed 6 kA.
• The rating you need is 6, 10, 16, 20, 25 or 32 A - the rating must suit the cable it protects.
• The installation does not call for a 10 kA breaker - for higher fault levels use the 10 kA range.

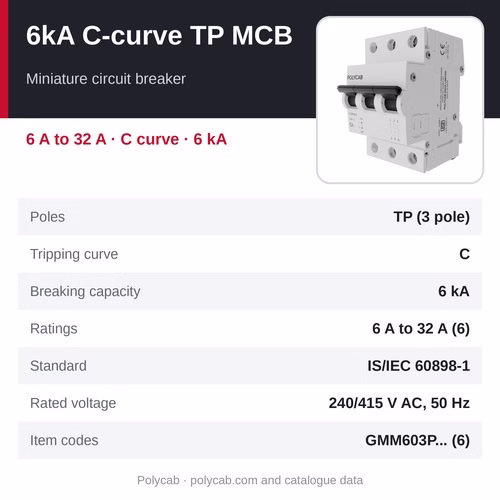

At a glance

• MRP: Rs 1,250 per piece (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab 6kA C-Curve TP MCB
• Type: triple pole MCB, C curve, 6 kA
• Poles: TP - triple pole (3 pole)
• Tripping curve: C
• Breaking capacity: 6 kA
• Ratings: 6, 10, 16, 20, 25 and 32 A
• Item codes: GMM603P001 to GMM603P006
• Standard: IS/IEC 60898-1
• Rated voltage: 240/415 V AC, 50 Hz

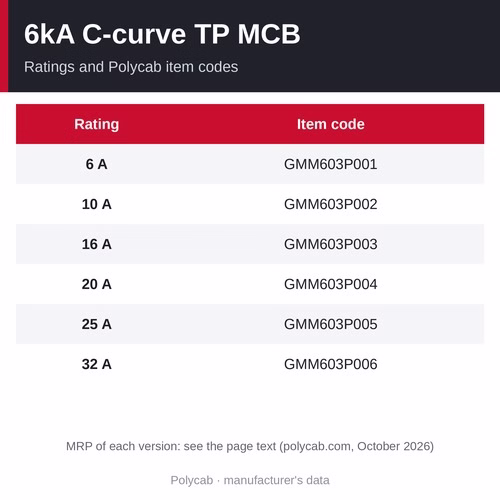

Ratings, item codes and MRP

• 6 A: item code GMM603P001 - MRP Rs 1,250
• 10 A: item code GMM603P002 - MRP Rs 1,250
• 16 A: item code GMM603P003 - MRP Rs 1,250
• 20 A: item code GMM603P004 - MRP Rs 1,250
• 25 A: item code GMM603P005 - MRP Rs 1,250
• 32 A: item code GMM603P006 - MRP Rs 1,250
• MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry

Why choose the Polycab 6kA C-Curve TP MCB

• Finger-proof IP20 terminals
• Air-flow channels to keep the breaker cool
• 13-plate arc chute for quick arc quenching
• Line-load reversibility - it can be fed from the top or the bottom
• Energy limiting class 3 and low power loss, as Polycab's catalogue lists for the 6 kA range
• Polycab item code and MRP for every rating, so the order matches the drawing - GMM603P001 to GMM603P006

How to choose and fit it

Tripping curve. Under IS/IEC 60898-1, a B-curve MCB trips instantly at 3 to 5 times its rated current, a C-curve at 5 to 10 times and a D-curve at 10 to 20 times. This C-curve breaker trips instantly at 5 to 10 times its rating, which suits three-phase loads with a moderate switch-on surge - pumps, compressors, air-handling units, motors and the mixed loads of three-phase sub-boards; it is the most widely used curve.

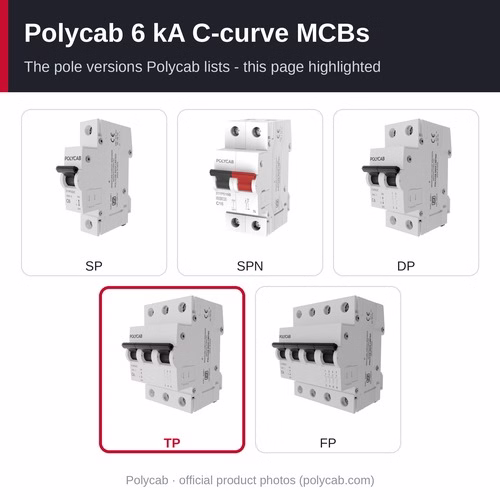

Poles. A triple pole MCB is used for a three-phase load without neutral, such as a three-phase motor or pump. In the 6 kA C-curve range Polycab lists SP, SPN, DP, TP and FP.

Breaking capacity. 6 kA is the largest short-circuit current the breaker can safely interrupt. Choose a breaking capacity at least equal to the prospective fault current where it is fitted - your electrician or consultant checks this at the board.

Rating. Choose a rating above the running current of the load and within the current-carrying capacity of the cable it protects; for motors, also check the starting current against the curve and the motor maker's recommendation.

Mounting. It clips on a standard DIN rail inside a distribution board or MCB enclosure.

Where it is used

• three-phase pumps, compressors, air-handling units and machines without neutral
• three-phase sub-mains without neutral
• homes, flats and small shops

Other Polycab 6 kA MCBs

• Polycab 6kA B-Curve SP MCB - 6 A to 32 A, MRP Rs 210
• Polycab 6kA C-Curve SP MCB - 6 A to 32 A, MRP Rs 210
• Polycab 6kA C-Curve SPN MCB - 6 A to 32 A, MRP Rs 715
• Polycab 6kA C-Curve DP MCB - 6 A to 32 A, MRP Rs 760
• Polycab 6kA C-Curve TP MCB (this page) - 6 A to 32 A, MRP Rs 1,250
• Polycab 6kA C-Curve FP MCB - 32 A to 63 A, MRP Rs 1,650 - 2,400

Related products

• Polycab 10kA C-Curve TP MCB - the same pole and curve in the 10 kA range
• Polycab FP RCCB 30 mA - adds earth-leakage protection, which an MCB does not give
• Polycab TPN double-door distribution board - to house the MCBs
• All Polycab switchgear

Frequently asked questions

What does "C curve" mean on an MCB?

It describes how quickly the breaker trips on a surge. Under IS/IEC 60898-1 a C-curve MCB trips instantly at 5 to 10 times its rated current, which suits three-phase pumps, compressors, motors and mixed three-phase loads. B trips at 3 to 5 times, C at 5 to 10 times and D at 10 to 20 times the rating.

Which pole type do I need?

SP protects one single-phase circuit; SPN switches the neutral together with the phase; DP switches and protects phase and neutral of a single-phase supply; TP is for three-phase loads without neutral; TPN switches the neutral together with the three phases; FP switches all four poles of a three-phase supply with neutral and is the usual incomer of a TPN distribution board. This page is the triple pole (TP) version; in the 6 kA C-curve range Polycab lists SP, SPN, DP, TP and FP.

Should I choose a 10 kA or a 6 kA MCB?

Choose a breaking capacity at least equal to the prospective short-circuit current at the board. 6 kA is common in homes; 10 kA is the safer choice for commercial buildings, boards close to the transformer and industrial supplies. Polycab makes the TP C-curve MCB in both.

Do I still need an RCCB with an MCB?

Yes, for protection against electric shock and earth-leakage fires. An MCB protects against overload and short circuit only; an RCCB (or an RCBO, which combines both) detects current leaking to earth.

What is the MRP of the Polycab 32 A 6kA C-curve TP MCB?

Rs 1,250 per piece, item code GMM603P006 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.

Where can I buy the Polycab 6kA C-Curve TP MCB in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the rating, quantity and delivery location and we will confirm the price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the 6kA C-Curve TP MCB at MRP Rs 1,250 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the rating, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
