Polycab DMX Controllers for Facade Lighting – STICK-CW4, SLESA-U10 / U11, DINA-SR1 / DR1

The Polycab DMX Controllers for Facade Lighting are a range of five RDM-capable DMX512 controllers - from the 512-channel SLESA-U10 to the 3,072-channel DINA controllers (upgradable to 6,144) - with app control and, on the DINA series, DALI, Art-Net, eDMX and pixel outputs.

Polycab lists five models - STICK-CW4, SLESA-U10, SLESA-U11, DINA-SR1 and DINA-DR1. They are supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab facade lighting controls from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The controller has enough DMX channels for your fittings - for example, 100 RGBW fittings at 4 channels each need 400 channels: one universe, but at about 32 fittings per line they also need four DMX lines, for example from a DMX splitter.
• It has the zones and scenes the project needs.
• Its outputs match the installation - XLR3, RJ45, DALI, Art-Net / eDMX or pixel outputs.
• A Wi-Fi router is available on site for app or remote access - every model except the SLESA-U10, which has built-in Wi-Fi, needs one.

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab DMX Controllers for Facade Lighting
• Type: DMX controller
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), "Control System & Accessories" spread

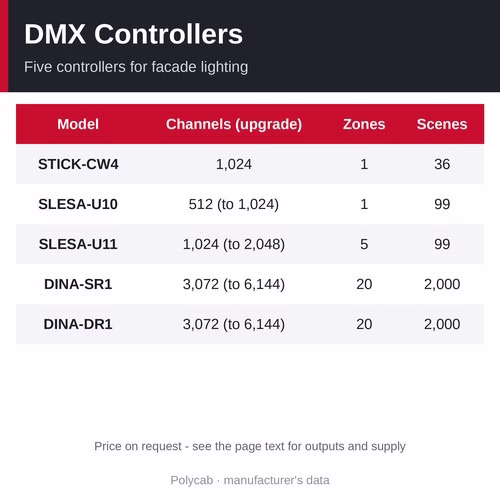

Models and specifications

• STICK-CW4: 1,024 DMX channels (not upgradable), 36 scenes, 1 zone, stand-alone memory printed as "100k" (no unit is given), 5 to 15 V DC through a screw terminal / RJ45, two DMX outputs (3-pin and RJ45), app control over Wi-Fi through a router, glass touch panel with colour palette, touch buttons and touch wheel - price on request
• SLESA-U10: 512 DMX channels, upgradable to 1,024, 99 scenes, 1 zone, stand-alone memory printed as "100k" (no unit is given), 5 to 5.5 V DC through USB Type-C, built-in Wi-Fi for app control, two XLR3 DMX outputs - price on request
• SLESA-U11: 1,024 DMX channels, upgradable to 2,048, 99 scenes, 5 zones with 10 direct scene buttons, micro SD card up to 4 GB, 5 to 5.5 V DC through USB Type-C, app control over Wi-Fi through a router, four XLR3 DMX outputs - price on request
• DINA-SR1: 3,072 DMX channels, upgradable to 6,144, 2,000 scenes, 20 zones, DALI, Art-Net, eDMX and pixel outputs, 16 MB built-in memory plus micro SD card up to 4 GB, 8 to 15 V DC through USB (as printed by Polycab - do not use an ordinary 5 V USB charger; we confirm the power adaptor with your order), six XLR3 DMX outputs and a 3.5 mm audio jack (the only connectors Polycab names for the SR1 - we confirm how DALI, pixel and Art-Net / eDMX connect), app control over Wi-Fi through a router, cloud compatible, suits home automation - price on request
• DINA-DR1: 3,072 DMX channels, upgradable to 6,144, 2,000 scenes, 20 zones, relay, DALI, Art-Net, eDMX and pixel outputs, 16 MB built-in memory plus micro SD card up to 4 GB, 8 to 15 V DC through a screw terminal, 6 DMX, 1 audio, 2 pixel and 2 DALI outputs on screw connectors (no network port is listed for Art-Net / eDMX - we confirm the connection), app control over Wi-Fi through a router, cloud compatible, suits home automation - price on request
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), "Control System & Accessories" spread

Why choose the Polycab DMX Controllers for Facade Lighting

• RDM-capable DMX512 controllers, controlled from a mobile app
• From 512 to 3,072 channels, upgradable on most models
• Up to 2,000 scenes and 20 zones (DINA series)
• DALI, Art-Net, eDMX and pixel outputs on the DINA series
• Cloud compatible, and suitable for home automation (DINA series)

How to choose and fit it

Channels. Count the DMX channels: an RGB fitting usually takes 3 channels and an RGBW fitting 4 (per pixel or segment for pixel fittings). Pick a controller with enough channels, plus room to grow. Each DMX output carries one universe of up to 512 channels, so plan the fittings per output as well as in total; a splitter repeats an output, it does not add channels.

Zones and scenes. SLESA-U11 gives 5 zones with 10 direct scene buttons; the DINA models give 20 zones and up to 2,000 scenes for large facades.

Outputs. Polycab lists DALI, Art-Net, eDMX and pixel outputs for both DINA models, but names 2 DALI and 2 pixel screw outputs only on the DINA-DR1 (for the DINA-SR1 it names six XLR3 DMX outputs and an audio jack) and no network port for Art-Net / eDMX on either. If you need DALI, pixel or network control, tell us and we will confirm how the fittings connect before you order.

Networking. Daisy-chain the fittings without Y-splits, keep each DMX line to about 32 fittings and about 300 m long (use a DMX splitter beyond that or to branch), use shielded DMX cable and fit a 120-ohm terminator at the end of each line. If you will address or monitor the fittings over RDM, every splitter in the line must pass RDM - tell us and we will confirm.

Design. Send us the facade layout and the number and type of fittings, and we will propose the controller and wiring. Install the controller indoors or in a weatherproof, ventilated panel.

Where it is used

• Building facades
• Monuments and bridges
• Hotels and commercial exteriors
• Home automation (DINA series)

Other Polycab facade lighting series

• Polycab DMX Controllers for Facade Lighting - DMX controller, price on request (this page)
• Polycab Indiray Pro Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Deep Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Plus Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Soft Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray LED Focus Light - LED focus light, price on request
• Polycab Indiray Round LED Flood Light - round LED flood light, price on request
• Polycab Indiray Modular LED Flood Light - modular LED flood light, price on request
• Polycab Indiray LED Spot Facade Light - LED spot facade light, price on request
• Polycab LED Facade Up Lighter - LED facade up lighter, price on request
• Polycab Linear LED Ground Burial Light - LED ground burial light, price on request
• Polycab Round LED Ground Burial Light - LED ground burial light, price on request
• Polycab DMX Splitter and Facade Lighting Accessories - DMX splitter, price on request

Related products

• Polycab LED Neon Flex for Facade Lighting - LED neon flex, price on request
• Polycab Flexible LED Wall Washer - flexible LED wall washer, price on request

Frequently asked questions

What is the price of the Polycab DMX Controllers for Facade Lighting?

Polycab does not publish an MRP for its professional lighting range, so the DMX Controllers are supplied at a price on request. Call +91 9340081159 with the model, for example DINA-SR1, the quantity and the delivery location for a quotation.

Which controller do I need?

Count the DMX channels your fittings need and the zones and scenes you want: STICK-CW4 and SLESA-U10 suit small projects, SLESA-U11 medium ones with 5 zones, and the DINA-SR1 / DINA-DR1 large projects with 20 zones and up to 2,000 scenes. Polycab lists DALI, Art-Net, eDMX and pixel outputs for the DINA models; we confirm how they connect (see Outputs above).

Do they need Wi-Fi?

A Wi-Fi router is needed for app or remote access on every model except the SLESA-U10, which has built-in Wi-Fi. Scenes are stored in the controller's own memory or SD card.

Where can I buy the Polycab DMX Controllers for Facade Lighting in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab facade lighting controls all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The DMX Controllers are supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example DINA-SR1), the quantity and the delivery location, and we will confirm the price, availability and lead time.
