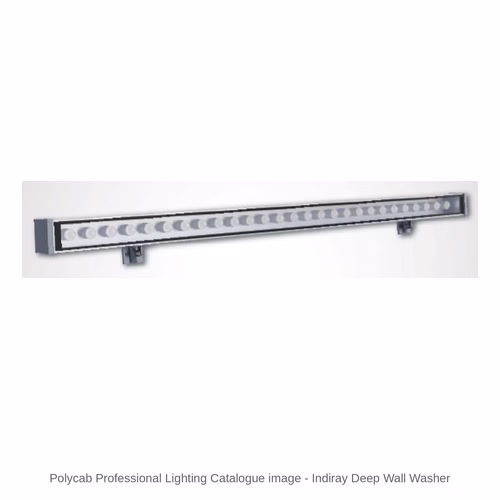

Polycab Indiray Deep Linear Wall Washer – White / RGB / RGBW, DMX512, IP66

The Polycab Indiray Deep Linear Wall Washer is a linear LED wall washer with precision lens optics for controlled, low-glare facade lighting and asymmetric wall-washing that brings out textures.

Polycab lists it in lengths of 300, 600 and 1,000 mm, with beam options of 9°, 25°, 30 x 15° and 40°, in white from 2700 to 6500 K, RGB or RGBW, for 24 V DC or 240 V AC, with DMX512 or ON-OFF control, IP66, IK08 and an LED life of more than 50,000 hours. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab facade lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• You need lengths of 300, 600 or 1,000 mm - longer runs are made by mounting fittings end to end (ask us how many can run from one supply and data line).
• The supply suits the version - 24 V DC (with a separate driver) or 240 V AC.
• The colour suits the design - white from 2700 to 6500 K, RGB or RGBW (Polycab also lists dynamic white).
• The control suits the project - DMX512 (with a DMX controller) for colours, scenes and effects, or simple ON-OFF.
• It will be outdoors on the facade - it is rated IP66 and IK08.

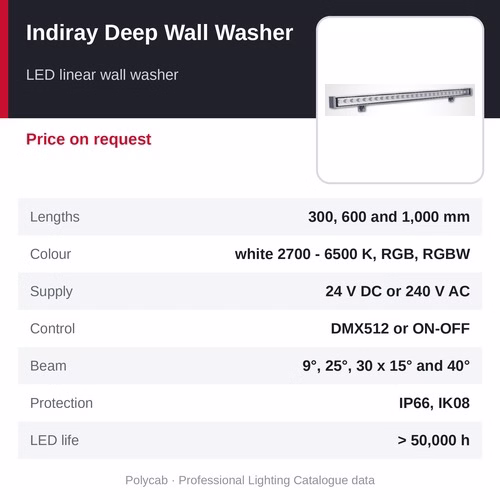

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Indiray Deep Linear Wall Washer
• Type: LED linear wall washer
• Lengths: 300, 600 and 1,000 mm
• Colour: white from 2700 to 6500 K, RGB or RGBW (Polycab also lists dynamic white)
• Supply: 24 V DC or 240 V AC versions
• Control: DMX512 or ON-OFF
• Protection: IP66, IK08
• Rated life: more than 50,000 hours (LED)
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 133-134

Specifications

• Beam: 9°, 25°, 30 x 15° and 40° (catalogue beam diagrams)
• Wattage and lumen output: not published by Polycab for each length - we confirm them with the quotation
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 133-134

Why choose the Polycab Indiray Deep Linear Wall Washer

• Precision lens optics for better light control, less glare and better uniformity
• Asymmetric wall-washing effects that bring out textures and structures
• Sleek, minimal design that complements the building
• RGB, RGBW and dynamic white versions for different moods and applications
• Shapes, sizes and finishes can be customised for projects
• 24 V DC or 240 V AC versions; DMX512 or ON-OFF control; IP66 and IK08; LED life of more than 50,000 hours

How to choose and fit it

Choosing between the Indiray wall washers. Pro - a silver bar with a row of round lenses, which Polycab describes as designed to wash walls with a wide beam; Plus - a slim black body with square lens modules, for focused light with little spill; Soft - a frosted diffuser for a continuous, dot-free line of light; this page is the Deep - lenses set in a recessed channel, for controlled, low-glare light. Polycab lists asymmetric wall-washing for the Deep and Plus; we confirm the optic with the order. All four share the same lengths (300, 600 and 1,000 mm), beam diagrams (9°, 25°, 30 x 15° and 40°), colours, supply options, control and IP66 / IK08.

Beam. Polycab shows beam options of 9°, 25°, 30 x 15° and 40°: narrow beams carry the light further up a tall wall, wider beams cover more of the wall from close by, and the oval 30 x 15° beam is normally set with its wide axis along the wall, spreading light sideways with less spill - confirm the orientation with us. Polycab prints no asymmetric beam diagram - the only non-round beam it shows is the oval 30 x 15° - so if you need an asymmetric optic, tell us and we will check it with Polycab.

Control and wiring. Each DMX512 fitting is given a start address and uses one or more DMX channels - typically 1 for single white, 2 for dynamic white, 3 for RGB and 4 for RGBW, more if segments are controlled separately. The fittings are run from a DMX controller, which sets colours, scenes and dynamic effects. A DMX line (one universe) carries up to 512 channels and typically up to 32 fittings over about 300 m, whichever limit comes first: daisy-chain the fittings on shielded DMX cable (no Y-splits) and fit a 120-ohm terminator at the end of each line. For more fittings, longer runs or branches use a DMX splitter, which repeats the same channels on every output; for more channels use another controller output. ON-OFF versions switch like normal lights. 24 V DC versions need LED drivers sized for the connected load and placed close to the fittings, because long 24 V cable runs lose voltage. Feed the drivers, like the 240 V AC versions, from an earthed circuit protected by a 30 mA RCD.

Design. Facade lighting is planned building by building - send us elevations or photographs and the effect you want, and we will propose the fittings, beam angles, colours and control. A qualified electrician should install and connect the fittings, with the supply isolated.

Where it is used

• Building facades
• Bridges and monuments
• Urban landscapes and public spaces
• Commercial and hospitality exteriors

Other Polycab facade lighting series

• Polycab Indiray Pro Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Deep Linear Wall Washer - LED linear wall washer, price on request (this page)
• Polycab Indiray Plus Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Soft Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray LED Focus Light - LED focus light, price on request
• Polycab Indiray Round LED Flood Light - round LED flood light, price on request
• Polycab Indiray Modular LED Flood Light - modular LED flood light, price on request
• Polycab Indiray LED Spot Facade Light - LED spot facade light, price on request
• Polycab LED Facade Up Lighter - LED facade up lighter, price on request
• Polycab Linear LED Ground Burial Light - LED ground burial light, price on request
• Polycab Round LED Ground Burial Light - LED ground burial light, price on request
• Polycab DMX Controllers for Facade Lighting - DMX controller, price on request
• Polycab DMX Splitter and Facade Lighting Accessories - DMX splitter, price on request

Related products

• Polycab LED Neon Flex for Facade Lighting - LED neon flex, price on request
• Polycab Flexible LED Wall Washer - flexible LED wall washer, price on request
• Polycab Classic Design LED Post Top Lantern (45 W) - LED post top lantern, price on request
• Polycab Estable LED Flood Light - LED flood light, 80 to 400 W, price on request
• Polycab 120 LED Rope Light - LED rope light, 20 m and 45 m rolls, 3000 / 4000 / 6500 K + 6 colours

Frequently asked questions

What is the price of the Polycab Indiray Deep Linear Wall Washer?

Polycab does not publish an MRP for its professional lighting range, so the Indiray Deep Wall Washer is supplied at a price on request. Call +91 9340081159 with the length, beam angle, colour, supply voltage and control type, the quantity and the delivery location for a quotation.

What is the difference between RGB and RGBW?

RGB mixes red, green and blue for colours; RGBW adds a white LED, so it can give a clean white as well as pastel colours.

Do I need a DMX controller?

Yes, for the DMX512 versions - a DMX controller (or the building's DMX system) sets their colours, scenes and effects; see the Polycab DMX controllers. ON-OFF versions switch like normal lights.

Which lengths are available?

300, 600 and 1,000 mm; longer runs are made by mounting several fittings end to end - we confirm the wiring and run lengths.

Where can I buy the Polycab Indiray Deep Linear Wall Washer in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab facade lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the length, beam angle, colour, supply voltage and control type, the quantity and the delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Indiray Deep Wall Washer is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the length, beam angle, colour, supply voltage and control type, the quantity and the delivery location, and we will confirm the price, availability and lead time.
