Polycab LED Facade Up Lighter – White / RGB / RGBW, DMX512, IP66

The Polycab LED Facade Up Lighter throws light upwards to bring out walls, columns, entrances and textures on buildings and landmarks.

Polycab lists it with an adjustable spread from spot to flood, in white from 2700 to 6500 K, RGB or RGBW, for 24 V DC or 240 V AC, with DMX512 or ON-OFF control, IP66, IK08 and an LED life of more than 50,000 hours. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab facade lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The supply suits the version - 24 V DC (with a separate driver) or 240 V AC.
• The colour suits the design - white from 2700 to 6500 K, RGB or RGBW.
• The control suits the project - DMX512 (with a DMX controller) for colours, scenes and effects, or simple ON-OFF.
• It will be outdoors - it is rated IP66 and IK08.
• The beam suits the target - an adjustable spread from spot to flood.

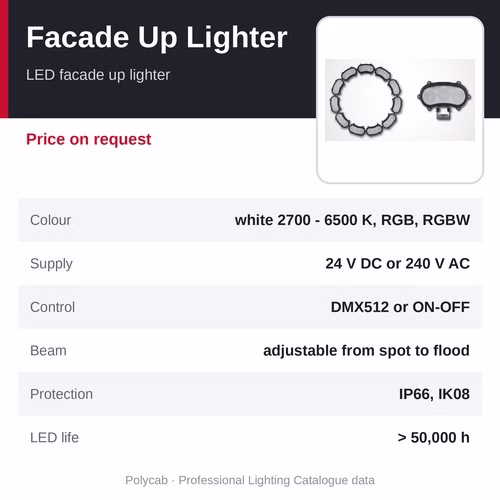

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab LED Facade Up Lighter
• Type: LED facade up lighter
• Colour: white from 2700 to 6500 K, RGB or RGBW
• Supply: 24 V DC or 240 V AC versions
• Control: DMX512 or ON-OFF
• Protection: IP66, IK08
• Rated life: more than 50,000 hours (LED)
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 147-148

Specifications

• Beam: adjustable from spot to flood
• Wattage and lumen output: not published by Polycab - we confirm them with the quotation
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 147-148

Why choose the Polycab LED Facade Up Lighter

• Upward light projection that adds depth to facades
• Multi-layer lens system for more even light with fewer hotspots
• Adjustable spread to switch between spot and flood
• Low-glare projection with premium optical lenses (Polycab calls it glare-free)
• Polycab describes it as dark-sky compliant - aim and set the spread so the light stays on the facade, with no spill above the roofline
• White from 2700 to 6500 K, RGB or RGBW versions
• 24 V DC or 240 V AC versions; DMX512 or ON-OFF control; IP66 and IK08; LED life of more than 50,000 hours

How to choose and fit it

Aiming. Place the up lighter at the base of the wall or column and set the spread - spot for a tall narrow column, flood for a wide wall - so the light stays on the facade. Polycab's picture also shows up lighters set in a ring; ask us about ring sets for columns.

Siting. Mount it clear of standing water - IP66 protects against water jets, not immersion.

Control and wiring. Each DMX512 fitting is given a start address and uses one or more DMX channels - typically 1 for single white, 3 for RGB and 4 for RGBW, more if segments are controlled separately. The fittings are run from a DMX controller, which sets colours, scenes and dynamic effects. A DMX line (one universe) carries up to 512 channels and typically up to 32 fittings over about 300 m, whichever limit comes first: daisy-chain the fittings on shielded DMX cable (no Y-splits) and fit a 120-ohm terminator at the end of each line. For more fittings, longer runs or branches use a DMX splitter, which repeats the same channels on every output; for more channels use another controller output. ON-OFF versions switch like normal lights. 24 V DC versions need LED drivers sized for the connected load and placed close to the fittings, because long 24 V cable runs lose voltage. Feed the drivers, like the 240 V AC versions, from an earthed circuit protected by a 30 mA RCD.

Design. Facade lighting is planned building by building - send us elevations or photographs and the effect you want, and we will propose the fittings, beam angles, colours and control. A qualified electrician should install and connect the fittings, with the supply isolated.

Where it is used

• Building facades
• Bridges and monuments
• Railway stations and airports
• Commercial and hospitality exteriors
• Museums and galleries
• Urban landscapes and public spaces

Other Polycab facade lighting series

• Polycab Indiray LED Focus Light - LED focus light, price on request
• Polycab Indiray Round LED Flood Light - round LED flood light, price on request
• Polycab Indiray Modular LED Flood Light - modular LED flood light, price on request
• Polycab Indiray LED Spot Facade Light - LED spot facade light, price on request
• Polycab LED Facade Up Lighter - LED facade up lighter, price on request (this page)
• Polycab Indiray Pro Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Deep Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Plus Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Soft Linear Wall Washer - LED linear wall washer, price on request
• Polycab Linear LED Ground Burial Light - LED ground burial light, price on request
• Polycab Round LED Ground Burial Light - LED ground burial light, price on request
• Polycab DMX Controllers for Facade Lighting - DMX controller, price on request
• Polycab DMX Splitter and Facade Lighting Accessories - DMX splitter, price on request

Related products

• Polycab LED Neon Flex for Facade Lighting - LED neon flex, price on request
• Polycab Flexible LED Wall Washer - flexible LED wall washer, price on request
• Polycab Classic Design LED Post Top Lantern (45 W) - LED post top lantern, price on request
• Polycab Estable LED Flood Light - LED flood light, 80 to 400 W, price on request
• Polycab 120 LED Rope Light - LED rope light, 20 m and 45 m rolls, 3000 / 4000 / 6500 K + 6 colours

Frequently asked questions

What is the price of the Polycab LED Facade Up Lighter?

Polycab does not publish an MRP for its professional lighting range, so the Facade Up Lighter is supplied at a price on request. Call +91 9340081159 with your choice of single units or ring sets (for a ring, the column diameter), the colour, supply voltage and control type, the quantity and the delivery location for a quotation.

Which beam angles are available?

Polycab publishes no beam angles for the up lighter; its spread can be adjusted from spot to flood.

Do I need a DMX controller?

Yes, for the DMX512 versions - a DMX controller (or the building's DMX system) sets their colours, scenes and effects; see the Polycab DMX controllers. ON-OFF versions switch like normal lights.

Where can I buy the Polycab LED Facade Up Lighter in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab facade lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with your choice of single units or ring sets (for a ring, the column diameter), the colour, supply voltage and control type, the quantity and the delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Facade Up Lighter is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with your choice of single units or ring sets (for a ring, the column diameter), the colour, supply voltage and control type, the quantity and the delivery location, and we will confirm the price, availability and lead time.
