Polycab Linear LED Ground Burial Light – White / RGB / RGBW, DMX512, IP66

The Polycab Linear LED Ground Burial Light sits flush in paving to graze walls, mark paths and light facades from below, with a walkable, anti-slip top.

Polycab lists it in white from 2700 to 6500 K, RGB or RGBW, for 24 V DC or 240 V AC, with DMX512 or ON-OFF control, asymmetric and symmetric beams, IP66, IK08 and an LED life of more than 50,000 hours. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab facade lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The supply suits the version - 24 V DC (with a separate driver) or 240 V AC.
• The colour suits the design - white from 2700 to 6500 K, RGB or RGBW (Polycab also lists dynamic white).
• The control suits the project - DMX512 (with a DMX controller) for colours, scenes and effects, or simple ON-OFF.
• The ground drains well - the fitting is rated IP66 (water jets), so water must not stand over it.
• The traffic over it suits the fitting - Polycab describes it as suitable for pedestrian and vehicle traffic but publishes no load rating, so tell us where it will go.

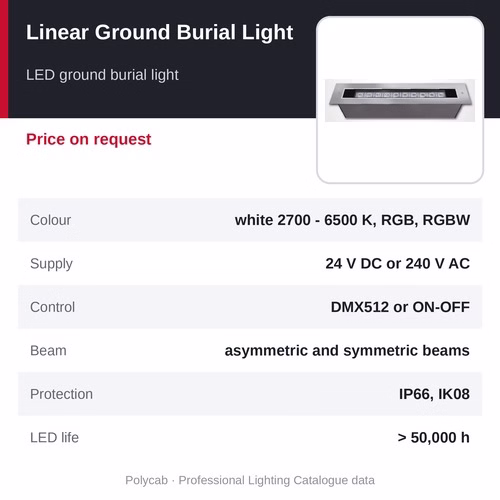

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Linear LED Ground Burial Light
• Type: LED ground burial light
• Colour: white from 2700 to 6500 K, RGB or RGBW (Polycab also lists dynamic white)
• Supply: 24 V DC or 240 V AC versions
• Control: DMX512 or ON-OFF
• Protection: IP66, IK08
• Rated life: more than 50,000 hours (LED)
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 153-154

Specifications

• Beam: asymmetric and symmetric beams
• Length and wattage: not published by Polycab - we confirm the sizes available
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 153-154

Why choose the Polycab Linear LED Ground Burial Light

• Robust, durable construction
• Anti-slip, walkable surface - Polycab describes it as safe for pedestrian and vehicular traffic
• Modular design for continuous lines of light
• Asymmetric and symmetric beams for different effects
• Low-glare optics with premium lenses (Polycab calls them glare-free); next to a wall, an asymmetric beam aimed at the wall helps keep the light out of people's eyes
• RGB, RGBW and dynamic white versions for different moods and applications
• 24 V DC or 240 V AC versions; DMX512 or ON-OFF control; IP66 and IK08; LED life of more than 50,000 hours

How to choose and fit it

Installation. Set the fitting flush in a drained base (for example a gravel bed below the housing) so rainwater does not stand on it, and make the cable joint watertight; Polycab rates it IP66. Isolate the supply before work; a qualified electrician should install it.

Traffic. Polycab describes it as walkable and suitable for pedestrian and vehicle traffic, but publishes no load rating (IK08 is an impact rating) - tell us where it will go (footpath, driveway, car park or truck route) and we will confirm the load it can take.

Control and wiring. Each DMX512 fitting is given a start address and uses one or more DMX channels - typically 1 for single white, 2 for dynamic white, 3 for RGB and 4 for RGBW, more if segments are controlled separately. The fittings are run from a DMX controller, which sets colours, scenes and dynamic effects. A DMX line (one universe) carries up to 512 channels and typically up to 32 fittings over about 300 m, whichever limit comes first: daisy-chain the fittings on shielded DMX cable (no Y-splits) and fit a 120-ohm terminator at the end of each line. For more fittings, longer runs or branches use a DMX splitter, which repeats the same channels on every output; for more channels use another controller output. ON-OFF versions switch like normal lights. 24 V DC versions need LED drivers sized for the connected load and placed close to the fittings, because long 24 V cable runs lose voltage. Feed the drivers and the 240 V AC versions from an earthed circuit protected by a 30 mA RCD (RCCB); where people walk over in-ground fittings, choose the 24 V DC version, fed from a SELV (safety-isolating) LED driver.

Design. Facade lighting is planned building by building - send us elevations or photographs and the effect you want, and we will propose the fittings, beam angles, colours and control.

Where it is used

• Building facades
• Urban landscapes and public spaces
• Bridges and monuments
• Railways
• Commercial and hospitality exteriors
• Museums and galleries

Other Polycab facade lighting series

• Polycab Linear LED Ground Burial Light - LED ground burial light, price on request (this page)
• Polycab Round LED Ground Burial Light - LED ground burial light, price on request
• Polycab Indiray Pro Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Deep Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Plus Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray Soft Linear Wall Washer - LED linear wall washer, price on request
• Polycab Indiray LED Focus Light - LED focus light, price on request
• Polycab Indiray Round LED Flood Light - round LED flood light, price on request

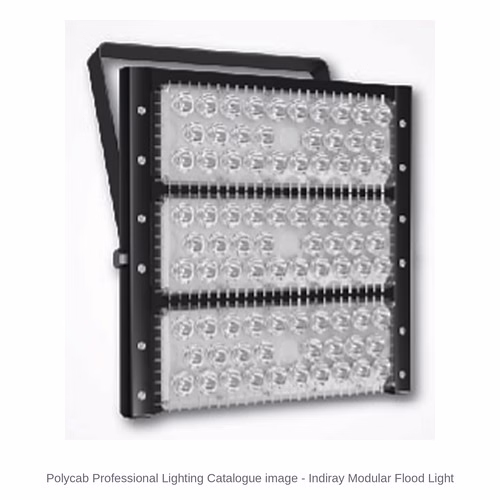

• Polycab Indiray Modular LED Flood Light - modular LED flood light, price on request
• Polycab Indiray LED Spot Facade Light - LED spot facade light, price on request
• Polycab LED Facade Up Lighter - LED facade up lighter, price on request
• Polycab DMX Controllers for Facade Lighting - DMX controller, price on request
• Polycab DMX Splitter and Facade Lighting Accessories - DMX splitter, price on request

Related products

• Polycab LED Neon Flex for Facade Lighting - LED neon flex, price on request
• Polycab Flexible LED Wall Washer - flexible LED wall washer, price on request
• Polycab Classic Design LED Post Top Lantern (45 W) - LED post top lantern, price on request
• Polycab Estable LED Flood Light - LED flood light, 80 to 400 W, price on request
• Polycab 120 LED Rope Light - LED rope light, 20 m and 45 m rolls, 3000 / 4000 / 6500 K + 6 colours

Frequently asked questions

What is the price of the Polycab Linear LED Ground Burial Light?

Polycab does not publish an MRP for its professional lighting range, so the Linear Ground Burial Light is supplied at a price on request. Call +91 9340081159 with the length of each run (or the number of separate fittings), where it will be installed (footpath, driveway, car park or truck route), the beam (asymmetric or symmetric), colour, supply voltage and control type, and the delivery location for a quotation.

Can people walk or drive over it?

Polycab describes it as walkable and suitable for pedestrian and vehicle traffic. No load rating is published, so tell us where it will go (footpath, driveway, car park or truck route) and we will confirm the load it can take.

Does it need drainage?

Yes. It is rated IP66 (protected against water jets), so prepare a drained base and keep water from standing over the fitting.

Do I need a DMX controller?

Yes, for the DMX512 versions - a DMX controller (or the building's DMX system) sets their colours, scenes and effects; see the Polycab DMX controllers. ON-OFF versions switch like normal lights.

Where can I buy the Polycab Linear LED Ground Burial Light in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab facade lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the length of each run (or the number of separate fittings), where it will be installed (footpath, driveway, car park or truck route), the beam (asymmetric or symmetric), colour, supply voltage and control type, and the delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Linear Ground Burial Light is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the length of each run (or the number of separate fittings), where it will be installed (footpath, driveway, car park or truck route), the beam (asymmetric or symmetric), colour, supply voltage and control type, and the delivery location, and we will confirm the price, availability and lead time.
