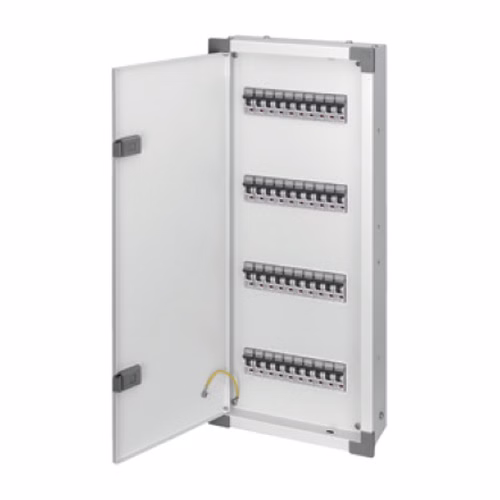

Polycab Flexi Tier Distribution Board – 2, 3 and 4 Tier (24 to 56 Modules), Double Door IP42

The Polycab Flexi Tier Distribution Board is a three-phase double-door distribution board, IP42, in which the incomer and outgoing devices of any type and size can be arranged tier by tier to suit the installation. Polycab lists it in 4 versions - 2, 3 and 4 tiers (24 to 56 modules) - at MRP Rs 4,804 to Rs 8,882 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab distribution boards from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• You want to arrange incomers and outgoings of different types and sizes freely, tier by tier.
• The supply is three phase with neutral.
• You have counted the circuits you need now, plus a few spare ways for later.
• IP42 suits the location - indoors, with protection against dripping water.

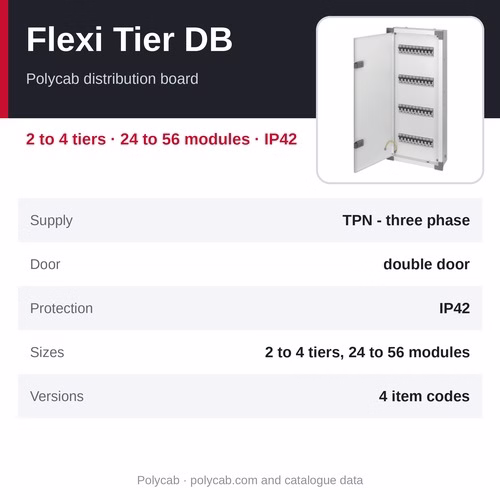

At a glance

• MRP: Rs 4,804 - 8,882 per piece (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab Flexi Tier Distribution Board
• Supply: TPN - three phase and neutral
• Door: double door
• Protection: IP42 - protected against objects over 1 mm and against dripping water
• Sizes: 2, 3 and 4 tiers (24 to 56 modules)
• Devices: incomer and outgoing devices of any type and size, arranged tier by tier
• Finish: grey white, RAL 9003 fine white texture
• Item codes: GPDTN20052 to GPDTN20055

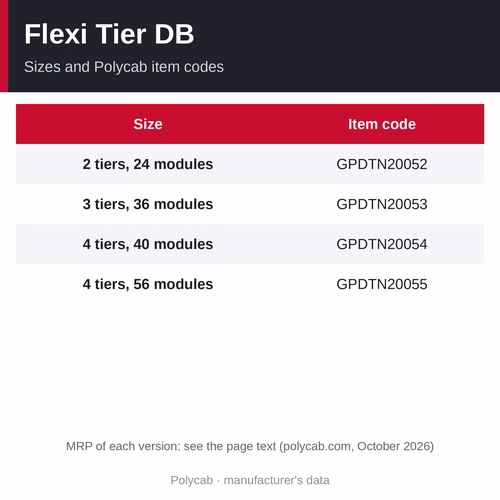

Sizes, item codes and MRP

• 2 tiers, 24 modules: item code GPDTN20052 - MRP Rs 4,804
• 3 tiers, 36 modules: item code GPDTN20053 - MRP Rs 6,308
• 4 tiers, 40 modules: item code GPDTN20054 - MRP Rs 7,892
• 4 tiers, 56 modules: item code GPDTN20055 - MRP Rs 8,882
• MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry
• Note: Polycab lists two 4-tier sizes, 40 and 56 modules; ask us for the layout of each before you order

Why choose the Polycab Flexi Tier Distribution Board

• IP42 protection
• Detachable gland plates
• Earthing bolt with door earthing
• Insulated busbar
• Insertion marks for fitting the devices
• Flush or surface mounting
• Neutral bar and earth bar fitted
• Polycab item code and MRP for every version - GPDTN20052 to GPDTN20055

How to choose and fit it

What Flexi Tier means. The board is built in tiers of modules, and the incomer and outgoing devices - of any type and size - are arranged to suit the load. Polycab lists 2 tiers with 24 modules, 3 tiers with 36 modules and 4 tiers with 40 or 56 modules.

Choosing the size. Add up the modules of the devices you plan to fit - for example a four-pole MCB and RCCB take 8 modules - and leave spare space for later.

Devices. Polycab lists the MCBs, RCCBs and isolators that go inside separately - see the related products below.

Protection. IP42 - protected against objects over 1 mm and against dripping water. Install it indoors, out of direct rain.

Mounting. It can be flush-mounted in the wall or surface-mounted; the detachable gland plates, with knockouts, take the incoming and outgoing cables.

Where it is used

• homes, offices and shops with a three-phase supply
• factories, workshops, hospitals and schools
• main and sub-distribution in buildings

Special-purpose Polycab distribution boards

• Polycab TPN PPI Horizontal Distribution Board - 4 versions, MRP Rs 7,029 - 13,063
• Polycab TPN PPI Vertical Distribution Board - 4 versions, MRP Rs 6,786 - 17,862
• Polycab TPN 7-Segment Distribution Board - 4 versions, MRP Rs 11,269 - 18,927
• Polycab TPN 8-Segment Distribution Board - 4 versions, MRP Rs 11,530 - 19,366
• Polycab Flexi Tier Distribution Board (this page) - 4 versions, MRP Rs 4,804 - 8,882
• Polycab TPN Phase Selector Distribution Board (Vertical) - 6 versions, MRP Rs 13,639 - 17,150
• Polycab SPN TV-Tel Distribution Board - 4 versions, MRP Rs 5,167 - 7,209
• Polycab TPN TV-Tel Distribution Board - 4 versions, MRP Rs 9,524 - 12,926

Related products

• Polycab SPN Single Door Distribution Board - its page lists all the standard Polycab distribution boards
• Polycab Decour SPN Distribution Board - its page lists all the Polycab designer and consumer distribution boards
• Polycab Plug and Socket Distribution Board - its page lists all the Polycab MCB enclosures and plug-and-socket DBs
• Polycab 10kA C-Curve SP MCB - outgoing MCBs
• Polycab 10kA C-Curve FP MCB - incomer
• Polycab FP RCCB 30 mA - earth-leakage protection
• All Polycab switchgear

Frequently asked questions

What does IP42 mean?

IP42 means the enclosure is protected against objects over 1 mm and against dripping water (IEC 60529 degrees of protection). It suits indoor locations.

What is a Flexi Tier distribution board?

A board in which the incomer and outgoing devices of any type and size can be arranged as the load needs. Polycab makes it in 2, 3 and 4 tiers, from 24 to 56 modules.

What is the MRP of the Polycab Flexi Tier Distribution Board, 2 tiers, 24 modules?

Rs 4,804 per piece, item code GPDTN20052 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.

Where can I buy the Polycab Flexi Tier Distribution Board in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the Flexi Tier Distribution Board at MRP Rs 4,804 - 8,882 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the size, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
