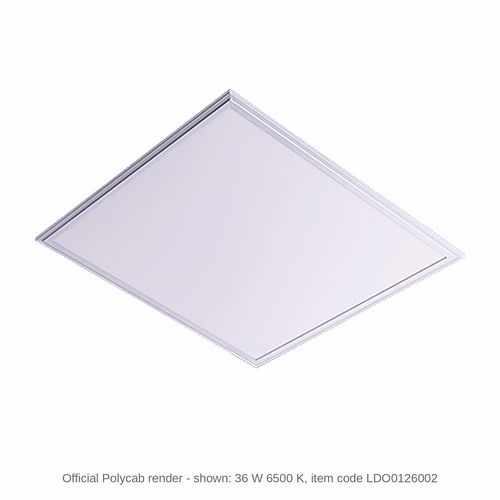

Polycab Deep Drawn 2x2 LED Panel – 36 W, square, recessed, 3000 / 4000 / 5700 / 6500 K

The Polycab Deep Drawn 2x2 LED Panel is a 600 x 600 mm (2 ft x 2 ft) LED panel that drops into the grid of a modular (Armstrong) false ceiling in place of one tile. A CRCA-body panel with an external driver and a 100 lm/W output; Polycab lists it in four colour temperatures.

Polycab lists it in 4 variants - 36 W, 3000 K warm white, 4000 K neutral white, 5700 K cool white and 6500 K cool white - at MRP Rs 3,499 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its lighting range covers LED bulbs, battens, panel lights, downlights, COB spot and track lights, street and flood lights, gate lights, bulkheads and rope and strip lights. Jai Enterprises supplies Polycab 2x2 LED panels from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these three things before you order:

• Your ceiling is a 600 x 600 mm modular grid (or you will use a recess / surface frame).
• The location is indoors and dry (the fitting is for indoor use).
• The colour you want is 3000 K warm white, 4000 K neutral white, 5700 K cool white or 6500 K cool white - warm white for a relaxed look; neutral white for offices and shops; 5700 K cool white for a crisp white; cool white for task and work areas.

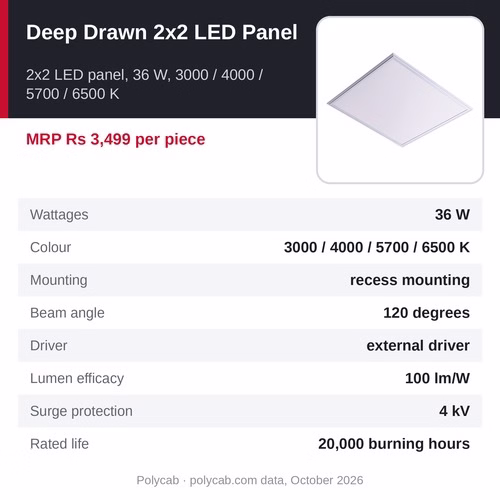

At a glance

• MRP: Rs 3,499 per piece (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab Deep Drawn 2x2 LED Panel
• Type: 2x2 LED panel
• Wattages: 36 W

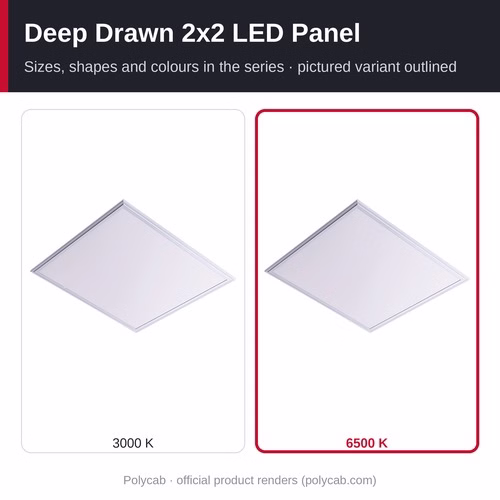

• Colour / colour temperature: 3000 K warm white, 4000 K neutral white, 5700 K cool white and 6500 K cool white
• Mounting: recess mounting
• Beam angle: 120 degrees
• Driver: external driver
• Lumen efficacy: 100 lm/W
• Surge protection: 4 kV
• Colour rendering: CRI > 80
• Power factor: > 0.9
• Rated life: 20,000 burning hours
• Item codes: LDO0126002 and LDO0126015
• Variants: 4

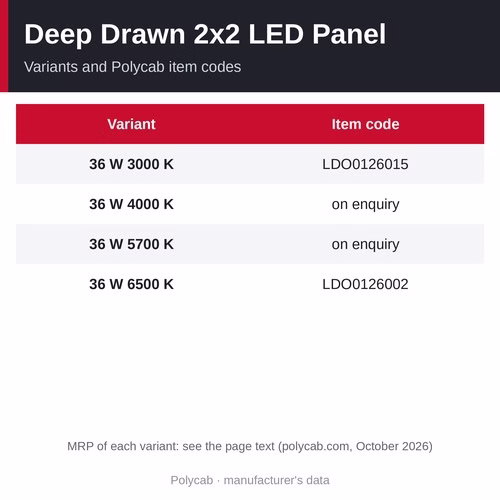

Variants, item codes and MRP

• 36 W, 3000 K warm white: item code LDO0126015 - MRP Rs 3,499
• 36 W, 4000 K neutral white: item code not listed - MRP Rs 3,499
• 36 W, 5700 K cool white: item code not listed - MRP Rs 3,499
• 36 W, 6500 K cool white: item code LDO0126002 - MRP Rs 3,499
• MRP basis: MRPs as listed on polycab.com on 17 October 2026, inclusive of taxes; the selling price is confirmed on enquiry
• Dimensions - 36 W: cut-out 580 mm, size 595 mm, height 35 mm
• Construction: CRCA body with high quality PS Diffuser
• Source: polycab.com product pages, 17 Oct 2026 (titles, variants, specifications, highlights and MRPs)

Why choose the Polycab Deep Drawn 2x2 LED Panel

• Lumen efficacy 100 lm/W - more light per watt than the CFL or incandescent lamp it replaces
• Surge protection of 4 kV for Indian supply conditions
• 20,000 burning hours
• Colour rendering index above 80, so colours look natural
• Power factor above 0.9, so it draws little reactive current
• External driver - a separate driver that can be replaced on its own
• Beam angle of 120 degrees
• CRCA body with high quality PS Diffuser
• No UV or IR radiation in the light (Polycab highlight)
• Polycab item codes for 2 of the 4 variants (LDO0126002 and LDO0126015) - the 4000 K neutral white and 5700 K cool white codes are confirmed on enquiry

How to choose and fit it

Wattage. This 2x2 LED panel is 36 W. One 36 W 2x2 panel (about 3,600 lumens) per 45 to 75 sq ft of office floor gives the usual 300 to 500 lux - roughly one panel per 12 to 20 tiles of a 600 mm grid, i.e. every third or fourth tile in each direction; the exact spacing depends on ceiling height and the finish of the room.

Colour. 3000 K warm white gives a relaxed, yellowish light for bedrooms, living rooms and restaurants; 4000 K neutral white is a balanced white for offices and shops; 5700 K cool white is a crisp white, a shade less blue than 6500 K; 6500 K cool white is the brightest-looking, for kitchens, work areas and utility spaces.

Fitting. Lift the ceiling tile, drop the panel into the grid opening, connect the external driver above the ceiling and let the grid carry the panel. For plaster ceilings a recess frame or surface frame is used; confirm the frame with your ceiling contractor.

Ordering. Quote the item code from the variant rows above (for example LDO0126015) with the quantity; mixed lots of colours are fine. The variants shown as "item code not listed" have no code on polycab.com; we confirm those when you order. polycab.com carries duplicate listings for some variants of this panel; one row per variant is shown here.

Where it is used

• Offices and IT floors with a modular grid ceiling
• Hospitals, clinics and laboratories
• Retail floors, banks and institutional buildings
• Classrooms and training rooms

Other Polycab panel light series

• Polycab Scintillate Slim Aluminium LED Panel Light - 3 W to 22 W, MRP Rs 450 - 1,750
• Polycab Scintillate PC Frameless LED Panel - 6 W to 24 W, MRP Rs 550 - 1,500
• Polycab Scintillate PC Edgelit LED Panel - 3 W to 18 W, MRP Rs 395 - 1,450
• Polycab Scintillate PC Backlit LED Panel Light - 5 W to 20 W, MRP Rs 500 - 1,350
• Polycab 3-in-1 CCT Tri-colour LED Panel Light - 8, 12, 15 and 20 W, MRP Rs 800 - 1,600
• Polycab Scintillate Disc LED Ceiling Light - 10 and 18 W, MRP Rs 500 - 750
• Polycab Scintillate Slim Surface LED Panel Light - 18 W, MRP Rs 1,500

Related products

• Polycab Pearl COB Swivel LED Downlight - COB swivel downlight, 3 W to 36 W, MRP Rs 700 - 4,800
• Polycab Pearl LED Swivel Spot - LED spot light, 3, 6, 9 and 12 W, MRP Rs 390 - 890
• Polycab Pearl LED Nxt-G Spot - LED spot light, 2 W, MRP Rs 150
• Polycab High Wattage LED Batten - LED batten, 24, 30 and 40 W, MRP Rs 750 - 1,500
• Polycab Neo Slim LED Batten - LED batten, 20 W, MRP Rs 250 - 650
• Polycab 3-in-1 CCT LED Batten - LED batten, 20 W, MRP Rs 800

Frequently asked questions

What is the price of the Polycab Deep Drawn 2x2 LED Panel?

Polycab lists the Deep Drawn 2x2 LED Panel at MRP Rs 3,499 per piece (polycab.com, October 2026, inclusive of taxes) across 4 variants - 36 W. The selling price is confirmed on enquiry; call +91 9340081159 with the item codes and quantity.

What is the MRP of the Polycab Deep Drawn 2x2 LED Panel 36 W, 6500 K cool white?

Rs 3,499 per piece, item code LDO0126002 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.

Which colour temperature should I choose?

3000 K warm white gives a relaxed, yellowish light for bedrooms, living rooms and restaurants; 4000 K neutral white is a balanced white for offices and shops; 5700 K cool white is a crisp white, a shade less blue than 6500 K; 6500 K cool white is the brightest-looking, for kitchens, work areas and utility spaces.

Is the driver separate?

Yes - the external driver is supplied with the fitting and sits above the ceiling, where it can be replaced on its own.

What is the warranty on the Deep Drawn 2x2 LED Panel?

Polycab does not print a warranty period on the product page for this series; ask us for the current Polycab warranty terms when you order.

Where can I buy the Polycab Deep Drawn 2x2 LED Panel in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab 2x2 LED panels all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the Deep Drawn 2x2 LED Panel at MRP Rs 3,499 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the variant (item code), the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
