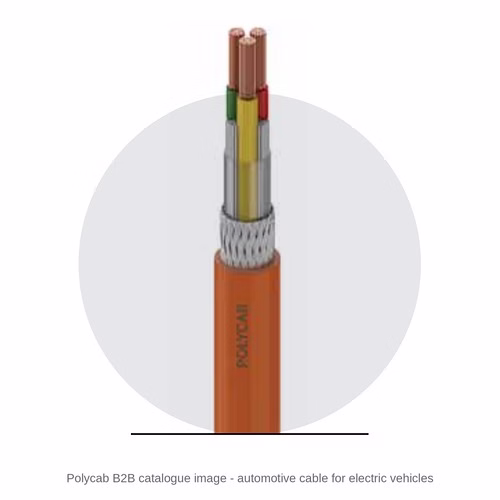

Polycab EV Automotive Cable – 30 V AC / 60 V DC to 1000 V AC / 1500 V DC, 105 to 180 °C, ISO 19642

The Polycab EV Automotive Cable range covers the low-voltage and high-voltage cables inside electric vehicles, with bare or tinned copper conductors, heat-resistant PVC, e-beam XLPO or silicone insulation, and voltage classes from 30 V AC / 60 V DC up to 1000 V AC / 1500 V DC. Polycab's catalogue lists it as conforming to ISO 19642, ISO 6722 and Chinese standards (printed as "GP/T QC/T"). It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• You know the highest voltage the circuit can see, including while charging - up to 60 V DC, or above.
• You know the temperature at the hottest point of the route and the design current.
• You know the size, the cores and the vehicle maker's screening requirement.
• You have the vehicle maker's (OEM) cable specification and sheath colour.

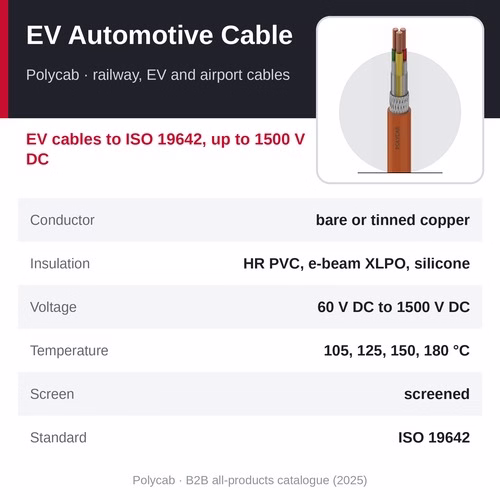

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab EV Automotive Cable
• Type: automotive cable for electric vehicles - low-voltage and high-voltage
• Conductor: annealed bare or tinned copper
• Cores: single or multicore
• Insulation: heat-resistant PVC, electron-beam cross-linked XLPO or silicone rubber
• Voltage: 30 V AC / 60 V DC up to 1000 V AC / 1500 V DC
• Temperature class: 105, 125, 150 or 180 °C
• Screen: screened automotive cables (as the catalogue lists the family)
• Standards: ISO 19642; ISO 6722 and Chinese standards (printed as "GP/T QC/T")
• Source: Polycab B2B all-products catalogue (2025), p 23

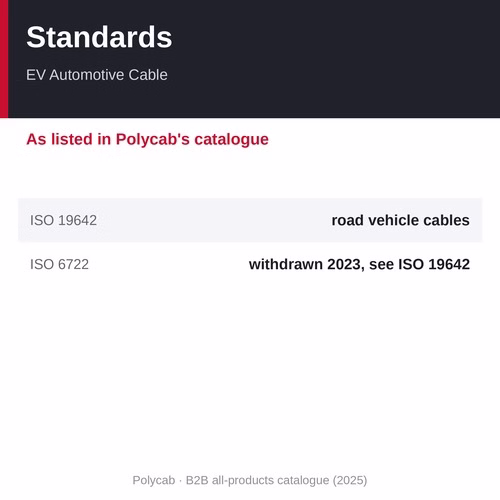

Construction and standards

• Conductor: annealed bare or tinned copper
• Cores: single or multicore
• Insulation: heat-resistant PVC, EBXL XLPO or silicone rubber
• Screen: screened
• ISO 19642: road vehicle automotive cables, 30 V AC / 60 V DC up to 1000 V AC / 1500 V DC
• ISO 6722: road vehicle 60 V and 600 V single-core cables (withdrawn - see the note)
• Note - Standards: ISO 6722 was withdrawn in 2023 and replaced by ISO 19642; "GP/T QC/T" in the catalogue is read as the Chinese national (GB/T) and automotive-industry (QC/T) standards - we confirm the standard for each cable
• Source: Polycab B2B all-products catalogue (2025), p 23

Why choose the Polycab EV Automotive Cable

• Voltage classes from 30 V AC / 60 V DC up to 1000 V AC / 1500 V DC
• Temperature classes of 105, 125, 150 and 180 °C
• Heat-resistant PVC, e-beam XLPO or silicone rubber insulation
• Screened automotive cables, as Polycab lists the family
• Listed to ISO 19642 and to Chinese GB/T and QC/T standards - we confirm the standard for each cable

How to choose and specify it

Voltage class. Choose the ISO 19642 class from the highest voltage the circuit can see, including while charging: the 30 V AC / 60 V DC class only where the system stays within 60 V DC, and above that the 600 V AC / 900 V DC or 1000 V AC / 1500 V DC classes. A 48 V pack normally stays within 60 V DC, while 60 V and 72 V packs go above 60 V DC when charging and need a higher class.

Temperature. Choose a class that covers the ambient at the hottest point of the route - near motors and power electronics, for example - plus the cable's own heating at the design current. ISO 19642 labels its temperature classes by letter, so we confirm which class each Polycab cable (105, 125, 150 or 180 °C) meets.

Screening and colour. High-voltage traction cables are usually screened for EMC, and high-voltage cables in vehicles are usually orange so that they are easy to identify. Follow the OEM's specification.

Where it is used

• Battery packs and battery management wiring
• Motor and inverter high-voltage connections
• Electric two-wheelers, three-wheelers and e-rickshaws
• Electric cars, buses and commercial vehicles
• Low-voltage harnesses in EVs

Other Polycab railway, EV and airport cables

• Polycab Metro Rail Cable - train cables to EN 50264, 50306 and 50382, price on request
• Polycab Railway Signalling Cable - RDSO IRS S-63 signalling cable, price on request
• Polycab Railway Rolling Stock Cable - e-beam locomotive and coach cables, 125 °C, price on request
• Polycab EV Automotive Cable (this page) - EV cables to ISO 19642, up to 1500 V DC, price on request
• Polycab EV Charger Cable - 2 to 6 core PU-sheathed charging cable, price on request
• Polycab Airport Lighting Cable - single-core TPE airfield lighting cable, price on request

Related products

• HEX Crimping Type Copper Tubular Cable Lugs - UL Listed, 1.5 to 1000 sq mm
• HEX HEXPRESS Hydraulic Crimping Tools - Hand, Foot and Remote-Head Tools for Cable Lugs, 10 to 1000 sq mm

Frequently asked questions

What is the price of the Polycab EV Automotive Cable?

The Polycab EV Automotive Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

Which standard applies?

ISO 19642, the road-vehicle cable standard that replaced ISO 6722 (withdrawn in 2023). The catalogue also lists Chinese standards; we confirm the standard for each cable.

Which temperature class do I need?

One that covers the ambient at the hottest point of the route plus the cable's own heating at the design current - higher classes (125, 150 or 180 °C) near motors and power electronics. We confirm how each Polycab class maps to the ISO 19642 class your drawing names.

Why are EV high-voltage cables orange?

Orange marks high-voltage cables in vehicles so that service staff can identify them. Follow your vehicle maker's colour specification.

Where can I buy the Polycab EV Automotive Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the voltage class, the temperature class, the size and cores, screening, the sheath colour, the quantities and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
