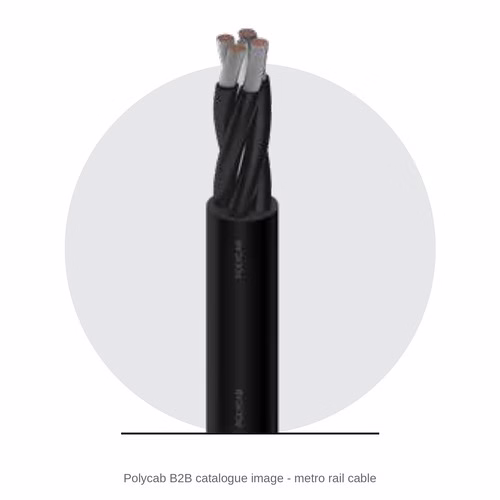

Polycab Metro Rail Cable – E-Beam / Silicone Insulated, Zero Halogen, EN 50264 / EN 50306 / EN 50382

The Polycab Metro Rail Cable range covers power, control and signal cables for metro train cars, with flexible copper conductors, electron-beam cross-linked or silicone rubber insulation rated 90 to 150 °C, and zero-halogen sheaths. Polycab's catalogue lists it as generally conforming to EN 50264-3-1 / 3-2, EN 50306-2 / 3 / 4 and EN 50382-1 / 2. It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The cable is for wiring inside metro or suburban train cars.
• You know which standard each circuit needs - EN 50264 power and control, EN 50306 thin-wall, or EN 50382 high temperature.
• You know the voltage, size, cores and screening.
• You know the fire-safety classification your rolling stock specification asks for.

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Metro Rail Cable
• Type: rolling stock cable for metro trains
• Conductor: flexible copper
• Cores: single or multicore
• Insulation: electron-beam cross-linked flame-retardant compound, or silicone rubber
• Temperature: 90 °C to 150 °C, by type
• Screen: screened or unscreened
• Sheath: zero halogen compound on the sheathed types; some single cores (for example the 0.6/1 kV cores to EN 50264-3-1, and EN 50306-2 cores) have no sheath - ask us to confirm that their insulation is halogen-free
• Standards: EN 50264-3-1 / 3-2, EN 50306-2 / 3 / 4, EN 50382-1 / 2
• Source: Polycab B2B all-products catalogue (2025), p 21

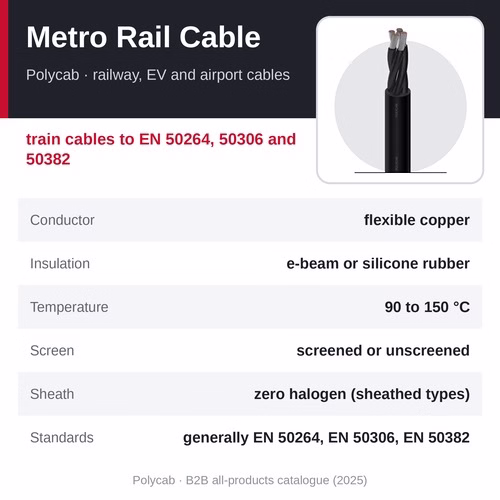

Construction and standards

• Conductor: flexible copper
• Cores: single or multicore
• Insulation: electron-beam cross-linked flame-retardant compound, or silicone rubber
• Screen: screened or unscreened
• Sheath: zero halogen compound on the sheathed types; some single cores (for example the 0.6/1 kV cores to EN 50264-3-1, and EN 50306-2 cores) have no sheath - ask us to confirm that their insulation is halogen-free

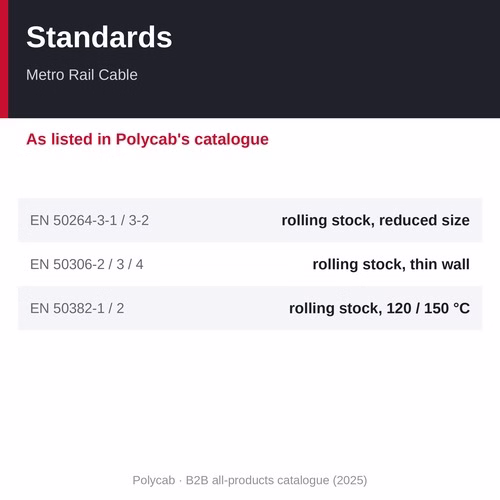

• EN 50264-3-1 / 3-2: railway rolling stock power and control cables with special fire performance - elastomeric insulation, reduced dimensions (90 °C)
• EN 50306-2 / 3 / 4: railway rolling stock thin-wall cables with special fire performance (300/300 V and 300/500 V)
• EN 50382-1 / 2: railway rolling stock high-temperature power cables (120 °C or 150 °C) with special fire performance
• Source: Polycab B2B all-products catalogue (2025), p 21

Why choose the Polycab Metro Rail Cable

• Electron-beam cross-linked or silicone rubber insulation for 90 to 150 °C
• Zero halogen sheath - low smoke and no halogen acid gases in a fire
• Thin-wall and reduced-dimension types to save space and weight on trains
• Screened and unscreened, single and multicore
• Listed as generally conforming to the EN rolling stock cable standards (EN 50264, EN 50306 and EN 50382)

How to choose and specify it

Which standard. EN 50264-3 (Parts 3-1 and 3-2, as listed) covers power and control cables with elastomeric insulation and reduced dimensions (90 °C); EN 50306 covers thin-wall cables for signals and low-power circuits; EN 50382 covers high-temperature (120 or 150 °C) silicone rubber power cables. For standard-wall EN 50264-2 types, which the catalogue does not list, ask us. Your train builder's cable schedule names the type for each circuit.

Fire safety. Railway vehicles follow strict fire-safety rules; if your specification asks for an EN 45545-2 hazard level, tell us so that we confirm the classification for the cable type.

Send us the schedule. List the type, size, cores, screening and quantities and we confirm availability and lead time with Polycab.

Where it is used

• Metro and suburban train cars - power and control wiring
• Traction and auxiliary converter connections
• Signal and communication wiring on trains (thin-wall types)
• High-temperature zones near brakes and resistors (silicone types)
• Refurbishment of rolling stock

Other Polycab railway, EV and airport cables

• Polycab Metro Rail Cable (this page) - train cables to EN 50264, 50306 and 50382, price on request
• Polycab Railway Signalling Cable - RDSO IRS S-63 signalling cable, price on request
• Polycab Railway Rolling Stock Cable - e-beam locomotive and coach cables, 125 °C, price on request
• Polycab EV Automotive Cable - EV cables to ISO 19642, up to 1500 V DC, price on request
• Polycab EV Charger Cable - 2 to 6 core PU-sheathed charging cable, price on request
• Polycab Airport Lighting Cable - single-core TPE airfield lighting cable, price on request

Related products

• HEX End-Sealing Ferrules (Bootlace) - Non-Insulated, Insulated & Twin, 0.5 to 120 sq mm
• HEX Crimping Type Copper Tubular Cable Lugs - UL Listed, 1.5 to 1000 sq mm

Frequently asked questions

What is the price of the Polycab Metro Rail Cable?

The Polycab Metro Rail Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

What does zero halogen mean?

The compound contains no halogens, so a fire produces less smoke and no corrosive, toxic halogen gases - important inside trains and tunnels. Polycab lists a zero-halogen sheath; for unsheathed single cores we confirm that the insulation is halogen-free.

Which temperature ratings are available?

Polycab lists insulation suitable for 90 °C to 150 °C; the EN 50382 silicone rubber types are for 120 or 150 °C.

Which standards apply?

EN 50264-3-1 and 3-2, EN 50306-2, 3 and 4, and EN 50382-1 and 2, as the catalogue lists.

Where can I buy the Polycab Metro Rail Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the cable type and standard, the size, cores and screening, the quantities and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
