Polycab Oil and Gas Cable (Offshore and Onshore) – XLPO Type P / EPR, Mud and Oil Resistant, 125 °C, IEEE 1580

The Polycab Oil and Gas Cable range covers offshore and onshore power, control and instrumentation cables with flexible copper conductors, XLPO type P or EPR insulation, unarmoured or braid armoured, with mud- and oil-resistant XL-CPE or CSPE sheaths, rated 125 °C (as Polycab states). Polycab's catalogue lists it as conforming to IEEE 1580. It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The cable is for an offshore platform, a drilling rig or an onshore oil and gas facility.
• You know the voltage and the cable type: power, control, instrumentation or VFD.
• You know whether the cable runs in a hazardous area (Zone 1 or Zone 2).
• You know the classification-society approval (for example ABS or DNV) or the listing your project requires.

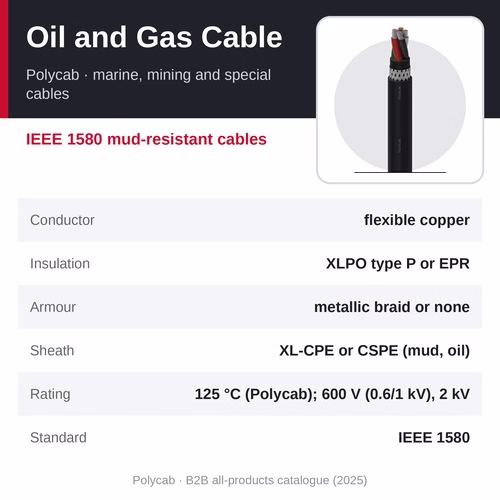

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Oil and Gas Cable
• Type: offshore and onshore oil and gas cables
• Conductor: flexible copper
• Cores: single or multicore
• Insulation: XLPO or HD XLPO type P, or EPR
• Elements: cores, pairs or triples; metallic shielded or unshielded
• Armour: unarmoured or metallic braid armoured
• Sheath: mud- and oil-resistant XL-CPE or CSPE
• Ratings: 125 °C (as Polycab states); printed as "600V, 2kV / 1000V" - read as 600 V (0.6/1 kV) and 2 kV grades, confirmed on the datasheet

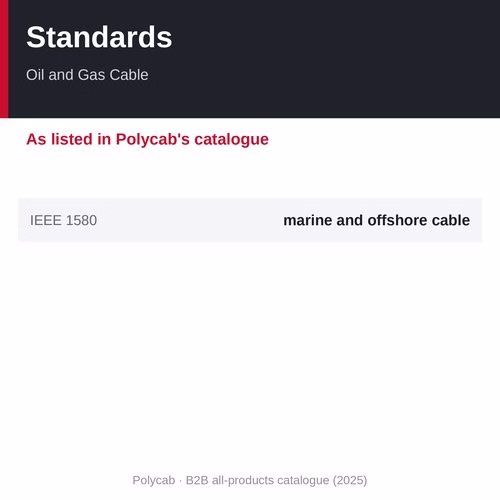

• Standard: IEEE 1580
• Source: Polycab B2B all-products catalogue (2025), p 27

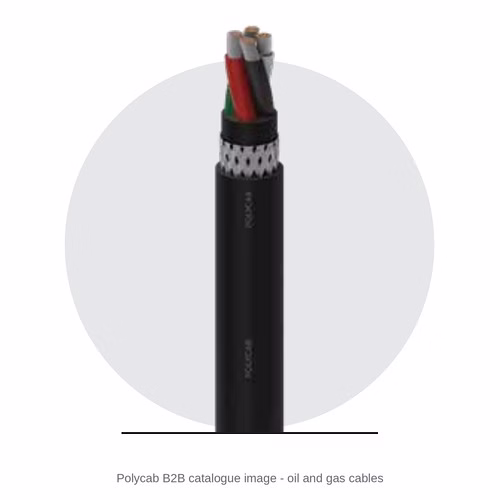

Construction and standards

• Conductor: flexible copper
• Cores: single or multicore
• Conductor screen: screened or unscreened
• Insulation: XLPO or HD XLPO type P, or EPR
• Insulation screen: screened or unscreened
• Elements: cores, pairs or triples assembled
• Shield: metallic shield or unshielded
• Armour: unarmoured or metallic braid
• Outer sheath: mud- and oil-resistant XL-CPE or CSPE
• IEEE 1580: recommended practice for marine cable for shipboard and fixed or floating facilities, 300 V to 35 kV
• Note - IEEE 1580 edition: the catalogue cites IEEE 1580:2010; the 2021 edition has replaced it - if your specification names an edition, we confirm the one the cable meets
• Note - Screens: conductor and insulation screens are used on medium-voltage designs; the catalogue prints only the 600 V and 2 kV grades, so for 5 kV and above, send us the specification and we confirm availability and the construction with Polycab
• Source: Polycab B2B all-products catalogue (2025), p 27

Why choose the Polycab Oil and Gas Cable

• Mud- and oil-resistant XL-CPE or CSPE sheaths for drilling areas
• XLPO type P or EPR insulation, rated 125 °C (as Polycab states)
• Flexible copper conductors, with braid armour where needed - easy to route and gland on rigs
• Power, control and instrumentation in one family
• VFD and custom designs to IEEE 1580

How to choose and specify it

Type P. IEEE 1580, the recommended practice for marine and offshore cable, describes type P - a flame-retardant cross-linked polyolefin insulation commonly used on rigs and platforms.

Mud resistance. Drilling areas expose cables to drilling mud and oils; the XL-CPE and CSPE sheaths are made to resist them. Both contain chlorine, so these cables are not halogen-free: where a halogen-free cable is required (for example to NEK 606), see the Polycab Marine and Offshore Cable or ask us.

Glands and armour. In hazardous areas, use Ex-certified glands suited to the cable - unarmoured or braid armoured. Terminate and earth the braid as the yard, class or project rules require, in a gland that clamps the braid or with a separate earthing clamp. Single-core cables on AC circuits need a non-magnetic braid; tell us the circuit.

Approvals. Tell us the classification society or listing your project needs, and we confirm the approval status for the cable type with Polycab.

VFD and custom cables. Polycab also makes VFD cables and custom designs to IEEE 1580 - send us the specification.

Where it is used

• Offshore platforms and FPSOs
• Onshore and offshore drilling rigs
• Oil and gas processing facilities
• Pipelines and compressor stations
• VFD-driven mud pumps and top drives

Other Polycab marine, mining and special cables

• Polycab Marine and Offshore Cable - ship and offshore cables, IEC 60092, price on request
• Polycab Mining Cable - IS 14494 flexible mining cable, price on request
• Polycab Festoon Cable - flat PVC crane and hoist cable, price on request
• Polycab Nuclear Power Plant Cable - radiation-resistant cables, NPCIL specifications, price on request
• Polycab Machine and Tool Cable - PVC and HFFR machine wiring cable, price on request
• Polycab Defence Cable - halogen-free naval cables, Def Stan, price on request
• Polycab Oil and Gas Cable (this page) - IEEE 1580 mud-resistant cables, price on request
• Polycab Oil and Gas Submersible Pump Cable - oil-well ESP cable, 80 to 180 °C, price on request
• Polycab Industrial Braided Cable - tinned copper or GI braided control cable, price on request

Related products

• HEX Marine Watertight Cable Glands - Nickel-Plated Brass, PF 3/8" to 3"; for safe (non-hazardous) areas

Frequently asked questions

What is the price of the Polycab Oil and Gas Cable?

The Polycab Oil and Gas Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

Which standard does it follow?

IEEE 1580 - the catalogue cites the 2010 edition, which the 2021 edition has replaced. We confirm the edition for your specification.

Is it mud resistant?

Yes - the XL-CPE and CSPE sheaths are listed as mud and oil resistant.

Which voltages are available?

The catalogue prints "600V, 2kV / 1000V" with a 125 °C temperature class - read as 600 V (0.6/1 kV) and 2 kV grades. We confirm the rating on the datasheet.

Where can I buy the Polycab Oil and Gas Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the cable type, the voltage, the size and cores, the armour, the approvals needed, the length and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
