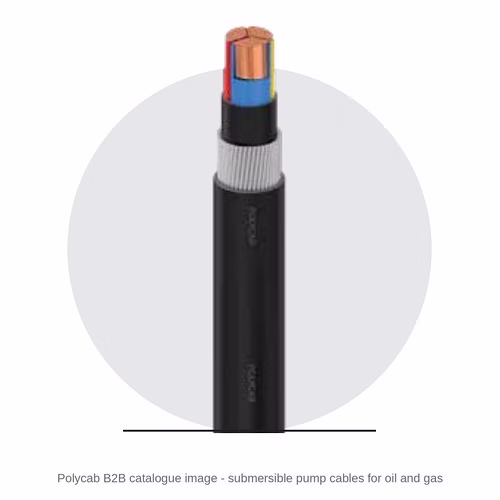

Polycab Oil and Gas Submersible Pump Cable – PP / EPDM Insulated, GI Armoured / Unarmoured, 80 to 180 °C

The Polycab Oil and Gas Submersible Pump Cable powers electrical submersible pumps in oil and gas wells, with multicore copper conductors, polypropylene or EPDM insulation and PE, HDPE or NBR sheaths, with or without GI armour, in temperature classes from 80 to 180 °C. It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The cable powers an electrical submersible pump (ESP) in an oil or gas well.
• You know the well temperature and the load current, and so the temperature class (80 to 180 °C).
• You know the pump motor rating, the voltage and the setting depth.
• You have the pump maker's or operator's cable specification.

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Oil and Gas Submersible Pump Cable
• Type: power cable for electrical submersible pumps in oil and gas wells
• Conductor: solid or stranded copper
• Cores: multicore
• Insulation: polypropylene (PP) or EPDM
• Sheath: PE, HDPE or NBR
• Armour: GI armoured or unarmoured
• Voltage grade: not printed in the catalogue - confirmed with Polycab for your pump
• Standard: none listed in the catalogue (see the note)
• Temperature classes: 80 °C to 180 °C
• Source: Polycab B2B all-products catalogue (2025), p 27

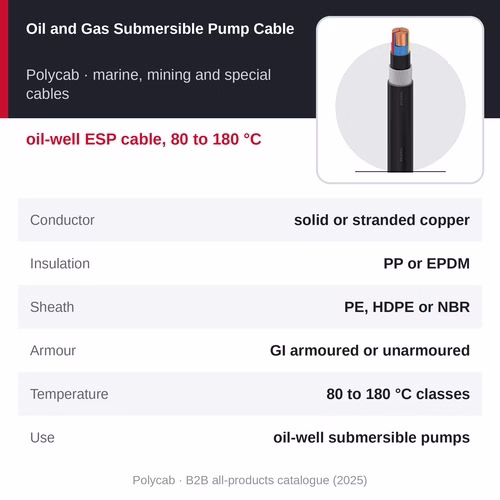

Construction and standards

• Conductor: solid or stranded copper
• Insulation: polypropylene (PP) or EPDM
• Cores: multicore, laid up
• Sheath: PE, HDPE or NBR
• Armour: GI armoured or unarmoured
• Note - Standard: the catalogue lists no standard for this cable; ESP cables are built to the operator's or pump maker's specification, which we confirm with Polycab
• Source: Polycab B2B all-products catalogue (2025), p 27

Why choose the Polycab Oil and Gas Submersible Pump Cable

• Temperature classes from 80 °C to 180 °C for different well conditions
• Polypropylene or EPDM insulation
• PE, HDPE or NBR (nitrile, oil-resistant) sheaths
• GI armoured versions against crushing in the well

How to choose and specify it

Temperature class. Choose a class above the highest conductor temperature in service: the bottom-hole temperature plus the heating from the load current. Typically polypropylene insulation is used for the lower classes and EPDM for the higher ones - Polycab confirms for your well; the catalogue covers 80 °C to 180 °C.

Sheath. NBR (nitrile rubber) is an oil-resistant sheath; PE and HDPE are the other sheaths listed. The operator's specification usually names the sheath for the well fluids.

Send us the specification. ESP cables are engineered for each well; send the pump rating, voltage and current, the setting depth, the well temperature, the well fluids and any gas (H2S / CO2), and we confirm the cable with Polycab.

Where it is used

• Electrical submersible pumps (ESP) in oil wells
• Artificial lift in onshore oil fields
• Water-source wells that supply water injection
• Hot wells needing high-temperature cables

Other Polycab marine, mining and special cables

• Polycab Marine and Offshore Cable - ship and offshore cables, IEC 60092, price on request
• Polycab Mining Cable - IS 14494 flexible mining cable, price on request
• Polycab Festoon Cable - flat PVC crane and hoist cable, price on request
• Polycab Nuclear Power Plant Cable - radiation-resistant cables, NPCIL specifications, price on request
• Polycab Machine and Tool Cable - PVC and HFFR machine wiring cable, price on request
• Polycab Defence Cable - halogen-free naval cables, Def Stan, price on request
• Polycab Oil and Gas Cable - IEEE 1580 mud-resistant cables, price on request
• Polycab Oil and Gas Submersible Pump Cable (this page) - oil-well ESP cable, 80 to 180 °C, price on request
• Polycab Industrial Braided Cable - tinned copper or GI braided control cable, price on request

Frequently asked questions

What is the price of the Polycab Oil and Gas Submersible Pump Cable?

The Polycab Oil and Gas Submersible Pump Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

Which temperature classes are available?

From 80 °C to 180 °C, as the catalogue lists, with polypropylene or EPDM insulation.

Is it armoured?

GI armoured or unarmoured versions are available.

Is this the same as a borewell submersible cable?

No - borewell water pumps use the Polycab 3-Core Flat Submersible Cable or the Polycab Round Submersible Cable. This cable is for submersible pumps in oil and gas wells, with higher temperature classes.

Where can I buy the Polycab Oil and Gas Submersible Pump Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the pump rating, voltage and current, the setting depth and well temperature, the well fluids and gas (H2S / CO2), the cores and size, the sheath and armour, the length and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
