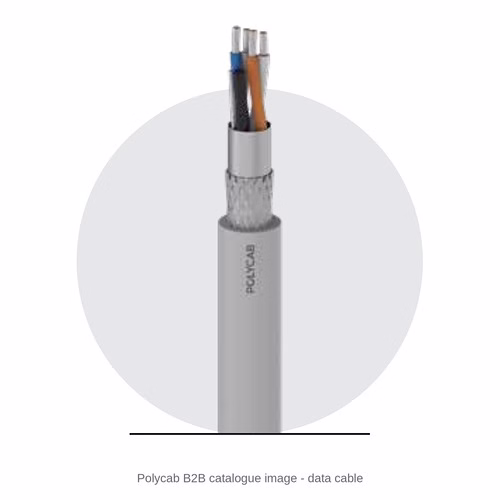

Polycab Data Cable – RS485, LIYY and LIYCY, Flexible Copper, Tinned Copper Braid on Screened Types

The Polycab Data Cable range covers RS485, LIYY and LIYCY data and signal cables with flexible copper conductors, tinned copper braid screens on the screened types and PVC sheaths, with other data cables made to customised designs. It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• You know the type: RS485 (for RS-485 networks), LIYY (unscreened) or LIYCY (braid screened).
• You know the number of pairs or cores and the conductor size.
• For RS-485 use a twisted-pair cable of about 120 ohm, as the standard recommends - ask for the impedance and pair construction on the Polycab RS485 datasheet.
• You know the run length and the environment (indoor, panel, tray).

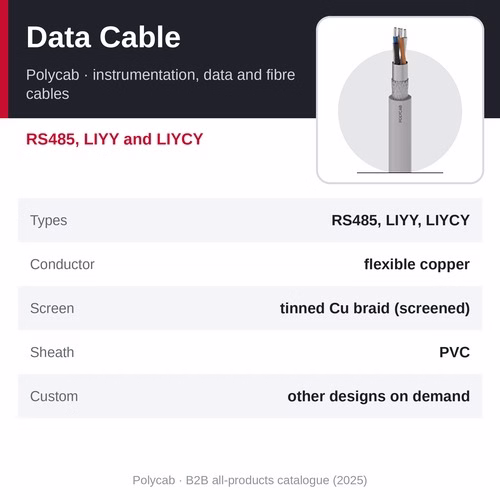

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Data Cable
• Type: data and signal cable - RS485, LIYY and LIYCY types
• Conductor: annealed flexible copper
• Insulation: polyethylene (as printed for the range)
• Screen: annealed tinned copper braid (screened types)
• Sheath: PVC
• Custom: other data cables to customised designs and standards on demand
• Source: Polycab B2B all-products catalogue (2025), p 18

Construction and standards

• Conductor: annealed flexible copper
• Insulation: polyethylene
• Cores: laid up
• Screen: annealed tinned copper braid (screened types; LIYY is unscreened)
• Outer sheath: PVC
• Note - Types: the catalogue gives one description for the whole range; by their German type names, LIYY is an unscreened cable with PVC insulation and sheath, and LIYCY adds a copper-braid screen, while the polyethylene insulation suits the RS485 type - we confirm the construction of the type you order
• Source: Polycab B2B all-products catalogue (2025), p 18

Why choose the Polycab Data Cable

• Flexible copper conductors
• Tinned copper braid screen on the screened types
• RS485, LIYY and LIYCY types in one range
• Other data cables made to customised designs on demand

How to choose and specify it

RS485. RS-485 is the serial link used by Modbus RTU and many meters and drives. The standard recommends a twisted-pair cable of about 120 ohm characteristic impedance, terminated at both ends; tell us the pair count.

LIYY and LIYCY. These German type names describe flexible PVC cables: Li = fine-stranded conductor, Y = PVC (insulation or sheath) and C = copper-braid screen. LIYY is unscreened; LIYCY is screened for noisy areas.

Custom designs. Polycab makes other data cables to customised designs and standards on demand - send us the specification.

Where it is used

• Modbus RTU and RS-485 networks to energy meters, drives and PLCs
• Control and measuring signals in machines and panels
• Data links in building and process automation
• Instrument and sensor connections
• Solar plant monitoring (meters and string monitoring)

Other Polycab instrumentation, data and fibre cables

• Polycab Instrumentation Cable - pairs, triads and quads, individually / overall screened, price on request
• Polycab VFD Cable - 3+3(E) and 4 core screened drive cable, price on request
• Polycab Thermocouple Extension Cable - KX and JX extension cable, price on request
• Polycab Bus Cable - Profibus and Fieldbus cable, price on request
• Polycab BMS Cable - screened multicore BMS cable, price on request
• Polycab Data Cable (this page) - RS485, LIYY and LIYCY, price on request
• Polycab Optical Fibre Cable - OFC for telecom, BharatNet, smart city and enterprise networks, price on request

Related products

• Polycab LAN Cable - Cat 6, Cat 6a and Cat 5e, 23 AWG Solid Copper, TIA/EIA-568-C.2
• Polycab Industrial Telephone (Switchboard) Cable - 0.4 / 0.5 mm Copper, HDPE Insulated, 1 to 100 Pair

Frequently asked questions

What is the price of the Polycab Data Cable?

The Polycab Data Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

What is the difference between LIYY and LIYCY?

By their German type codes both have PVC insulation and a PVC sheath: LIYY is unscreened, and LIYCY has a copper-braid screen (the "C") for areas with electrical noise. The catalogue prints polyethylene insulation for the whole range, so we confirm the construction of the type you order.

What impedance do I need for RS-485?

The RS-485 standard recommends, but does not require, a twisted-pair cable of about 120 ohm, terminated at both ends of the line. Tell us the pair count and run length.

Can Polycab make a custom data cable?

Yes - the catalogue lists other data cables to customised designs and standards on demand.

Where can I buy the Polycab Data Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

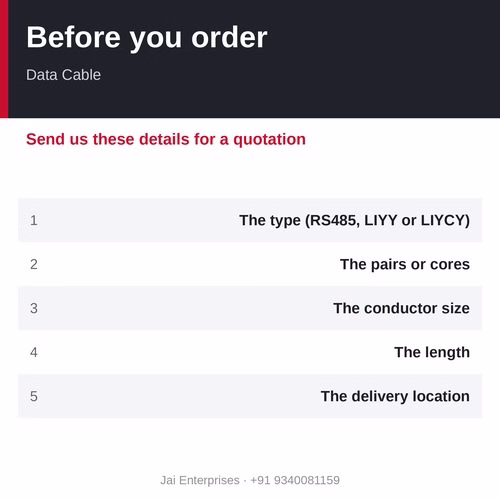

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the type (RS485, LIYY or LIYCY), the pairs or cores, the conductor size, the length and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
