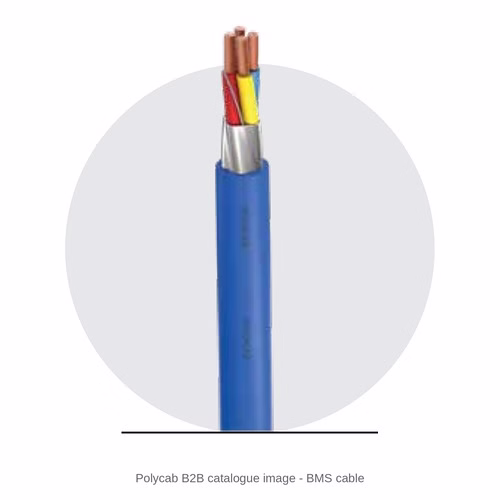

Polycab BMS Cable – Multicore Flexible Copper, PVC, Overall Foil Screen with Drain Wire or Braid

The Polycab BMS Cable is a screened multicore cable for building management systems, with flexible copper PVC insulated cores under an overall aluminium-Mylar screen with either a tinned drain wire or a tinned copper braid over it. Polycab's catalogue lists it as generally conforming to BS EN 50288-7. It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The circuits are BMS signal and I/O wiring - sensors, actuators, controllers and meters - not power, and not RS-485 network links (see How to choose).
• You know the number of cores and the conductor size your BMS supplier specifies.
• You know whether the drain-wire or the braided version is wanted.
• Fire alarm and other life-safety circuits will use the cable their design and code call for - a fire survival (fire-resistant) cable where the circuit must keep working in a fire.

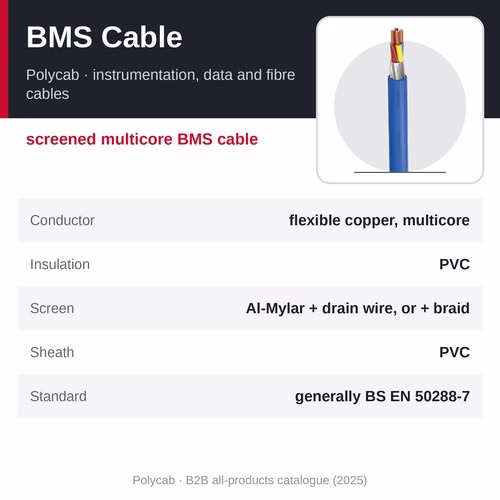

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab BMS Cable
• Type: screened multicore cable for building management systems (BMS)
• Conductor: flexible copper
• Cores: multicore
• Insulation: PVC
• Screen: overall aluminium-Mylar tape, with either an annealed tinned copper (ATC) drain wire or an ATC braid over it
• Sheath: PVC
• Standard: generally conforming to BS EN 50288-7
• Source: Polycab B2B all-products catalogue (2025), p 28

Construction and standards

• Conductor: flexible copper
• Cores: multicore
• Insulation: PVC
• Screen: overall aluminium-Mylar tape, with an ATC drain wire or an ATC braid
• Outer sheath: PVC

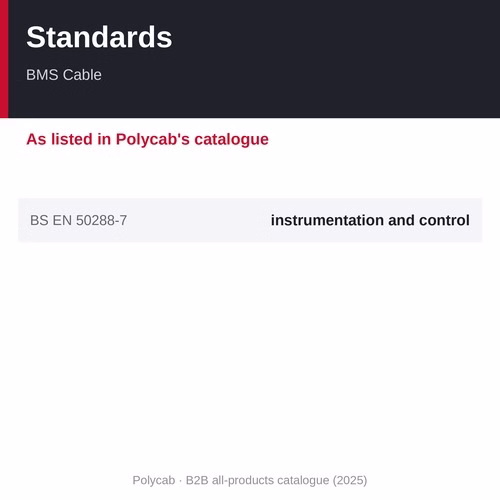

• BS EN 50288-7: instrumentation and control cables for analogue and digital signals, with maximum rated voltages of 90, 300 or 500 V AC; not for connection to mains power
• Source: Polycab B2B all-products catalogue (2025), p 28

Why choose the Polycab BMS Cable

• Overall screen against noise from power cables and lighting circuits
• Flexible copper conductors - easy to route through ceilings and risers
• Aluminium-Mylar foil with a tinned drain wire, or with a tinned copper braid over it
• Multicore - several signals in one cable

How to choose and specify it

Cores and size. BMS suppliers usually specify the core count and size for each loop - for example sensor, actuator and controller wiring. Send us their cable schedule.

Screen. Both versions have the overall aluminium-Mylar foil: one adds a tinned drain wire, which is light and easy to terminate, the other a tinned copper braid, which adds mechanical strength and lower screen resistance. Earth the screen as the BMS supplier advises.

Networks. For RS-485 links between controllers and meters (Modbus RTU, BACnet MS/TP), use a twisted-pair cable of about 120 ohm - see the Polycab Data Cable, and ask us to confirm the pair construction and impedance of its RS485 type.

Separation. Run BMS cables on their own tray or conduit, apart from power cables, and do not use them for fire alarm or emergency circuits.

Where it is used

• HVAC controls - AHUs, chillers, VAV boxes and fan coil units
• Temperature, humidity and CO2 sensors
• Energy meters and lighting control panels
• Access control and building automation in offices, hospitals, malls and hotels
• Data centre facility monitoring

Other Polycab instrumentation, data and fibre cables

• Polycab Instrumentation Cable - pairs, triads and quads, individually / overall screened, price on request
• Polycab VFD Cable - 3+3(E) and 4 core screened drive cable, price on request
• Polycab Thermocouple Extension Cable - KX and JX extension cable, price on request
• Polycab Bus Cable - Profibus and Fieldbus cable, price on request
• Polycab BMS Cable (this page) - screened multicore BMS cable, price on request
• Polycab Data Cable - RS485, LIYY and LIYCY, price on request
• Polycab Optical Fibre Cable - OFC for telecom, BharatNet, smart city and enterprise networks, price on request

Related products

• Polycab LMS FRLS uPVC Conduit Pipe - Light Mechanical Stress, 20 to 50 mm Outside Diameter, IS 9537 Part 3
• Adels-Contact DS - 12-Pole Screw Terminal Strips with Wire Protector, 2.5 to 16 sq mm, UL/CSA

Frequently asked questions

What is the price of the Polycab BMS Cable?

The Polycab BMS Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

Can BMS cable be used for fire alarm circuits?

No - use the cable your fire alarm design and code call for. Where the alarm circuits must keep working in a fire, as many codes require, that is a fire survival (fire-resistant) cable - see the Polycab Fire Survival Cable.

Drain wire or braid?

Both versions have the aluminium-Mylar foil. The drain-wire version is light and easy to terminate; the braided version is mechanically stronger with a lower screen resistance. Your BMS supplier's specification usually decides.

Which standard does it follow?

Polycab lists it as generally conforming to BS EN 50288-7, the European standard for instrumentation and control cables.

Where can I buy the Polycab BMS Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the number of cores, the conductor size, the drain-wire or braided version, the length and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
