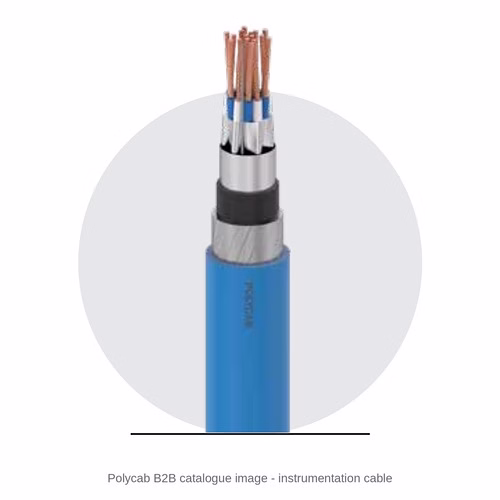

Polycab Instrumentation Cable – Pairs, Triads, Quads, Individual and / or Overall Screens, Armoured or Not

The Polycab Instrumentation Cable carries low-level analogue and digital signals from field instruments to control rooms, in pairs, triads or quads of copper with individual and / or overall screens, unarmoured or GI armoured. Polycab's catalogue lists it as generally conforming to BS EN 50288-7, IS 1554 (Part 1) and IS 7098 (Part 1). It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The circuits are low-level signals - 4-20 mA, RTD, digital or communication - not power.
• You know the number of pairs, triads or quads, and the conductor size.
• You know the screening: individual plus overall (IS-OS) for multi-pair analogue cables, or overall only.
• You know whether the run needs armour, and which sheath (FRLS, LSOH, PE).
• For thermocouples you will use the matching thermocouple extension cable (KX or JX) instead.

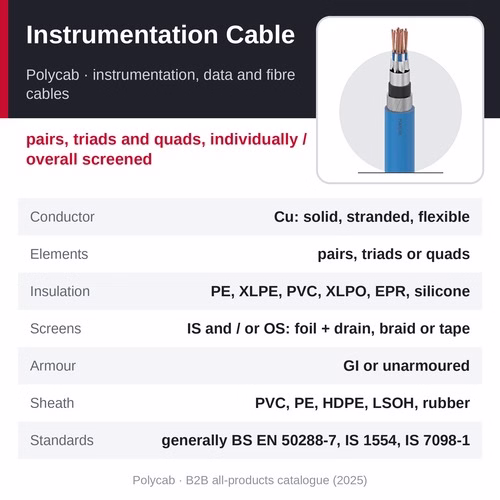

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Instrumentation Cable
• Type: instrumentation cable for analogue and digital signals
• Conductor: copper - solid, stranded or flexible
• Elements: pairs, triads or quads
• Insulation: PE, XLPE, PVC, XLPO, EPR or silicone rubber
• Screen: individual and / or overall aluminium-Mylar tape with drain wire, copper wire braid or copper tape
• Armour: unarmoured or galvanised steel (GI) armoured
• Sheath: PE, HDPE, PVC (HR / FR / FRLS), LSOH or rubber; lead-alloy or polyamide barrier sheath where required
• Voltage rating: not printed in the catalogue - confirmed on order
• Standards: generally conforming to BS EN 50288-7, IS 1554 and IS 7098 (Part 1)
• Source: Polycab B2B all-products catalogue (2025), p 14

Construction and standards

• Conductor: solid, stranded or flexible copper
• Insulation: PE, XLPE, PVC, XLPO, EPR or silicone rubber
• Elements: pairs, triads or quads
• Screen: individual and / or overall: aluminium-Mylar tape with drain wire, copper wire braid or copper tape
• Inner sheath: PE, PVC (HR / FR / FRLS), rubber or LSOH
• Armour: unarmoured or galvanised steel (GI) armoured
• Outer sheath: PE, HDPE, PVC (HR / FR / FRLS), LSOH or rubber
• Barrier sheath: lead alloy or polyamide, where required

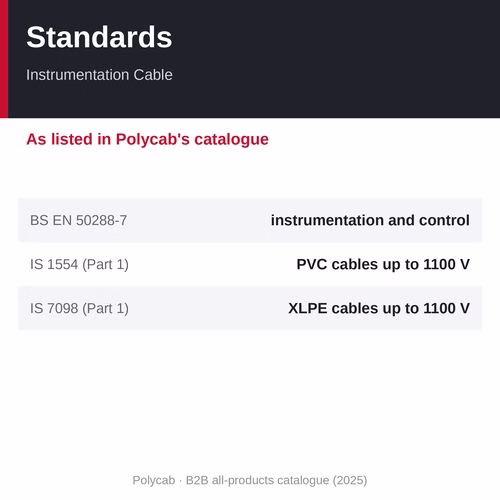

• BS EN 50288-7: instrumentation and control cables for analogue and digital signals, with maximum rated voltages of 90, 300 or 500 V AC; not for connection to mains power
• IS 1554 (Part 1): PVC insulated (heavy duty) cables for working voltages up to and including 1100 V
• IS 7098 (Part 1): XLPE insulated thermoplastic sheathed cables for working voltages up to and including 1100 V
• Note - Voltage: IS 1554 and IS 7098 (Part 1) are 1100 V power-cable standards and BS EN 50288-7 an instrumentation-cable standard (up to 500 V AC); the catalogue gives no voltage rating, so we confirm it on the datasheet for your cable
• Note - Standards: IS 1554 applies to the PVC-insulated and IS 7098 (Part 1) to the XLPE-insulated versions; for the PE, XLPO, EPR and silicone rubber versions we confirm the standard on the datasheet
• Source: Polycab B2B all-products catalogue (2025), p 14

Why choose the Polycab Instrumentation Cable

• Pairs, triads or quads - for 4-20 mA loops, 3-wire RTDs and digital signals
• Individual and / or overall screens - foil with drain wire, copper braid or copper tape - against electrical noise
• A wide choice of insulation, from PVC and PE to XLPO, EPR and silicone rubber
• GI armour for buried and exposed runs
• FRLS and LSOH sheaths for control rooms and enclosed plants
• Lead-alloy or polyamide barrier sheath for refineries and termite-prone ground

How to choose and specify it

Screening. In a multi-pair analogue cable, an individual screen on each pair plus an overall screen (IS-OS) greatly reduces crosstalk between pairs and outside noise. Earth each screen - through its drain wire on foil screens - usually at one end only (commonly the control-room end), so that no earth-loop current flows in it.

Elements. Pairs suit 4-20 mA loops and most signals; triads suit 3-wire RTDs; quads are used for some RTD and communication circuits. Count the signals on the run and add spare pairs.

Protection. GI armour protects buried and exposed runs. In refineries and chemical plants a lead-alloy sheath keeps hydrocarbons out; a polyamide sheath protects against termites. The catalogue lists both on request. In hazardous areas, use Ex-certified glands suited to the cable - armoured or unarmoured.

Sheath and fire behaviour. Use FRLS or LSOH sheaths in control rooms, tunnels and enclosed plants where smoke matters.

Where it is used

• Field instruments to control rooms - transmitters, analysers and switches
• DCS and PLC signal wiring in power, steel and cement plants
• Refineries, petrochemical and fertiliser plants
• Water treatment and pumping stations
• Pharmaceutical and food plants

Other Polycab instrumentation, data and fibre cables

• Polycab Instrumentation Cable (this page) - pairs, triads and quads, individually / overall screened, price on request
• Polycab VFD Cable - 3+3(E) and 4 core screened drive cable, price on request
• Polycab Thermocouple Extension Cable - KX and JX extension cable, price on request
• Polycab Bus Cable - Profibus and Fieldbus cable, price on request
• Polycab BMS Cable - screened multicore BMS cable, price on request
• Polycab Data Cable - RS485, LIYY and LIYCY, price on request
• Polycab Optical Fibre Cable - OFC for telecom, BharatNet, smart city and enterprise networks, price on request

Related products

• HEX Nickel-Plated Brass Cable Glands - IP68 Metric & PG Thread, Plus PG Unarmoured Glands; for the unarmoured versions in safe (non-hazardous) areas
• HEX CW Brass Cable Glands - IP66 Weatherproof Armoured Cable Glands, 16S to 90L; for the armoured versions in safe (non-hazardous) areas
• Adels-Contact DS - 12-Pole Screw Terminal Strips with Wire Protector, 2.5 to 16 sq mm, UL/CSA

Frequently asked questions

What is the price of the Polycab Instrumentation Cable?

The Polycab Instrumentation Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

What does IS-OS mean?

Individually screened, overall screened: each pair (or triad) has its own screen and the whole bundle has another. It is the usual choice for multi-pair analogue cables, because it greatly reduces crosstalk between pairs and outside noise.

Where should the screen be earthed?

Usually at one end only, commonly the control-room end (through the drain wire on foil screens) - earthing both ends can let an earth-loop current flow in the screen. Follow your plant's instrumentation earthing practice.

Can it carry power?

No. Instrumentation cables are for signal circuits; BS EN 50288-7 cables have maximum rated voltages of 90, 300 or 500 V AC and must not be connected directly to the mains supply.

Why a lead or polyamide sheath?

A lead-alloy sheath keeps hydrocarbons and chemicals out of the cable in refineries and chemical plants; a polyamide (nylon) sheath protects against termites. Both are available where required.

Where can I buy the Polycab Instrumentation Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the number of pairs, triads or quads, the conductor size, the insulation (PE, XLPE, PVC, XLPO, EPR or silicone rubber), the screening, armoured or not, the sheath type, the length and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
