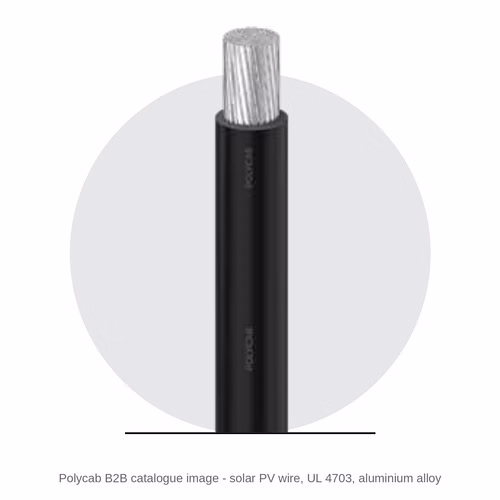

Polycab Solar PV Wire UL 4703 – Aluminium Alloy Conductor, E-Beam XLPO, Halogen-Free, Direct Burial, NEC 690

The Polycab Solar PV Wire UL 4703 is a photovoltaic wire with an aluminium alloy conductor and electron-beam cross-linked polyolefin insulation, halogen-free and flame-retardant, rated for direct burial, sunlight and wet and dry locations. Polycab's catalogue lists it for outdoor solar use as per UL 4703 and NEC Article 690. It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• Your project follows US practice (UL listing, NEC Article 690).
• You know the voltage rating needed - UL 4703 PV wire is rated 600, 1000 or 2000 V.
• The lugs, connectors and terminals are rated for aluminium conductors.
• You have sized the aluminium conductor to NEC 690.8 (156 % of the short-circuit current) and for voltage drop.

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Solar PV Wire UL 4703
• Type: photovoltaic (PV) wire to UL 4703
• Conductor: aluminium alloy
• Insulation: electron-beam cross-linked polyolefin, halogen-free, flame-retardant
• Ratings: wet and dry locations, direct burial, sunlight resistant, weatherproof
• Voltage: not printed - UL 4703 PV wire is rated 600, 1000 or 2000 V
• Standards: UL 4703; installation to NEC Article 690
• Source: Polycab B2B all-products catalogue (2025), p 15

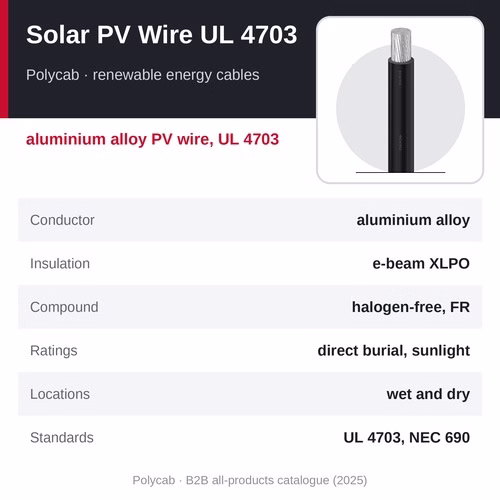

Construction and standards

• Conductor: aluminium alloy
• Insulation: electron-beam cross-linked polyolefin (XLPO), halogen-free, flame-retardant
• UL 4703: US photovoltaic wire - single conductor, sunlight resistant, rated 600, 1000 or 2000 V
• NEC Article 690: the US National Electrical Code article for solar photovoltaic systems
• Source: Polycab B2B all-products catalogue (2025), p 15

Why choose the Polycab Solar PV Wire UL 4703

• Aluminium alloy conductor - lighter and lower in cost than copper for long DC runs
• Electron-beam cross-linked polyolefin insulation
• Halogen-free and flame-retardant
• Rated for direct burial, sunlight and wet and dry locations
• Designed to UL 4703 for projects built to US (NEC 690) practice; the catalogue does not state a UL listing, so ask us whether it carries the listing your project needs before you specify it

How to choose and specify it

Aluminium on the DC side. Aluminium needs a larger cross-section than copper for the same current but is much lighter and usually cheaper per ampere, which pays on long DC runs in large plants.

Terminations. Use connectors and lugs rated for aluminium, clean and seal the conductor as the connector maker instructs, and tighten to the stated torque - poor aluminium joints are a common cause of hot spots. On NEC projects, use lugs and connectors listed and marked for aluminium (for example to UL 486A-B); ask us to confirm the listing of the lugs you choose.

Standard. UL 4703 covers PV wire for systems wired to NEC Article 690. Tell us the voltage rating and the listing marks your project needs.

Where it is used

• Utility-scale solar plants built to US specifications
• Long DC runs from combiner boxes to inverters
• Direct-buried DC circuits
• Export projects to markets that follow UL and NEC
• Wet and dry outdoor locations

Other Polycab renewable energy cables

• Polycab Windmill Cable - torsion-resistant wind turbine cables, price on request
• Polycab Solar DC Cable - single-core PV cable, EN 50618 / IEC 62930, price on request
• Polycab Solar H1Z2Z2-K Twin Cable - flat twin H1Z2Z2-K PV cable, price on request
• Polycab Solar PV Wire UL 4703 (this page) - aluminium alloy PV wire, UL 4703, price on request
• Polycab Solar DC Feeder Cable - single-core XLPE DC feeder, AS/NZS 5000.1, price on request
• Polycab Solar MV Cable - RH5Z1-OL, AS/NZS 1429.1 and UL 1072 MV-90 / MV-105, price on request

Related products

• HEX Aluminium Cable Lugs & Through Connectors - 16 to 300 sq mm
• HEX Bimetallic Aluminium-Copper Cable Lugs - Copper Palm, 10 to 630 sq mm and 4-Hole to 1300

Frequently asked questions

What is the price of the Polycab Solar PV Wire UL 4703?

The Polycab Solar PV Wire UL 4703 is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

Why an aluminium conductor?

Aluminium is lighter and usually costs less than copper for the same current rating, which matters on long DC runs. It needs a larger size and connectors rated for aluminium.

What voltage is it rated for?

The catalogue does not print it. UL 4703 PV wire is rated 600, 1000 or 2000 V; we confirm the rating with Polycab.

Can it be buried directly?

Yes - Polycab rates it for direct burial, sunlight and wet and dry locations.

Where can I buy the Polycab Solar PV Wire UL 4703 in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the conductor size, the voltage rating, the length and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
