Polycab Solar MV Cables – Single Core, RH5Z1-OL (IEC 60502-2), AS/NZS 1429.1, UL 1072 MV-90 and MV-105 TR-XLPE

The Polycab Solar MV Cable range covers four single-core medium-voltage cables for the AC side of solar plants: RH5Z1-OL to IEC 60502-2, an XLPE type to AS/NZS 1429.1, and MV-90 and MV-105 tree-retardant XLPE types to UL 1072. It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The cable is for the MV AC side - from the inverter transformer (inverter station) to the plant substation.
• You know which standard your project follows: IEC 60502-2, AS/NZS 1429.1 or UL 1072.
• You know the voltage grade, conductor size and material for each circuit.
• The terminations and joints will be for the same cable type and grade.

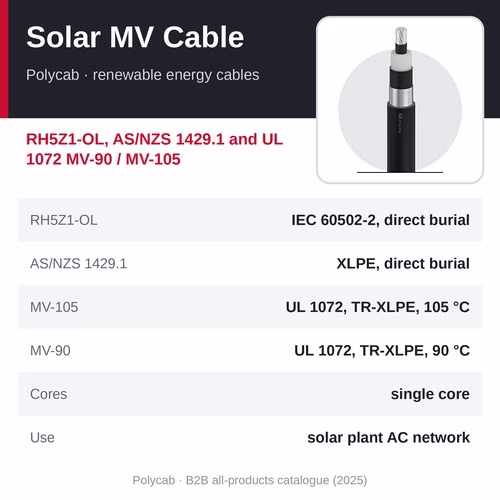

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Solar MV Cable
• Type: single-core medium-voltage (MV) cables for solar plants
• Types: RH5Z1-OL to IEC 60502-2; XLPE to AS/NZS 1429.1; MV-105 and MV-90 TR-XLPE to UL 1072
• Insulation: cross-linked (XLPE); tree-retardant XLPE (TR-XLPE) on the UL 1072 types
• Installation: all four for direct burial; the catalogue also names ducts and wet or dry locations for the UL 1072 types
• Voltage grade: not printed in the catalogue - confirmed for your collection network
• Standards: IEC 60502-2, AS/NZS 1429.1, UL 1072
• Source: Polycab B2B all-products catalogue (2025), pp 16-17

Construction and standards

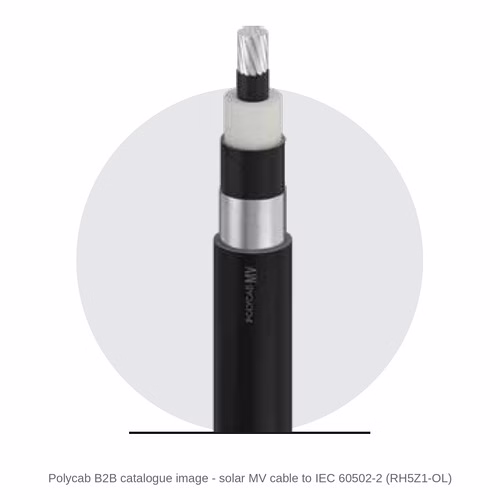

• RH5Z1-OL (IEC 60502-2): single core, cross-linked insulation, for direct burial

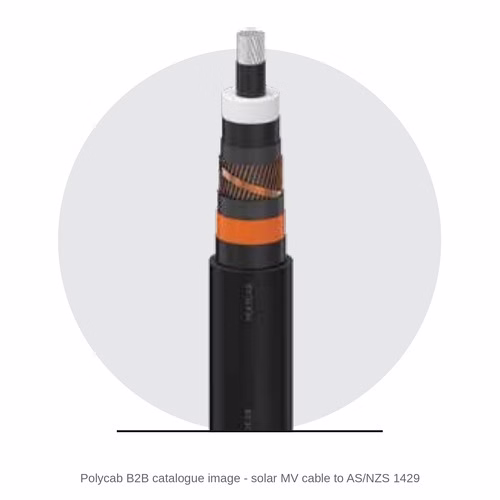

• AS/NZS 1429.1 type: single core, cross-linked insulation, for direct burial

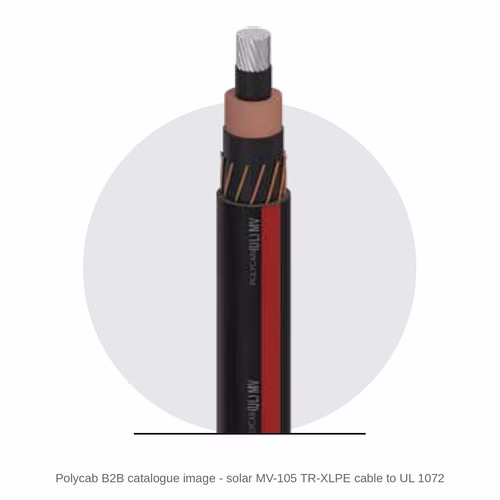

• UL 1072 MV-105: single core, tree-retardant XLPE, wet or dry locations, ducts or direct burial; 105 °C rating

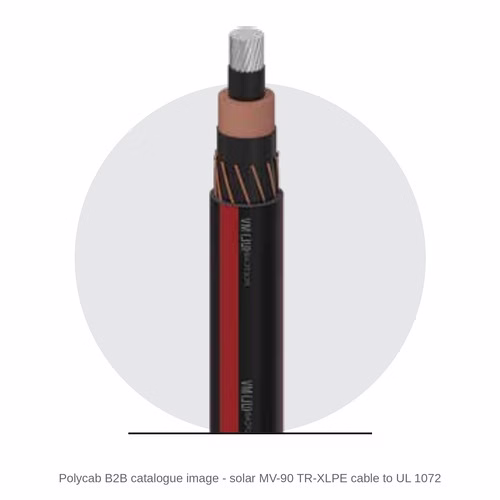

• UL 1072 MV-90: single core, tree-retardant XLPE, wet or dry locations, ducts or direct burial; 90 °C rating
• IEC 60502-2: extruded-insulation power cables from 6 kV (Um 7.2 kV) up to 30 kV (Um 36 kV)
• AS/NZS 1429.1: Australian and New Zealand polymeric insulated cables from 1.9/3.3 (3.6) kV to 19/33 (36) kV
• UL 1072: US medium-voltage power cables (rating tables from 2,400 V to 35,000 V); MV-90 and MV-105 mark 90 °C and 105 °C
• Note - AS/NZS 1429: the catalogue prints "AS NZS 1429" without a part number; Part 1 (AS/NZS 1429.1) is the polymeric MV cable standard
• Source: Polycab B2B all-products catalogue (2025), pp 16-17

Why choose the Polycab Solar MV Cable

• Four MV types for IEC, Australian and US project specifications
• Cross-linked insulation - tree-retardant XLPE on the UL 1072 types
• All four rated for direct burial; the UL 1072 types also listed for ducts and wet or dry locations
• Single core, for the AC collection network of solar plants

How to choose and specify it

Which type. Pick the type your project specification calls for: RH5Z1-OL where it names this design (common on Spanish and other European-style projects), the AS/NZS 1429.1 type for Australian projects, and UL 1072 MV-90 or MV-105 for projects built to US practice. For IS 7098 (Part 2) specifications, see the Polycab MV Power Cable.

MV-90 or MV-105. In UL 1072, MV-90 and MV-105 mark a maximum conductor temperature of 90 °C or 105 °C; the higher rating carries more current in hot ground or where the design needs it.

RH5Z1-OL. In the Spanish (UNE) cable code used for this type, R means XLPE insulation, H5 an aluminium-tape screen, Z1 a polyolefin sheath and OL longitudinal water-tightness (as cable makers explain the code); we confirm the construction with Polycab.

Sizing. Size each circuit for its current in the ground, the grouping in the trench and the fault level. Tell us the earth-fault current and how the screens will be bonded (single point, both ends or cross-bonded), and send the single-line diagram and the trench layout.

Terminations. Use aluminium lugs on aluminium conductors (bimetallic lugs where they meet copper) and copper lugs on copper conductors, fitted inside a termination kit for the cable's voltage grade.

Where it is used

• Solar plant AC collection networks - inverter transformers to the pooling substation
• Direct-buried MV circuits in solar parks
• Hybrid solar and battery storage plants
• Projects built to IEC, Australian or US standards
• Wet locations and ducted runs (UL 1072 types)

Other Polycab renewable energy cables

• Polycab Windmill Cable - torsion-resistant wind turbine cables, price on request
• Polycab Solar DC Cable - single-core PV cable, EN 50618 / IEC 62930, price on request
• Polycab Solar H1Z2Z2-K Twin Cable - flat twin H1Z2Z2-K PV cable, price on request
• Polycab Solar PV Wire UL 4703 - aluminium alloy PV wire, UL 4703, price on request
• Polycab Solar DC Feeder Cable - single-core XLPE DC feeder, AS/NZS 5000.1, price on request
• Polycab Solar MV Cable (this page) - RH5Z1-OL, AS/NZS 1429.1 and UL 1072 MV-90 / MV-105, price on request

Related products

• HEX Heavy-Duty Long Barrel Aluminium Lugs for XLPE Cable - 25 to 1000 sq mm
• HEX Bimetallic Aluminium-Copper Cable Lugs - Copper Palm, 10 to 630 sq mm and 4-Hole to 1300
• HEX Tubular Compression Copper Cable Lugs & Long Barrel Connectors - up to 33 kV, 6 to 1000 sq mm

Frequently asked questions

What is the price of the Polycab Solar MV Cable?

The Polycab Solar MV Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

What is the difference between MV-90 and MV-105?

They are UL 1072 ratings: MV-90 for a maximum conductor temperature of 90 °C and MV-105 for 105 °C.

What does TR-XLPE mean?

Tree-retardant cross-linked polyethylene - an XLPE compound made to resist water treeing in wet or buried MV service.

Which voltage grades are available?

The catalogue does not print them. Tell us your collection voltage, the standard, how the network is earthed and how quickly an earth fault is cleared, and we confirm the grade with Polycab.

Where can I buy the Polycab Solar MV Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the cable type (standard), the voltage grade, the conductor size and material, the length and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
