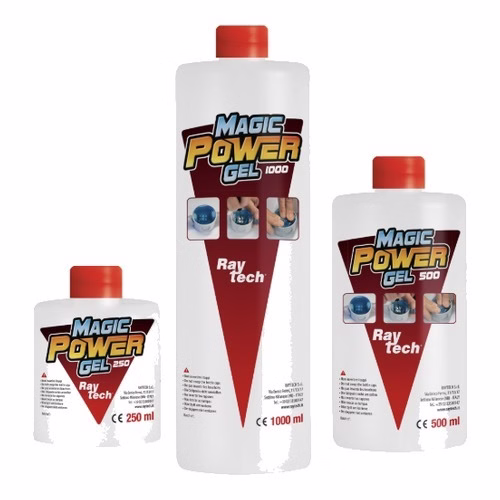

Re-usable Two-Component Insulating Gel, Single Bottle, 250 ml - Raytech Magic Power Gel 250 (MAGICPOWER-250)

250 ml, 1 single two-component bottle. Raytech Magic Power Gel 250 is a two-component insulating gel in a single twin-compartment bottle: very sticky and self-amalgamating, it can be cast into a casing or, once cured, pressed in by hand - even on walls and ceilings - and left-over gel can be kept and re-used. Item MAGICPOWER-250, list price Rs 3,245 per bottle - about Rs 1,298 per 100 ml.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Magic Power Gel is for power, telecom and signalling connections, gives IP68 in a suitable casing and is not classified as hazardous under CLP. It is the smallest pack; the next size up is Magic Power Gel 500 (500 ml).

Is this the right one for you?

Check these four things before you order:

• You want an insulating gel you can pour or apply by hand, and keep the left-over for the next job.
• The quantity suits the job: 250 ml (1 single two-component bottle). Larger bottles work out cheaper per litre.
• The casing is suitable - the gel gives IP68 only inside a suitable casing.
• The connection works within -60 °C to +200 °C.

At a glance

• Price: Rs 3,245 per bottle
• Item code: MAGICPOWER-250
• Quantity: 250 ml
• Package: 1 single two-component bottle
• Works out to: about Rs 1,298 per 100 ml
• Cross-linking time: about 15 minutes at 25 °C
• Application: casting, or by hand once cured - also on walls and ceilings
• Degree of protection: IP68 in a suitable casing

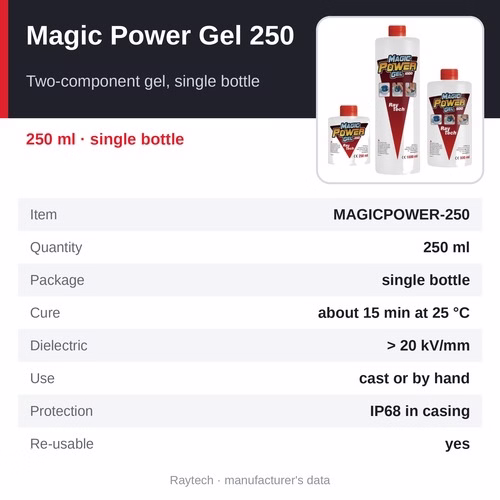

Specifications

• Product: Raytech Magic Power Gel 250
• Item code: MAGICPOWER-250
• Quantity: 250 ml
• Package contents: 1 single two-component bottle
• Dielectric strength: > 20 kV/mm
• Cross-linking time: about 15 minutes at 25 °C
• Volume resistivity: > 2 x 10^15 Ω·cm
• Operating temperature: -60 °C to +200 °C
• Overload temperature: up to 250 °C for short periods
• Stabilised against: mould and UV
• Degree of protection: IP68 when cast in a suitable casing
• Gel: UL 94-HB
• Classification: not classified as hazardous under the CLP Regulation; no shelf life

Why choose Magic Power Gel

• Very sticky - exceptional sealing in any condition, better resistance to pressure, effective even on walls and ceilings
• Self-amalgamating - once cross-linked it bonds to itself into one compact mass, so it can be applied in layers
• Zero waste - left-over gel keeps its performance and can be used on the next job
• One compact bottle - both components in a twin-compartment bottle
• Re-usable and re-enterable, even after long service
• For power, telecom and signalling connections
• Safe - not classified as hazardous under CLP; no shelf life

How to use it

1. Dispense and mix the two components from the twin-compartment bottle (the 500 and 1000 ml packs include a jug and a wooden spatula).

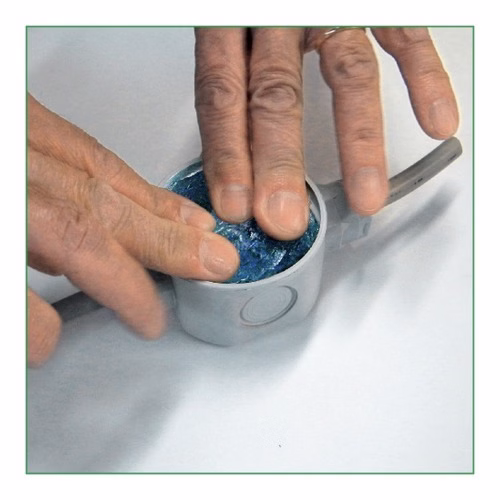

2. Cast it into the casing around the connection, or let it cross-link (about 15 minutes at 25 °C) and press it round the connection by hand - also on walls and ceilings.
3. Keep any left-over gel for the next job; to re-enter the connection later, open the casing and lift the gel away.

Where it is used

• Junction boxes and joint shells on power cables
• Telecom and signalling connections
• Connections on walls and ceilings, where a pourable gel would run
• Maintenance work where the same gel is re-used on the next job

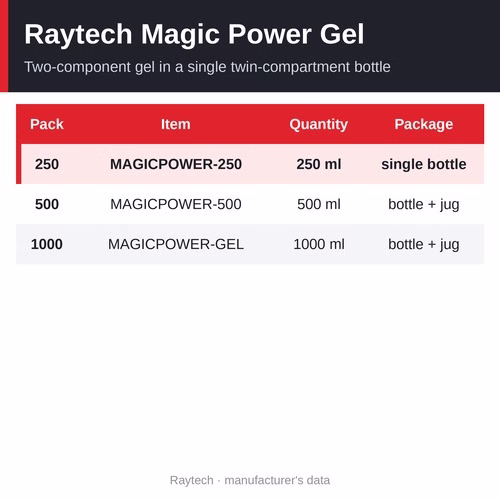

Other sizes and versions

The Raytech Magic Power Gel overview page compares all 3 side by side.

• Magic Power Gel 250 - 250 ml, 1 single two-component bottle (about Rs 1,298 per 100 ml) - Rs 3,245 per bottle (this page)
• Magic Power Gel 500 - 500 ml, 1 single two-component bottle, 1 jug and 1 wooden spatula (about Rs 1,272 per 100 ml) - Rs 6,359 per bottle
• Magic Power Gel 1000 - 1000 ml, 1 single two-component bottle, 1 jug and 1 wooden spatula (about Rs 1,172 per 100 ml) - Rs 11,723 per bottle

Related products

• Raytech Magic Gel - two-component gel for joint shells and enclosures
• Raytech Wonder Gel - ready-to-use gel in a cartridge for boxes you already have
• Raytech Magic Rubber - two-component liquid rubber that cures in minutes
• All Raytech insulating filler gels

Frequently asked questions

How much does Magic Power Gel 250 fill?

250 ml fills roughly that volume of free space in a casing. Because left-over gel can be kept and re-used, a larger bottle wastes nothing.

What is in the Magic Power Gel 250 pack?

1 single two-component bottle - 250 ml in total. The list price is Rs 3,245 per pack, about Rs 1,298 per 100 ml.

Can Magic Power Gel be re-used?

Yes - left-over gel keeps its performance and can be used on the next job, and connections stay re-enterable.

Can it be applied by hand?

Yes. Once cross-linked it can be pressed round a connection by hand, and it is sticky enough for wall and ceiling applications.

How long does it take to cross-link?

About 15 minutes at 25 °C.

Where can I buy Raytech Magic Power Gel 250 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech insulating gels and rubbers across India. The list price is Rs 3,245 per bottle; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Magic Power Gel 250 (item MAGICPOWER-250) is Rs 3,245 per bottle. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
