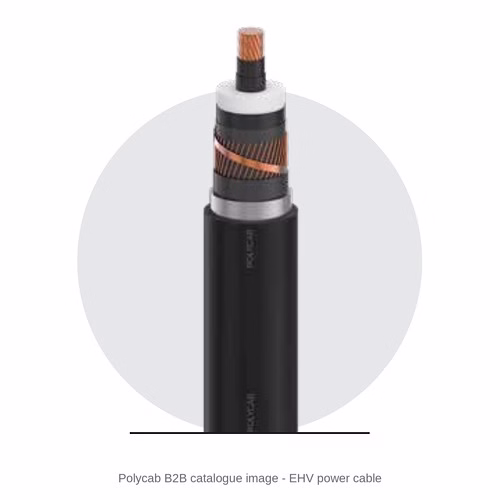

Polycab EHV Power Cable – Single Core XLPE, Copper / Aluminium, IS 7098-3 / IEC 60840 / IEC 62067

The Polycab EHV Power Cable is a single-core XLPE cable for extra-high-voltage transmission and sub-transmission circuits above 33 kV, made with a copper or aluminium conductor, water-blocking tapes, a copper screen - alone or with a poly-aluminium laminate or a lead sheath - or a corrugated aluminium sheath, and an HDPE outer sheath. Polycab's catalogue lists it as generally conforming to IS 7098 (Part 3), IEC 60840, IEC 62067 and ICEA S-108-720. It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The circuit runs above 33 kV - for 3.3 to 33 kV class circuits see the MV power cable.
• You have the system voltage and Um, the conductor material and size, and the fault current the metallic layer must carry.
• The route is known: direct buried, in ducts, troughs or a tunnel, with its length and joint bays.
• The joints, terminations and sheath bonding will be designed together with the cable.

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab EHV Power Cable
• Type: single-core XLPE extra-high-voltage (EHV) power cable
• Conductor: copper or aluminium
• Insulation: XLPE, with extruded semi-conducting conductor and insulation screens
• Metallic layer: copper screen with semi-conducting water-blocking tape - alone, or with a poly-aluminium laminate or an extruded lead sheath over it - or a corrugated aluminium sheath; we confirm the design with Polycab
• Outer sheath: extruded high-density polyethylene (HDPE)
• Voltage class: not printed in the catalogue - the standards listed run from above 30 kV (IEC 60840) to 500 kV (IEC 62067, ICEA S-108-720), with IS 7098 (Part 3) covering 66 to 220 kV; we confirm with Polycab the class and size it supplies for your circuit
• Standards: IS 7098 (Part 3), IEC 60840, IEC 62067, ICEA S-108-720
• Source: Polycab B2B all-products catalogue (2025), p 13

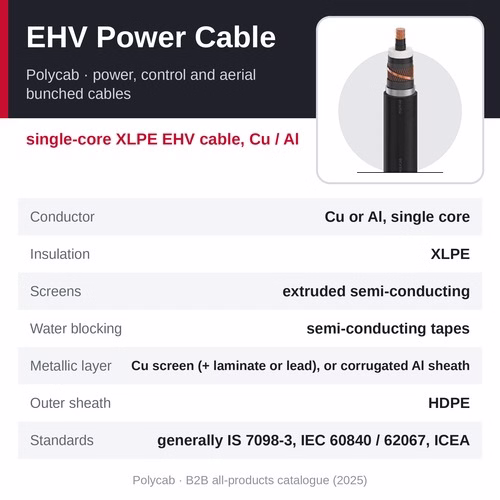

Construction and standards

• Conductor: copper or aluminium
• Cores: single core
• Conductor screen: semi-conducting tape, then an extruded semi-conducting compound
• Insulation: XLPE (cross-linked polyethylene)
• Insulation screen: extruded semi-conducting compound, then a semi-conducting water-blocking tape
• Metallic screen and sheath: copper screen with semi-conducting water-blocking tape - alone, or with a poly-aluminium laminate or an extruded lead sheath over it - or, as the alternative, a corrugated aluminium sheath
• Outer sheath: extruded high-density polyethylene (HDPE)

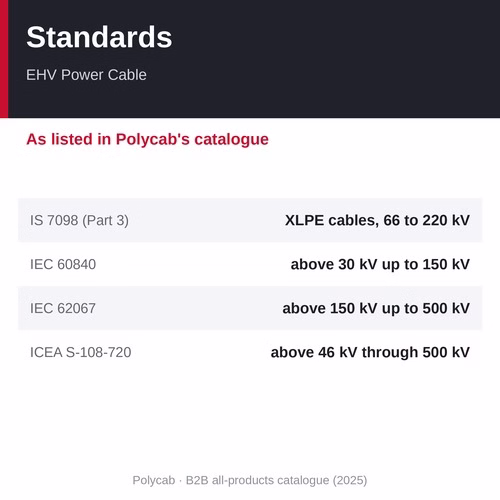

• IS 7098 (Part 3): XLPE insulated thermoplastic sheathed cables from 66 kV up to and including 220 kV
• IEC 60840: extruded-insulation power cables above 30 kV (Um 36 kV) up to 150 kV (Um 170 kV)
• IEC 62067: extruded-insulation power cables above 150 kV (Um 170 kV) up to 500 kV (Um 550 kV)
• ICEA S-108-720: North American extruded-insulation power cables rated above 46 kV through 500 kV AC
• Source: Polycab B2B all-products catalogue (2025), p 13

Why choose the Polycab EHV Power Cable

• XLPE insulation between extruded semi-conducting screens - the standard construction for modern EHV cable
• Semi-conducting water-blocking tapes under the metallic layer, to stop water travelling along the cable
• A choice of metallic layer: copper screen alone or with a poly-aluminium laminate or a lead sheath, or a corrugated aluminium sheath
• Tough extruded HDPE outer sheath
• Copper or aluminium conductor
• Generally conforming to Indian, IEC and North American EHV standards

How to choose and specify it

System data. An EHV cable is engineered for its circuit. Send us the system voltage and Um, the load current, the earth-fault current and its duration, the route length and laying method, the soil thermal resistivity and ground temperature, and whether you prefer copper or aluminium.

Metallic layer. Your specification and the route usually decide whether the cable needs a radial water barrier - a poly-aluminium laminate, an extruded lead sheath or a corrugated aluminium sheath - or a copper screen alone. Many EHV specifications, especially for buried or wet routes, call for a radial barrier; use a copper screen alone only where your specification allows it. We confirm the design with Polycab.

Standard. Name the standard in your specification - IS 7098 (Part 3) for 66 to 220 kV in India, IEC 60840 above 30 kV up to 150 kV, IEC 62067 above 150 kV up to 500 kV, or ICEA S-108-720 for North American practice - and ask for the type test report for your voltage class.

Accessories and installation. Joints, terminations, link boxes and the sheath bonding arrangement (for example cross-bonding on long routes) are designed with the cable, and installed and tested by trained EHV jointers.

Where it is used

• Transmission and sub-transmission links above 33 kV
• Grid substations and power-plant evacuation circuits
• Large steel, cement and process plants taking an EHV supply
• Underground transmission in cities where overhead lines are not possible
• Export links from large solar and wind parks

Other Polycab power, control and aerial bunched cables

• Polycab EHV Power Cable (this page) - single-core XLPE EHV cable, Cu / Al, price on request
• Polycab MV Power Cable - XLPE / EPR MV (HT) cable, 35 to 1200 sq mm, price on request
• Polycab LV Power Cable - 1.1 kV PVC / XLPE power cable, 1.5 to 1000 sq mm, price on request
• Polycab LT Control Cable - 1.1 kV control cable, 2 to 100 cores, price on request
• Polycab HT Aerial Bunched Cable - HT ABC with screened XLPE cores, price on request
• Polycab LT Aerial Bunched Cable - LT ABC on an alloy or ACSR messenger, price on request

Related products

• HEX Heavy-Duty Long Barrel Aluminium Lugs for XLPE Cable - 25 to 1000 sq mm
• HEX HEXPRESS Hydraulic Crimping Tools - Hand, Foot and Remote-Head Tools for Cable Lugs, 10 to 1000 sq mm

Frequently asked questions

What is the price of the Polycab EHV Power Cable?

The Polycab EHV Power Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

Which voltage classes does it cover?

The catalogue lists the standards the EHV cable generally conforms to, rather than a voltage range. Those standards cover 66 to 220 kV (IS 7098 Part 3), above 30 kV up to 150 kV (IEC 60840), above 150 kV up to 500 kV (IEC 62067) and above 46 kV through 500 kV AC (ICEA S-108-720). We confirm with Polycab the voltage class, size and construction it supplies for your circuit.

Copper screen, laminate, lead sheath or corrugated aluminium sheath - which one?

The water-blocking tapes stop water travelling along the cable. A poly-aluminium laminate, a lead sheath or a corrugated aluminium sheath also stops water reaching the insulation from outside (a radial barrier); a copper screen on its own does not. The copper screen or the metallic sheath carries the earth-fault current. Your specification, the fault current and the route decide the design, and we confirm it with Polycab.

Copper or aluminium conductor?

Both are listed. Copper carries more current for a given size; aluminium needs a larger size for the same current but is lighter and usually costs less for the same rating.

Where can I buy the Polycab EHV Power Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the voltage class and Um, the conductor material and size, the metallic layer, the route length, the laying method and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
