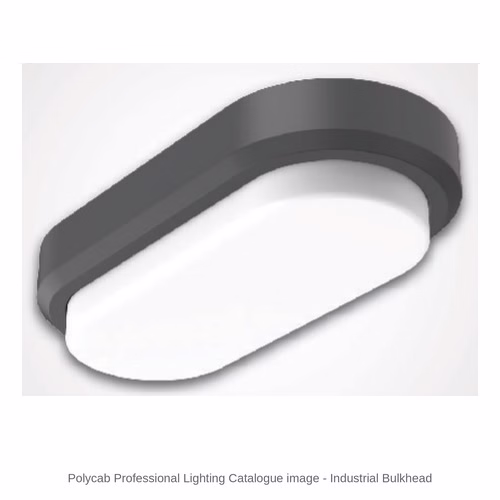

Polycab IP65 Industrial LED Bulkhead Light – 10 and 20 W, 5700 K

The Polycab IP65 Industrial LED Bulkhead Light is an industrial LED bulkhead light for plant walls, boundary walls, building shafts, staircases and outdoor passages, with a pressure die-cast housing and an engineered polycarbonate diffuser.

Polycab lists it at 10 and 20 W in 5700 K cool white (2 models), with 110 lm/W or more, CRI 70 or more and IK08. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab LED bulkhead lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The wattage suits the spot - 10 W or 20 W.
• The colour suits the place - 5700 K cool white.
• It will be fixed to a wall or ceiling surface.
• The protection suits the location - Polycab names it an IP65 bulkhead (its spec icon reads IP66).
• The area is not a hazardous zone (flammable gas, vapour or combustible dust such as coal) - for those areas see the Polycab LED flameproof well glass light.

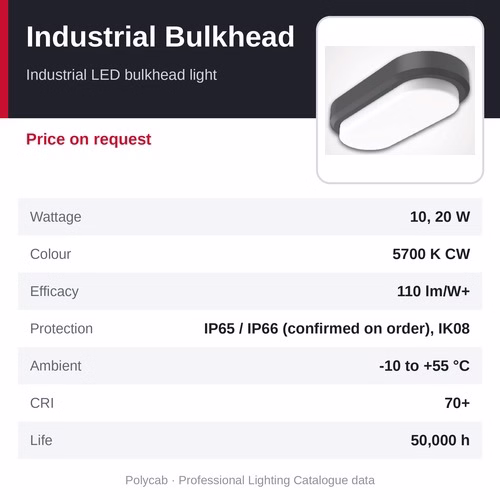

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab IP65 Industrial LED Bulkhead Light
• Type: industrial LED bulkhead light
• Wattage: 10 and 20 W
• Colour temperature: 5700 K cool white
• Efficacy: 110 lm/W or more (Polycab)
• Protection: IP65 (Polycab's name) / IP66 (spec icon) - we confirm it with the order; IK08
• Operating temperature: -10 to +55 °C
• Colour rendering: CRI 70 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Size: about 232 x 105 mm (Polycab drawing, ±5 mm); depth confirmed on order
• Models (2): PCDB 10 W 57 and PCDB 20 W 57
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 67-68

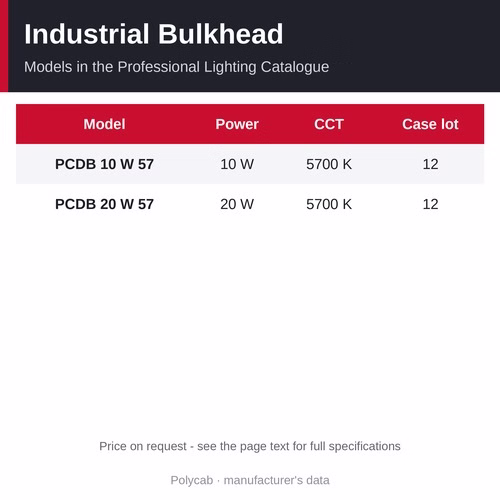

Models and specifications

• PCDB 10 W 57: 10 W, 5700 K, case lot 12 - price on request
• PCDB 20 W 57: 20 W, 5700 K, case lot 12 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 67-68

Why choose the Polycab IP65 Industrial LED Bulkhead Light

• System efficacy of more than 110 lm/W
• Pressure die-cast housing with an engineered polycarbonate diffuser
• Weather- and dust-proof for a long service life
• 3-way connector and mounting accessories for quick installation
• IK08 impact protection, CRI 70 or more, THD 10% or less

How to choose and fit it

Wattage. 10 W suits doorways, shafts and staircases; 20 W suits boundary walls, passages and plant walls.

Fitting. Fix it to the wall or ceiling with the accessories supplied and connect it through the 3-way connector. It runs on 220 to 240 V AC. Isolate the supply before work; a qualified electrician should install and earth the fitting.

Size. Polycab's drawing shows it as about 232 x 105 mm (±5 mm); the depth label is not legible, so we confirm it with the order.

Other bulkheads. For homes and small premises, see the Polycab LED Bulkhead Light (10 and 20 W, IP54).

Where it is used

• Manufacturing plants
• Periphery and boundary walls
• Building shafts and staircases
• Outdoor passages and service areas
