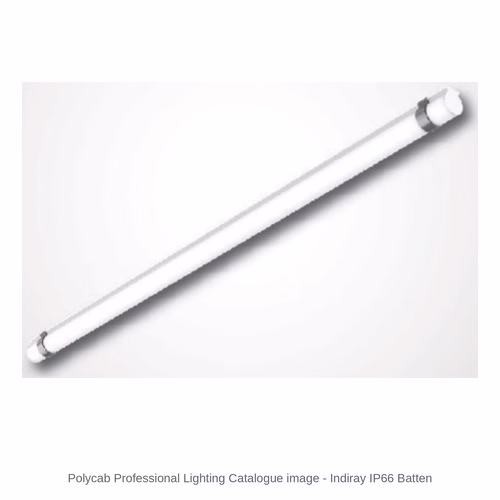

Polycab Indiray IP66 LED Batten – 20 and 40 W, 6500 K

The Polycab Indiray IP66 LED Batten is an IP66 LED batten for wet, dusty and semi-outdoor places - warehouses, parking areas, factories and railway platforms - with a durable, corrosion-proof polycarbonate housing.

Polycab lists it at 20 and 40 W in 6500 K cool white (2 models), with 110 lm/W or more, CRI 80 or more, IP66, IK08 and an operating range of -10 to +55 °C. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab IP66 LED battens from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The place is wet, dusty or semi-outdoor - the batten is rated IP66 against dust and water jets.
• The wattage suits the area - 20 W or 40 W.
• The colour suits the work - 6500 K cool white.
• The ambient temperature stays within -10 to +55 °C.
• The area is not a hazardous zone (flammable gas, vapour or combustible dust such as coal) - IP66 covers ordinary dust and water; for those areas see the Polycab LED flameproof well glass light.

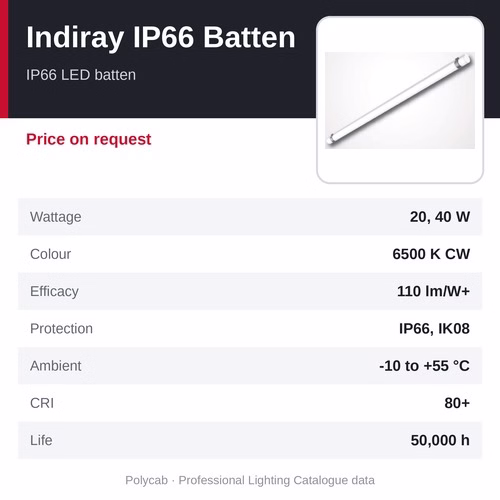

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Indiray IP66 LED Batten
• Type: IP66 LED batten
• Wattage: 20 and 40 W
• Colour temperature: 6500 K cool white
• Efficacy: 110 lm/W or more (Polycab)
• Protection: IP66, IK08
• Operating temperature: -10 to +55 °C
• Colour rendering: CRI 80 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Size: 1224 mm long, about 75 x 75 mm in section (Polycab drawing, ±5 mm)
• Models (2): PCWPB 20W LED CW and PCWPB 40W LED CW
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 65-66

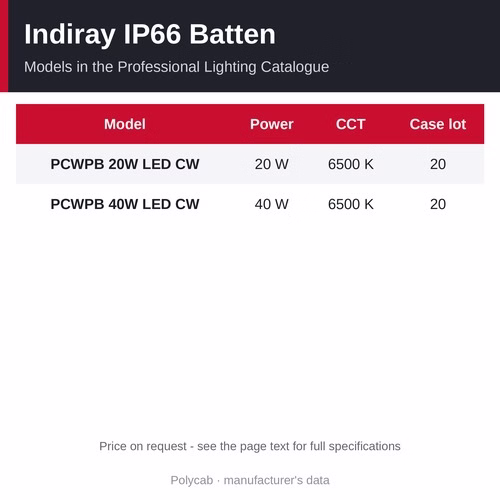

Models and specifications

• PCWPB 20W LED CW: 20 W, 6500 K, case lot 20 - price on request
• PCWPB 40W LED CW: 40 W, 6500 K, case lot 20 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 65-66

Why choose the Polycab Indiray IP66 LED Batten

• Fully protected against dust and water jets (IP66), with IK08 impact protection
• Efficient LED module and optics for uniform light - 110 lm/W or more
• Compact design for large spaces as well as task areas
• Durable polycarbonate housing that resists corrosion
• CRI 80 or more, THD 10% or less

How to choose and fit it

Wattage. 20 W suits stores, stairways, parking bays and walkways; 40 W suits larger work areas, platforms and sheds. Send us the area for a layout.

Fitting. Fix the batten to the wall, ceiling or structure near the supply point and connect it with the cable entry sealed. It runs on 220 to 240 V AC. Isolate the supply before work; a qualified electrician should install it and connect the earth where the fitting has an earth terminal.

Size. Polycab's drawing shows it as 1224 mm long and about 75 x 75 mm in section (±5 mm); one drawing is shown for both wattages.

Where it fits. Use it where an ordinary batten would suffer from washing, rain, dust or corrosion - wash areas, car parks, platforms and process sheds. It is not meant for high-pressure hot wash-down or strong solvent or alkaline cleaners - ask us about those.

Where it is used

• Warehouses
• Parking lots
• Factories
• Railway platforms and sheds
• Wash areas and semi-outdoor passages

Other Polycab linear and batten series

• Polycab Indiray IP66 LED Batten - IP66 LED batten, 20 and 40 W, price on request (this page)
• Polycab Suspended LED Linear Profile Light - LED linear profile light, 28, 36 and 56 W, price on request
• Polycab Recessed LED Linear Profile Light - LED linear profile light, 28, 36 and 56 W, price on request

Related products

• Polycab 1x4 LED Linear Troffer - LED linear troffer, 36 W, price on request
• Polycab Full Glow 2x2 LED Troffer (Recessed) - LED troffer, 36 W, price on request
• Polycab LED Well Glass Light - LED well glass light, 30 to 70 W, price on request
• Polycab IP65 Industrial LED Bulkhead Light - industrial LED bulkhead light, 10 and 20 W, price on request
• Polycab High Wattage LED Batten - LED batten, 24, 30 and 40 W, 3000 / 6500 K
• Polycab Neo Slim LED Batten - LED batten, 20 W, 3000 / 4000 / 6500 K

Frequently asked questions

What is the price of the Polycab Indiray IP66 LED Batten?

Polycab does not publish an MRP for its professional lighting range, so the Indiray IP66 Batten is supplied at a price on request. Call +91 9340081159 with the model, for example PCWPB 20W LED CW, the quantity and the delivery location for a quotation.

Can it be used outdoors?

Polycab lists it for indoor and semi-outdoor use, such as warehouses, car parks, factories and railway platforms. For walls fully exposed to sun and rain, use an outdoor fitting such as the Polycab IP65 Industrial LED Bulkhead Light or a flood light.

What is the difference from a normal batten?

A normal indoor batten is not sealed. This batten is IP66 dust-tight and water-jet protected, IK08 impact rated and corrosion-proof. It is not a flameproof fitting.

Where can I buy the Polycab Indiray IP66 LED Batten in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab IP66 LED battens all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Indiray IP66 Batten is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCWPB 20W LED CW), the quantity and the delivery location, and we will confirm the price, availability and lead time.
