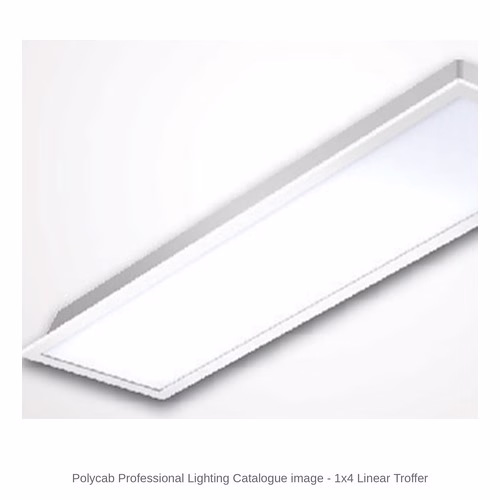

Polycab 1x4 LED Linear Troffer – Recessed and Surface, 36 W, 5700 K, IP20

The Polycab 1x4 LED Linear Troffer is a 1 ft x 4 ft LED linear troffer in recessed and surface-mounted versions - a low-profile, powder-coated CRCA steel fitting for offices, schools and banks, also suited to ceilings with little plenum space.

Polycab lists it at 36 W in 5700 K cool white, recessed (PCGLL) and surface mounted (PCGLS), with 4000 K neutral white also available, 100 lm/W or more, CRI 80 or more and IP20. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab LED troffers from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• Your ceiling takes a 1 ft x 4 ft fitting - a lay-in grid (we confirm the fit - see Size) or a cut PoP ceiling for the recessed version, or an open ceiling for the surface version.
• About 36 W per fitting suits your lighting layout.
• The colour suits the room - 5700 K cool white, or 4000 K neutral white to order.
• The space is indoors and dry - the troffer is rated IP20.

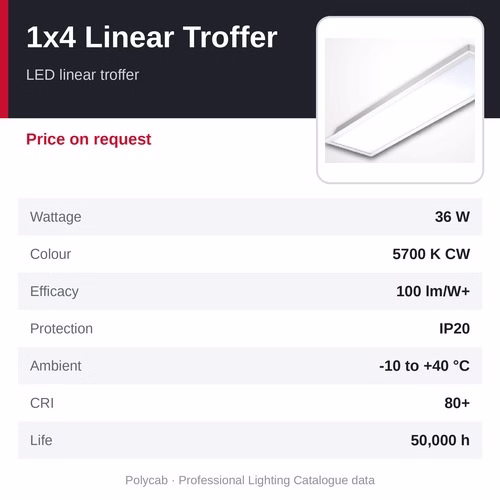

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab 1x4 LED Linear Troffer
• Type: LED linear troffer
• Wattage: 36 W
• Colour temperature: 5700 K cool white
• Efficacy: 100 lm/W or more (Polycab)
• Protection: IP20
• Operating temperature: -10 to +40 °C
• Colour rendering: CRI 80 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Size: about 1213 x 303 mm overall (Polycab drawing, ±5 mm)
• Models (2): PCGLL 1x4 36 57 (Recess) and PCGLS 1x4 36 57 (surface)
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 37-38

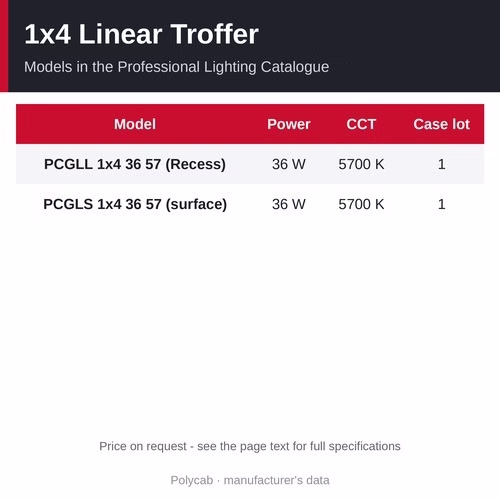

Models and specifications

• PCGLL 1x4 36 57 (Recess): 36 W, recessed, 5700 K, case lot 1 - price on request
• PCGLS 1x4 36 57 (surface): 36 W, surface mounted, 5700 K, case lot 1 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Other colour temperatures: 4000 K neutral white versions are also available (catalogue note) - ask us
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 37-38

Why choose the Polycab 1x4 LED Linear Troffer

• Drop-in design for lay-in grid ceilings; in a PoP ceiling it fits a cut-out with a suitable frame or clips
• Low-profile body for ceilings with a shallow plenum
• Light, sturdy body in powder-coated CRCA steel
• Recessed and surface versions for the same look across different ceilings
• Uniform, comfortable light - 100 lm/W or more, CRI 80 or more, THD 10% or less, open- and short-circuit protection

How to choose and fit it

Layout. Run 1 ft x 4 ft troffers in rows along corridors and over desk rows; the long shape spreads the light along the row. Send us the room size and ceiling height for a layout.

Colour. 5700 K cool white is a crisp white for open-plan work areas and service areas. For offices, meeting rooms and banks, the 4000 K neutral white version (to order) is the balanced choice.

Size. Polycab's drawing shows it as about 1213 x 303 mm overall (±5 mm) - slightly more than a nominal 1200 x 300 mm module, so we confirm the cut-out and the grid fit before you order.

Fitting. The recessed version lays into a 1 ft x 4 ft grid opening (we confirm the grid fit - see Size); in a PoP ceiling, cut the opening to Polycab's cut-out size (we confirm it with the order) and fix the troffer with a suitable PoP frame or clips. The surface version fixes directly to an open ceiling. Both run on 220 to 240 V AC. Isolate the supply before work; a qualified electrician should install and earth the fitting.

Where it is used

• Open offices
• Educational institutes
• Banks
• Corridors and passages

Other Polycab troffer and panel series

• Polycab 1x4 LED Linear Troffer - LED linear troffer, 36 W, price on request (this page)
• Polycab Full Glow 2x2 LED Troffer (Recessed) - LED troffer, 36 W, price on request
• Polycab Full Glow 2x2 LED Troffer (Surface Mounted) - LED troffer, 36 W, price on request
• Polycab LED Clean Room Light (Bottom Opening) - LED clean room light, 20, 36, 45 and 60 W, price on request
• Polycab LED Clean Room Light (Top Opening) - LED clean room light, 20, 36, 45 and 60 W, price on request

Related products

• Polycab Suspended LED Linear Profile Light - LED linear profile light, 28, 36 and 56 W, price on request
• Polycab Recessed LED Linear Profile Light - LED linear profile light, 28, 36 and 56 W, price on request
• Polycab Aluminium Backlit LED Downlight - LED downlight, 12, 15, 18 and 24 W, price on request
• Polycab Edgelit LED Downlight - LED downlight, 12, 15, 18 and 22 W, price on request
• Polycab Deep Drawn 2x2 LED Panel - 2x2 LED panel, 36 W, 3000 / 4000 / 5700 / 6500 K
• Polycab Scintillate Slim Aluminium LED Panel Light - LED panel light, 3 W to 22 W, 3000 / 4000 / 6500 K

Frequently asked questions

What is the price of the Polycab 1x4 LED Linear Troffer?

Polycab does not publish an MRP for its professional lighting range, so the 1x4 Linear Troffer is supplied at a price on request. Call +91 9340081159 with the model, for example PCGLL 1x4 36 57, the quantity and the delivery location for a quotation.

Is it recessed or surface mounted?

Both: PCGLL 1x4 36 57 is the recessed version and PCGLS 1x4 36 57 the surface-mounted version.

Is 4000 K available?

Yes - Polycab notes it is also available in NW (4000 K neutral white); ask us when you order.

Where can I buy the Polycab 1x4 LED Linear Troffer in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab LED troffers all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The 1x4 Linear Troffer is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCGLL 1x4 36 57), the quantity and the delivery location, and we will confirm the price, availability and lead time.
