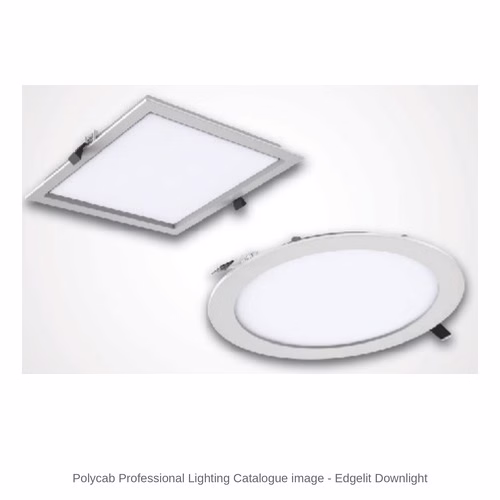

Polycab Edgelit LED Downlight – Recessed, Round and Square, 12, 15, 18 and 22 W, 6500 K, IP20

The Polycab Edgelit LED Downlight is a slim recessed edge-lit LED downlight in round (PCREDL) and square (PCSEDL) shapes, for offices, meeting rooms, hospitals, schools and banks - light enters the panel from its edges, so the face glows evenly without hotspots.

Polycab lists it in 8 models - 12, 15, 18 and 22 W, round and square - in 6500 K cool white, with 4000 K neutral white and 3000 K warm white also available, 100 lm/W or more, CRI 80 or more and IP20. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab LED downlights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• You have, or will cut, a ceiling opening of the listed size - for example 153 mm round or 153 x 153 mm square for the 12 W model.
• Round or square suits the ceiling design.
• The wattage suits the room - 12, 15, 18 or 22 W.
• The colour suits the room - 6500 K cool white, or 4000 K / 3000 K to order.
• The space is indoors and dry - the downlight is rated IP20.

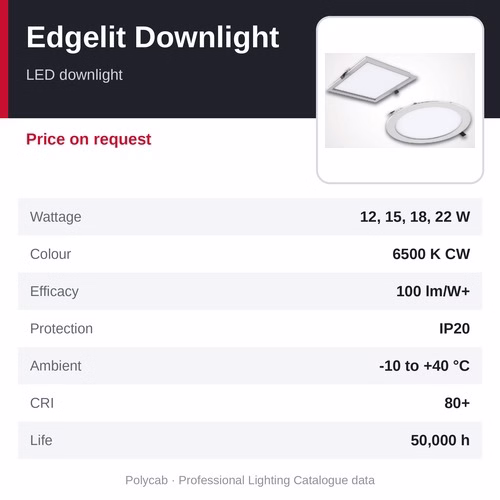

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Edgelit LED Downlight
• Type: LED downlight
• Wattage: 12, 15, 18 and 22 W
• Colour temperature: 6500 K cool white
• Efficacy: 100 lm/W or more (Polycab)
• Protection: IP20
• Operating temperature: -10 to +40 °C
• Colour rendering: CRI 80 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Models (8): PCREDL 12 W 6500 K to PCSEDL 22 W 6500 K
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 41-42

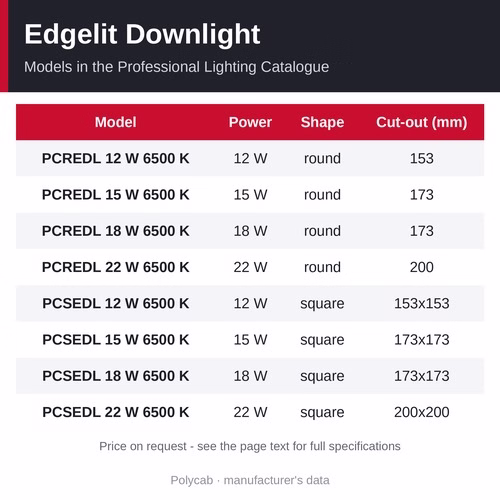

Models and specifications

• PCREDL 12 W 6500 K: 12 W, round, 6500 K, ceiling cut-out 153 mm diameter, case lot 10 - price on request
• PCREDL 15 W 6500 K: 15 W, round, 6500 K, ceiling cut-out 173 mm diameter, case lot 10 - price on request
• PCREDL 18 W 6500 K: 18 W, round, 6500 K, ceiling cut-out 173 mm diameter, case lot 10 - price on request
• PCREDL 22 W 6500 K: 22 W, round, 6500 K, ceiling cut-out 200 mm diameter, case lot 10 - price on request
• PCSEDL 12 W 6500 K: 12 W, square, 6500 K, ceiling cut-out 153 x 153 mm, case lot 10 - price on request
• PCSEDL 15 W 6500 K: 15 W, square, 6500 K, ceiling cut-out 173 x 173 mm, case lot 10 - price on request
• PCSEDL 18 W 6500 K: 18 W, square, 6500 K, ceiling cut-out 173 x 173 mm, case lot 10 - price on request
• PCSEDL 22 W 6500 K: 22 W, square, 6500 K, ceiling cut-out 200 x 200 mm, case lot 10 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Other colour temperatures: 4000 K neutral white and 3000 K warm white versions are also available (catalogue note) - ask us
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 41-42

Why choose the Polycab Edgelit LED Downlight

• Edge-lit panel - consistent light without hotspots or glare
• Ultra-slim profile that fits low ceiling voids
• Round and square shapes for different interiors
• Uses significantly less energy than traditional downlights
• 100 lm/W or more, CRI 80 or more, THD 10% or less, open- and short-circuit protection

How to choose and fit it

Wattage and spacing. In a room about 2.7 to 3 m high, 12 W spaced about 1.2 m apart, or 15 W spaced about 1.2 to 1.5 m apart, suits offices, cabins and meeting rooms; 18 W spaced about 1.5 m apart, or 22 W spaced about 1.5 to 1.8 m apart, suits larger rooms and lobbies - roughly 300 to 500 lux at desk height. The room size sets how many downlights you need; send us the room size and we will confirm it with a layout.

Colour. 6500 K cool white looks the brightest and suits open-plan work areas and service areas where a crisp light is wanted. For offices, meeting rooms and banks, the 4000 K neutral white version (to order) is the balanced choice; 3000 K warm white is also available to order.

Fitting. Cut the ceiling to the listed opening (±5 mm), connect the driver to the supply, and push the downlight up into the opening until its springs hold it. It runs on 220 to 240 V AC. Isolate the supply before work; a qualified electrician should install it and connect the earth where the fitting has an earth terminal.

Where it is used

• Offices and meeting rooms
• Hospitals and clinics
• Educational institutes
• Banks

Other Polycab professional downlight series

• Polycab Aluminium Backlit LED Downlight - LED downlight, 12, 15, 18 and 24 W, price on request
• Polycab Edgelit LED Downlight - LED downlight, 12, 15, 18 and 22 W, price on request (this page)
• Polycab Rimless LED Downlight - LED downlight, 6 to 24 W, price on request

Related products

• Polycab Full Glow 2x2 LED Troffer (Recessed) - LED troffer, 36 W, price on request
• Polycab Full Glow 2x2 LED Troffer (Surface Mounted) - LED troffer, 36 W, price on request
• Polycab Recessed LED Linear Profile Light - LED linear profile light, 28, 36 and 56 W, price on request
• Polycab Pearl COB Swivel LED Downlight - COB swivel downlight, 3 W to 36 W, 3000 / 4000 / 6500 K
• Polycab Scintillate PC Backlit LED Panel Light - LED panel light, 5 W to 20 W, 3000 / 4000 / 6500 K
• Polycab Scintillate PC Edgelit LED Panel - LED panel light, 3 W to 18 W, 3000 / 4000 / 6500 K

Frequently asked questions

What is the price of the Polycab Edgelit LED Downlight?

Polycab does not publish an MRP for its professional lighting range, so the Edgelit Downlight is supplied at a price on request. Call +91 9340081159 with the model, for example PCREDL 12 W 6500 K, the quantity and the delivery location for a quotation.

What ceiling cut-out does each model need?

See the model rows above - for example 12 W round 153 mm and 15 W round 173 mm; Polycab gives a tolerance of ±5 mm.

Are 3000 K and 4000 K available?

Yes - Polycab notes the range is also available in NW (4000 K) and WW (3000 K); ask us when you order.

Where can I buy the Polycab Edgelit LED Downlight in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab LED downlights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Edgelit Downlight is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCREDL 12 W 6500 K), the quantity and the delivery location, and we will confirm the price, availability and lead time.
