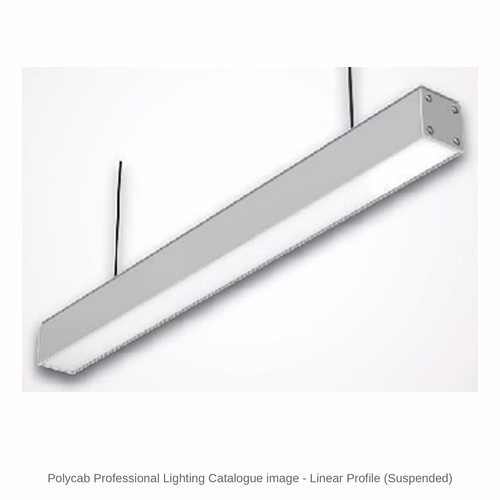

Polycab LED Linear Profile Light – Suspended, 28, 36 and 56 W, 4000 / 5700 K, IP20

The Polycab Suspended LED Linear Profile Light is an extruded aluminium LED profile with a low-glare diffuser that hangs from the ceiling on an adjustable suspension - for open offices, banks, data centres and co-working spaces.

Polycab lists it in 6 models - 4 ft lengths at 28 and 36 W and an 8 ft, 2 x 28 W (56 W) unit, each in 5700 K cool white or 4000 K neutral white - with 100 lm/W or more, CRI 80 or more and IP20. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab LED linear profile lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The ceiling suits it - a slab or open ceiling the profile can hang from on its adjustable wires.
• You want 4 ft fittings at 28 or 36 W, or 8 ft fittings at 2 x 28 W (56 W) - single, joined into a continuous line or in Y, L or X formations.
• The colour suits the room - 4000 K neutral white or 5700 K cool white.
• The space is indoors and dry - the profile is rated IP20.

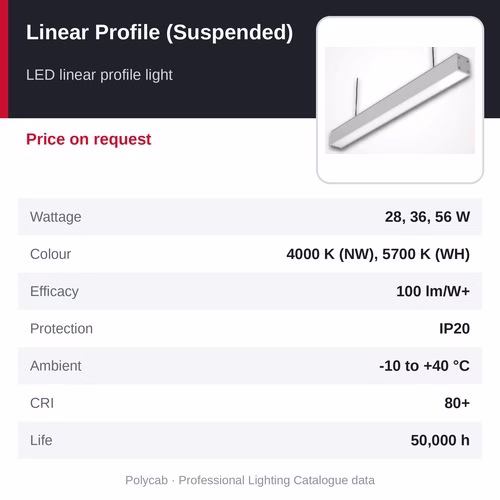

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Suspended LED Linear Profile Light
• Type: LED linear profile light
• Wattage: 28, 36 and 56 W
• Colour temperature: 4000 K neutral white and 5700 K cool white
• Efficacy: 100 lm/W or more (Polycab)
• Protection: IP20
• Operating temperature: -10 to +40 °C
• Colour rendering: CRI 80 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Models (6): PCSLP 28W LED WH 4ft to PCSLP 2x28W LED NW 8ft
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 27-28 and 31-32

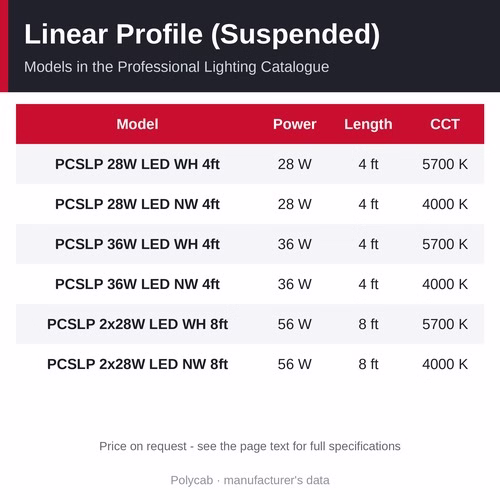

Models and specifications

• PCSLP 28W LED WH 4ft: 28 W, 4 ft, 5700 K, case lot 1 - price on request
• PCSLP 28W LED NW 4ft: 28 W, 4 ft, 4000 K, case lot 1 - price on request
• PCSLP 36W LED WH 4ft: 36 W, 4 ft, 5700 K, case lot 1 - price on request
• PCSLP 36W LED NW 4ft: 36 W, 4 ft, 4000 K, case lot 1 - price on request
• PCSLP 2x28W LED WH 8ft: 56 W, 2 x 28 W, 8 ft, 5700 K, case lot 1 - price on request
• PCSLP 2x28W LED NW 8ft: 56 W, 2 x 28 W, 8 ft, 4000 K, case lot 1 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Driver option: available with an EMI / EMC driver complying with CISPR 15 and flicker-free operation - ask for it when you order
• Diffuser option: available with a micro-prismatic diffuser (catalogue note)
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 27-28 and 31-32

Why choose the Polycab Suspended LED Linear Profile Light

• Powder-coated extruded aluminium housing
• Continuous runs and different lengths to order, joined with end-to-end (EoE) connectors
• Formations to order - straight runs plus Y, L and X shapes with different arm lengths and angles, made to the workstation layout
• Diffuser for even, low-glare light
• Adjustable suspension, so the mounting height can be set on site
• 100 lm/W or more, CRI 80 or more, THD 10% or less, with open- and short-circuit protection
• Available with an EMI / EMC driver complying with CISPR 15, a micro-prismatic diffuser and flicker-free operation

How to choose and fit it

Length and wattage. Choose the 4 ft profile at 28 W for cabins, corridors and lower light levels and at 36 W where the room needs more light; the 8 ft, 2 x 28 W unit lights long desks and open offices with fewer joints. Longer continuous lines are built from 4 ft and 8 ft units joined end to end.

Layout. Run the lines along the desks or the length of the room so the light falls evenly across the work surfaces. Polycab also makes Y, L and X formations to match workstation layouts - share your drawing and we will work out the units, joints and connectors.

Colour. 4000 K neutral white is a balanced white for offices, meeting rooms and banks; 5700 K cool white is a crisp white for open-plan work areas and service areas.

Fitting. Fix the suspension points to the ceiling slab, hang the profile on its adjustable wires and set the height so the lines run level; take the supply cable down to the fitting. The profile runs on 220 to 240 V AC. Isolate the supply before work; a qualified electrician should install and earth the fitting.

Where it is used

• Open offices and co-working spaces
• Conference and meeting rooms
• Banks and customer halls
• Data centres
• Educational institutes

Other Polycab linear and batten series

• Polycab Suspended LED Linear Profile Light - LED linear profile light, 28, 36 and 56 W, price on request (this page)
• Polycab Recessed LED Linear Profile Light - LED linear profile light, 28, 36 and 56 W, price on request
• Polycab Indiray IP66 LED Batten - IP66 LED batten, 20 and 40 W, price on request

Related products

• Polycab 1x4 LED Linear Troffer - LED linear troffer, 36 W, price on request
• Polycab Full Glow 2x2 LED Troffer (Recessed) - LED troffer, 36 W, price on request
• Polycab Full Glow 2x2 LED Troffer (Surface Mounted) - LED troffer, 36 W, price on request
• Polycab Aluminium Backlit LED Downlight - LED downlight, 12, 15, 18 and 24 W, price on request
• Polycab High Wattage LED Batten - LED batten, 24, 30 and 40 W, 3000 / 6500 K
• Polycab Neo Slim LED Batten - LED batten, 20 W, 3000 / 4000 / 6500 K

Frequently asked questions

What is the price of the Polycab Suspended LED Linear Profile Light?

Polycab does not publish an MRP for its professional lighting range, so the Linear Profile (Suspended) is supplied at a price on request. Call +91 9340081159 with the model, for example PCSLP 28W LED WH 4ft, the quantity and the delivery location for a quotation.

Can the profiles be joined into one continuous line?

Yes. The profiles take end-to-end (EoE) connectors for continuous runs, and Polycab makes Y, L and X formations to order for workstation layouts. Send us the layout and we will confirm the units and connectors.

How is it mounted?

It hangs from the ceiling on an adjustable suspension system, so the mounting height can be set on site.

4000 K or 5700 K - which should I choose?

4000 K neutral white is the comfortable choice for offices, meeting rooms and banks; 5700 K cool white gives a crisper light for open-plan work areas, data centres and service areas.

Where can I buy the Polycab Suspended LED Linear Profile Light in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab LED linear profile lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Linear Profile (Suspended) is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCSLP 28W LED WH 4ft), the quantity and the delivery location, and we will confirm the price, availability and lead time. Quote the full code - the suspended profile is PCSLP and the recessed profile PCRLP, one letter apart; WH codes are 5700 K and NW codes 4000 K.
