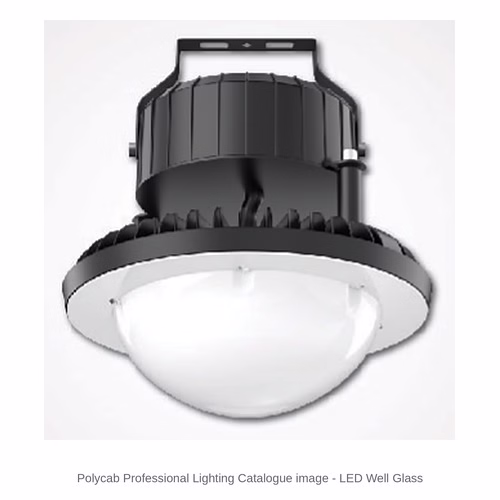

Polycab LED Well Glass Light – 30 to 70 W, 5700 K, IP66

The Polycab LED Well Glass Light is a compact LED well glass light for lower-height industrial areas - plant floors, walkways, platforms, stores and conveyor galleries outside classified (coal-dust) areas - IP66, IK08, mounted with an i-bolt and safety wire.

Polycab lists it in 6 models - 30, 35, 40, 45, 60 and 70 W in 5700 K cool white - with 110 lm/W or more, CRI 70 or more and an operating range of -10 to +55 °C. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab LED well glass lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The mounting height is lower than a high bay needs - roughly 3 to 6 m (at 6 to 7 m either can work - we confirm with a layout); for higher roofs see the Indeco LED high bay light.
• The wattage suits the area - 30 to 45 W in the compact body (119 mm diameter) or 60 and 70 W in the larger body (172 mm diameter).
• The colour suits the work - 5700 K cool white.
• Dust, damp and hosing are fine - it is rated IP66 and IK08 (but it is not for hazardous areas).

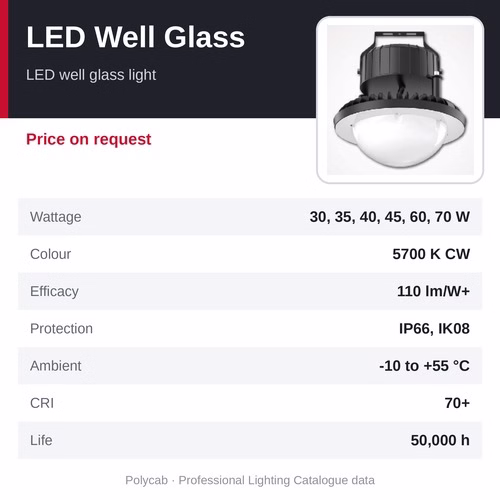

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab LED Well Glass Light
• Type: LED well glass light
• Wattage: 30, 35, 40, 45, 60 and 70 W
• Colour temperature: 5700 K cool white
• Efficacy: 110 lm/W or more (Polycab)
• Protection: IP66, IK08
• Operating temperature: -10 to +55 °C
• Colour rendering: CRI 70 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Models (6): PCGLWG C7 30 57 to PCGLWG C7 70 57
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 57-58

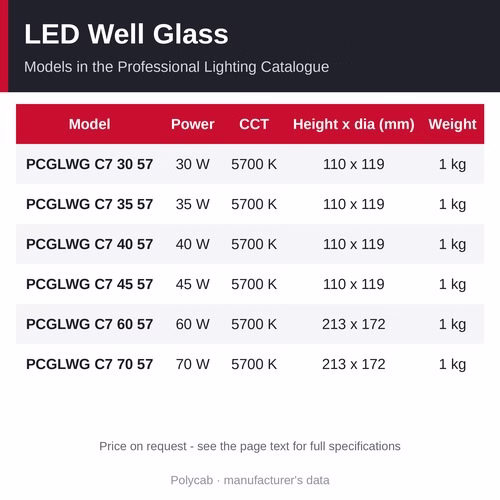

Models and specifications

• PCGLWG C7 30 57: 30 W, 5700 K, about 1 kg, height 110 mm, diameter 119 mm, case lot 15 - price on request
• PCGLWG C7 35 57: 35 W, 5700 K, about 1 kg, height 110 mm, diameter 119 mm, case lot 15 - price on request
• PCGLWG C7 40 57: 40 W, 5700 K, about 1 kg, height 110 mm, diameter 119 mm, case lot 15 - price on request
• PCGLWG C7 45 57: 45 W, 5700 K, about 1 kg, height 110 mm, diameter 119 mm, case lot 15 - price on request
• PCGLWG C7 60 57: 60 W, 5700 K, about 1 kg, height 213 mm, diameter 172 mm, case lot 2 - price on request
• PCGLWG C7 70 57: 70 W, 5700 K, about 1 kg, height 213 mm, diameter 172 mm, case lot 2 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Driver option: available with an EMI / EMC driver complying with CISPR 15 - ask for it when you order
• Dimension tolerance: ±5 mm (Polycab drawings)
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 57-58

Why choose the Polycab LED Well Glass Light

• System efficacy of 110 lm/W or more for bright, even light
• Rugged construction for harsh industrial conditions
• i-bolt with safety wire for easy installation and maintenance
• Specially designed heat sink for smooth operation in harsh environments
• IP66, IK08, CRI 70 or more, THD 10% or less
• Available with an EMI / EMC driver complying with CISPR 15

How to choose and fit it

Wattage. As a rough guide, 30 to 45 W suits walkways, stairways, platforms and small sheds at heights of about 3 to 5 m, and 60 to 70 W larger areas at heights of about 5 to 7 m. Send us the area and mounting height for a layout.

Fitting. Hang the well glass from its i-bolt on a hook and fix the safety wire, or fix it by its U-bracket, as Polycab's drawing shows; connect it through a sealed cable entry. It runs on 220 to 240 V AC. Isolate the supply before work; a qualified electrician should install and earth the fitting.

Higher roofs. Above roughly 6 to 7 m a high bay is the better choice - see the Indeco Plus and Indeco LED high bays.

Hazardous areas. This is not a flameproof fitting. For areas with flammable gas, vapour or combustible dust, use a certified flameproof fitting such as the Polycab LED flameproof well glass light. Its certificate must cover your area - for gas, the zone, gas group and temperature class; for dust such as coal, a Zone 21 or 22 dust marking with the dust group and the maximum surface temperature - and the ambient temperature range there. We send the certificate before you order.

Where it is used

• Power plants
• Cement plants
• Thermal plants
• Walkways, platforms and conveyor galleries outside classified (coal-dust) areas
• Stores and low sheds

Other Polycab industrial lighting series

• Polycab LED Well Glass Light - LED well glass light, 30 to 70 W, price on request (this page)
• Polycab Indeco Plus LED High Bay Light - LED high bay light, 80 to 250 W, price on request
• Polycab Indeco LED High Bay Light - LED high bay light, 80 to 250 W, price on request
• Polycab Indeco Neo LED High Bay Light - LED high bay light, 80 to 200 W, price on request
• Polycab Stout LED Pit Light - LED pit light, 20 W, price on request
• Polycab LED Flameproof Well Glass Light - flameproof LED well glass light, 40, 45, 60 and 70 W, price on request
• Polycab LED Flameproof High Bay Light - flameproof LED high bay light, 80, 100, 120 and 150 W, price on request
• Polycab LED Flameproof Flood Light - flameproof LED flood light, 100, 150, 200 and 300 W, price on request
• Polycab LED Flameproof Hand Lamp - flameproof LED hand lamp, 15 W, price on request

Related products

• Polycab Indiray IP66 LED Batten - IP66 LED batten, 20 and 40 W, price on request
• Polycab IP65 Industrial LED Bulkhead Light - industrial LED bulkhead light, 10 and 20 W, price on request
• Polycab LED Petrol Pump Canopy Light - LED canopy light, 80 and 100 W, price on request
• Polycab Eco LED Flood Light - LED flood light, 60 to 200 W, price on request
• Polycab High Wattage LED Batten - LED batten, 24, 30 and 40 W, 3000 / 6500 K

Frequently asked questions

What is the price of the Polycab LED Well Glass Light?

Polycab does not publish an MRP for its professional lighting range, so the LED Well Glass is supplied at a price on request. Call +91 9340081159 with the model, for example PCGLWG C7 30 57, the quantity and the delivery location for a quotation.

Where is a well glass light used instead of a high bay?

In lower areas - walkways, platforms, galleries, stores and small sheds at heights of roughly 3 to 6 m (at 6 to 7 m either can work - we confirm with a layout). Above that, a high bay lights the floor more efficiently.

What sizes are the two bodies?

The 30 to 45 W models are about 110 mm high and 119 mm in diameter; the 60 and 70 W models are about 213 mm high and 172 mm in diameter (±5 mm).

Is it flameproof?

No - this is a general industrial fitting. For hazardous areas use a certified flameproof fitting such as the Polycab LED flameproof well glass light, whose codes end in "FLP" (for example PCGLWG C7 40 57 FLP). Its certificate must cover your area - for gas, the zone, gas group and temperature class; for dust such as coal, a Zone 21 or 22 dust marking with the dust group and the maximum surface temperature - and the ambient temperature range there. We send the certificate before you order.

Where can I buy the Polycab LED Well Glass Light in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab LED well glass lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The LED Well Glass is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCGLWG C7 30 57), the quantity and the delivery location, and we will confirm the price, availability and lead time. Quote the full code - at 40, 45, 60 and 70 W the flameproof well glass has the same code with "FLP" at the end (for example PCGLWG C7 40 57 FLP); without "FLP" the fitting is not flameproof.
