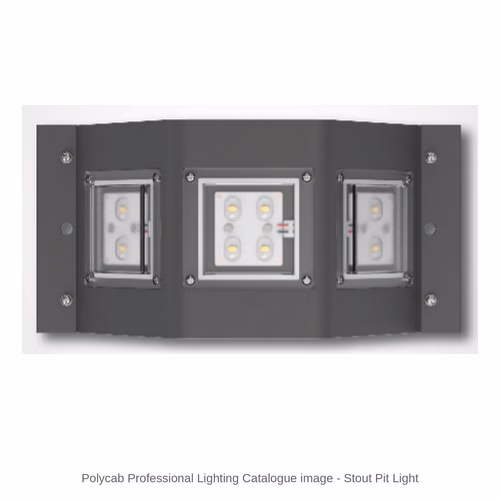

Polycab Stout LED Pit Light – 20 W, 5700 K, IP66

The Polycab Stout LED Pit Light is a rugged LED pit light for vehicle inspection pits in automobile workshops and railway and metro maintenance depots - three LED modules throw light three ways across the pit.

Polycab lists the model PCLPL 20W 48V AC (20 W, 5700 K) and offers 24 V DC, 110 V DC and 48 V AC versions with different wattages, with 120 lm/W or more, CRI 70 or more, IP66 and IK08. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab LED pit lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The supply in the pit matches the version you order - 24 V DC, 110 V DC or 48 V AC - and comes from a SELV source (see Voltage).
• The pit walls have space to mount the fitting (about 200 mm wide) near the vehicle underside.
• Wet and dusty pits are fine - IP66 covers hosing and splashes (not immersion), so mount it above any standing-water level. It is IK08 against knocks; for oil exposure, ask us.
• The ambient temperature stays within -10 to +55 °C.
• The pit is not a classified hazardous area. Where petrol or LPG vehicles are serviced, their vapour is heavier than air and can collect in the pit, so check the classification. This is not a flameproof (Ex) fitting; if your pit is classified, ask us for a certified alternative.

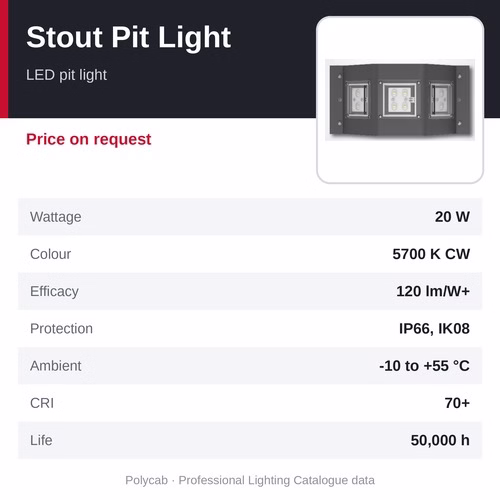

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Stout LED Pit Light
• Type: LED pit light
• Wattage: 20 W
• Colour temperature: 5700 K cool white
• Efficacy: 120 lm/W or more (Polycab)
• Protection: IP66, IK08
• Operating temperature: -10 to +55 °C
• Colour rendering: CRI 70 or more
• Rated life: 50,000 burning hours
• Supply: 24 V DC, 110 V DC or 48 V AC versions (the listed model is 48 V AC); Polycab's table prints 220-240 V for it, so we confirm the voltage before you order
• Model: PCLPL 20W 48V AC
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 59-60

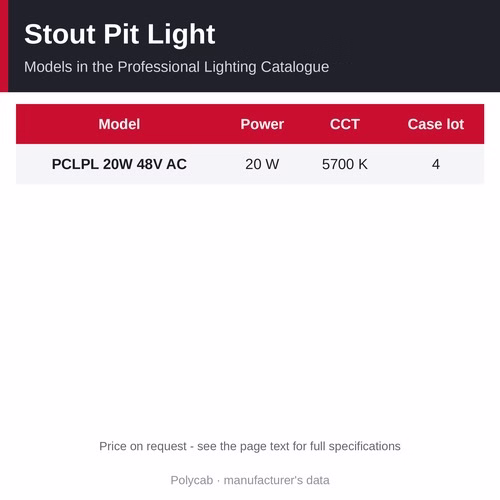

Models and specifications

• PCLPL 20W 48V AC: 20 W, 5700 K, case lot 4 - price on request
• Supply: 24 V DC, 110 V DC or 48 V AC versions (the listed model is 48 V AC); Polycab's table prints 220-240 V for it, so we confirm the voltage before you order
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 59-60

Why choose the Polycab Stout LED Pit Light

• Three-way light distribution for wide coverage and high visibility under the vehicle
• Dust-tight, water-jet-proof (IP66) construction for a long working life
• Mounting by end-flange fixing on the pit wall (Polycab's text also lists an eye bolt with safety wire - we confirm the kit)
• 24 V DC, 110 V DC and 48 V AC versions, with different wattage options
• 120 lm/W or more, IP66, IK08 (THD 10% or less on AC versions)

How to choose and fit it

Voltage. Inspection pits are wet, confined work areas. All three versions run at extra-low voltage (up to 50 V AC / 120 V DC); feed them from a SELV supply (a safety isolating transformer, or an isolated DC source), and check whether your site's rules call for a lower voltage such as 24 V DC. The 110 V DC version suits depots with a 110 V DC supply, provided that circuit is SELV - isolated from the mains and other circuits and not earthed; if it is not, tell us and we will advise. Tell us the supply available in the pit and we will confirm the matching version. Extra-low voltage lowers the shock risk but does not make the fitting flameproof: if the pit is classified as a hazardous area, ask us for a certified alternative.

Layout. Mount the fittings along both pit walls, staggered, so the three-way beam lights the vehicle underside without shadows from the person working.

Fitting. Fix it to the pit wall through the fixing holes in its end flanges (we confirm the mounting kit with the order) and run the supply in a protected conduit. Isolate the supply before work; a qualified electrician should install it.

Where it is used

• Automobile service workshops and inspection pits
• Railway and metro maintenance depots
• Bus depots and fleet workshops

Other Polycab industrial lighting series

• Polycab Stout LED Pit Light - LED pit light, 20 W, price on request (this page)
• Polycab Indeco Plus LED High Bay Light - LED high bay light, 80 to 250 W, price on request
• Polycab Indeco LED High Bay Light - LED high bay light, 80 to 250 W, price on request
• Polycab Indeco Neo LED High Bay Light - LED high bay light, 80 to 200 W, price on request
• Polycab LED Well Glass Light - LED well glass light, 30 to 70 W, price on request
• Polycab LED Flameproof Well Glass Light - flameproof LED well glass light, 40, 45, 60 and 70 W, price on request
• Polycab LED Flameproof High Bay Light - flameproof LED high bay light, 80, 100, 120 and 150 W, price on request
• Polycab LED Flameproof Flood Light - flameproof LED flood light, 100, 150, 200 and 300 W, price on request
• Polycab LED Flameproof Hand Lamp - flameproof LED hand lamp, 15 W, price on request

Related products

• Polycab Indiray IP66 LED Batten - IP66 LED batten, 20 and 40 W, price on request
• Polycab IP65 Industrial LED Bulkhead Light - industrial LED bulkhead light, 10 and 20 W, price on request
• Polycab LED Petrol Pump Canopy Light - LED canopy light, 80 and 100 W, price on request
• Polycab Eco LED Flood Light - LED flood light, 60 to 200 W, price on request
• Polycab High Wattage LED Batten - LED batten, 24, 30 and 40 W, 3000 / 6500 K

Frequently asked questions

What is the price of the Polycab Stout LED Pit Light?

Polycab does not publish an MRP for its professional lighting range, so the Stout Pit Light is supplied at a price on request. Call +91 9340081159 with the model, for example PCLPL 20W 48V AC, the quantity and the delivery location for a quotation.

Which supply voltage does it need?

Polycab offers 24 V DC, 110 V DC and 48 V AC versions. The listed model is PCLPL 20W 48V AC; its table row reads 220V-240V under "rated voltage", so we confirm the exact voltage of the version you need before you order.

Why use a pit light rather than a normal batten?

The pit light is built for wet, dusty pits - it is rated IP66 and IK08, mounts on the pit wall and throws light three ways under the vehicle. It also runs at extra-low voltage (24 V DC, 110 V DC or 48 V AC) from a SELV supply, where a normal batten runs at 220 to 240 V AC; we confirm the voltage of the version before you order. It is not a flameproof fitting - for a pit classified as a hazardous area, ask us for a certified alternative.

Where can I buy the Polycab Stout LED Pit Light in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab LED pit lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Stout Pit Light is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCLPL 20W 48V AC), the quantity and the delivery location, and we will confirm the price, availability and lead time.
