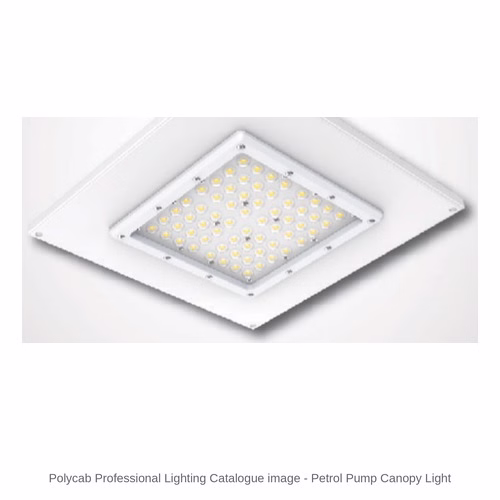

Polycab LED Petrol Pump Canopy Light – 80 and 100 W, 5700 K, IP66

The Polycab LED Petrol Pump Canopy Light is an LED canopy light for petrol pump forecourt canopies, giving high vertical illumination for refuelling, payment and safety - IP66, IK08.

Polycab lists it in 2 models - 80 and 100 W in 5700 K cool white - with about 110 lm/W, CRI 70 or more and an operating range of -10 to +55 °C (plan for 50 °C). It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab LED canopy lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The canopy height and area suit the wattage - 80 or 100 W.
• The colour suits the site - 5700 K cool white.
• The fitting will be under a canopy, exposed to dust and wind-driven rain - it is rated IP66 and IK08.
• The air at the canopy stays within 50 °C (see the temperature note in At a glance).
• It goes on the canopy outside the hazardous zones round the dispensers and vent pipes - it is not a flameproof (Ex) fitting.

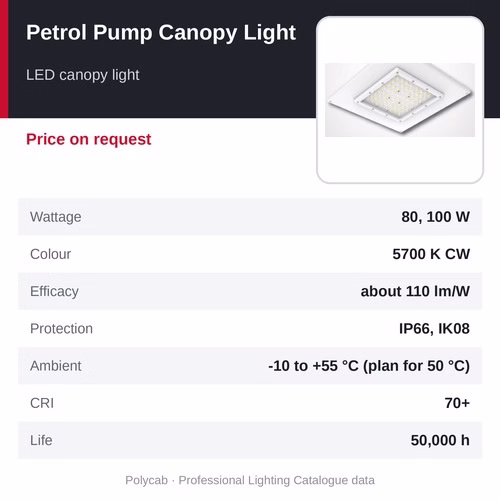

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab LED Petrol Pump Canopy Light
• Type: LED canopy light
• Wattage: 80 and 100 W
• Colour temperature: 5700 K cool white
• Efficacy: about 110 lm/W (Polycab prints both '110 lm/W or more' and 'up to 110 lm/W')
• Protection: IP66, IK08
• Operating temperature: -10 to +55 °C on Polycab's spec icon (its feature text says up to 50 °C - plan for 50 °C)
• Colour rendering: CRI 70 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Size: 382 x 382 mm, 110 mm high (Polycab drawing, ±5 mm)
• Models (2): PCFSC 80W and PCFSC 100W
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 61-62

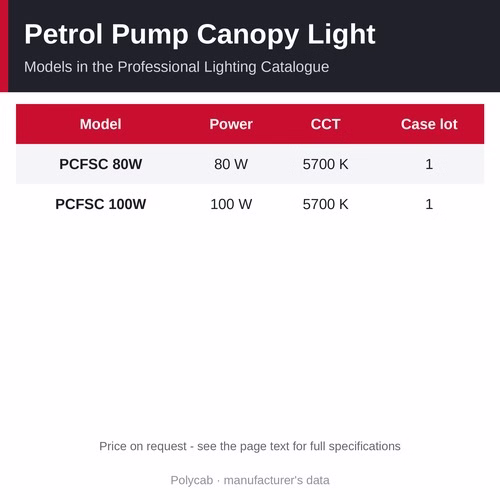

Models and specifications

• PCFSC 80W: 80 W, 5700 K, case lot 1 - price on request
• PCFSC 100W: 100 W, 5700 K, case lot 1 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Driver option: available with an EMI / EMC driver complying with CISPR 15 - ask for it when you order
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 61-62

Why choose the Polycab LED Petrol Pump Canopy Light

• About 110 lm/W luminaire efficacy from efficient LEDs and optics
• Good thermal management for energy savings, with customisable options
• Weather- and dust-proof for a long service life
• 3-way connector and mounting accessories for quick installation
• IP66, IK08, CRI 70 or more, THD 10% or less
• Available with an EMI / EMC driver complying with CISPR 15

How to choose and fit it

Layout. Space the fittings evenly over the canopy so the dispensers, vehicles and payment points are lit without dark patches; send us the canopy size and height and we will propose the number of fittings.

Square or linear. Polycab also makes an 80 W, 2.4 m linear canopy light (6500 K) for the same canopies - choose by the canopy layout.

Size. Polycab's drawing shows it as 382 x 382 mm and 110 mm high, with a 310 mm stepped body (±5 mm) - we confirm the mounting method and any canopy-panel cut-out before you order.

Hazardous zones. It is not a flameproof (Ex) fitting: mount it at canopy height outside the hazardous zones shown on the outlet's approved layout. Inside a zone, use a flameproof fitting whose certificate and PESO approval cover that zone and petrol vapour (gas group IIA, IIB or IIC, and temperature class T3 or better) - for example the Polycab LED Flameproof Flood Light, subject to its certificate. The certificate must also cover the canopy's ambient temperature: an Ex fitting is rated for -20 to +40 °C unless its marking states a different range, so check that the marked range reaches at least 50 °C.

Fitting. Fix it to the canopy ceiling with the mounting accessories supplied and connect it through the 3-way connector. It runs on 220 to 240 V AC. Isolate the supply before work; a qualified electrician should install and earth the fitting.

Where it is used

• Petrol pump and fuel station canopies
• Loading bays and dock canopies
• Manufacturing yards with canopies

Other Polycab canopy and bulkhead series

• Polycab LED Petrol Pump Canopy Light - LED canopy light, 80 and 100 W, price on request (this page)
• Polycab LED Linear Canopy Light - LED canopy light, 80 W, price on request
• Polycab IP65 Industrial LED Bulkhead Light - industrial LED bulkhead light, 10 and 20 W, price on request

Related products

• Polycab LED Well Glass Light - LED well glass light, 30 to 70 W, price on request
• Polycab Indiray IP66 LED Batten - IP66 LED batten, 20 and 40 W, price on request
• Polycab Eco LED Flood Light - LED flood light, 60 to 200 W, price on request
• Polycab Citirays V3 LED Street Light - LED street light, 25 to 150 W, price on request
• Polycab LED Bulkhead Light - LED bulkhead, 10 and 20 W, 3000 / 4000 / 6500 K

Frequently asked questions

What is the price of the Polycab LED Petrol Pump Canopy Light?

Polycab does not publish an MRP for its professional lighting range, so the Petrol Pump Canopy Light is supplied at a price on request. Call +91 9340081159 with the model, for example PCFSC 80W, the quantity and the delivery location for a quotation.

Is it suitable for outdoor canopies?

Yes - it is weather- and dust-proof and rated IP66 and IK08. Polycab's spec icon gives -10 to +55 °C ambient while its feature text says up to 50 °C, so plan for 50 °C under hot canopy roofs.

Is it flameproof?

No. It is a canopy light for mounting outside the hazardous zones round the dispensers and vent pipes. Inside a zone, use a flameproof fitting whose certificate and PESO approval cover that zone and petrol vapour (gas group IIA, IIB or IIC, T3 or better) - for example the Polycab LED Flameproof Flood Light, subject to its certificate. The certificate must also cover the canopy's ambient temperature: an Ex fitting is rated for -20 to +40 °C unless its marking states a different range, so check that the marked range reaches at least 50 °C.

What colour temperature is it?

5700 K cool white - the colour Polycab lists for this model.

Where can I buy the Polycab LED Petrol Pump Canopy Light in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab LED canopy lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Petrol Pump Canopy Light is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCFSC 80W), the quantity and the delivery location, and we will confirm the price, availability and lead time. Quote the full code - the square petrol pump canopy light is PCFSC and the linear canopy light PCFSCL, one letter apart.
