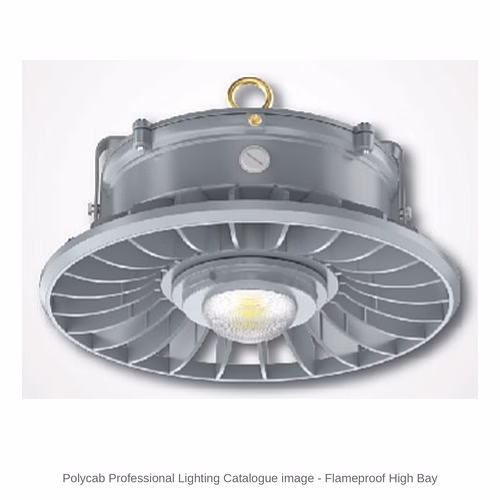

Polycab LED Flameproof High Bay Light – 80, 100, 120 and 150 W, 5700 K, IP67

The Polycab LED Flameproof High Bay Light is a flameproof LED high bay light for high-roofed hazardous areas - cement, oil and gas, steel, chemical, paint and pharma plants.

Polycab lists it in 4 models - 80, 100, 120 and 150 W in 5700 K cool white - with 120 lm/W or more, CRI 70 or more, IP67, IK08 and an operating range of -10 to +55 °C. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab flameproof LED lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The fitting's Ex certificate covers your area's zone, gas or dust group, temperature class and ambient range (see "Certification first" below) - ask us for the certificate of the exact model before you order.
• The wattage suits the job - 80, 100, 120 or 150 W.
• The colour suits the work - 5700 K cool white.
• The ambient temperature stays within -10 to +55 °C (Polycab's spec panel) and within the ambient range marked on the Ex certificate, which may be narrower.

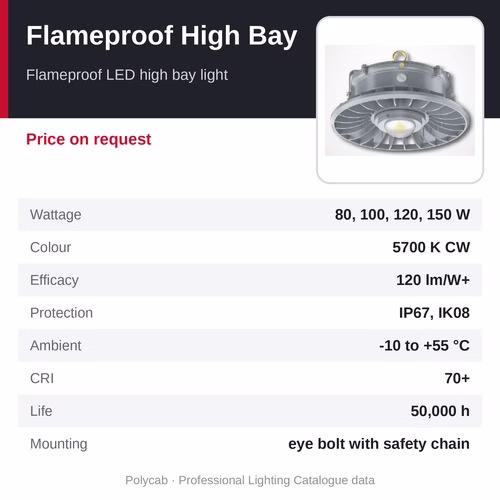

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab LED Flameproof High Bay Light
• Type: flameproof LED high bay light
• Wattage: 80, 100, 120 and 150 W
• Colour temperature: 5700 K cool white
• Efficacy: 120 lm/W or more (Polycab)
• Protection: IP67, IK08
• Operating temperature: -10 to +55 °C
• Colour rendering: CRI 70 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Mounting: eye bolt with safety chain
• Size: about 335 mm across, labelled 326 mm high although the side view is drawn much shorter (one drawing for the well glass and high bay, ±5 mm) - we confirm the size for your wattage on order
• Models (4): PCGLHB 80 57 FLP to PCGLHB 150 57 FLP
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 77-78

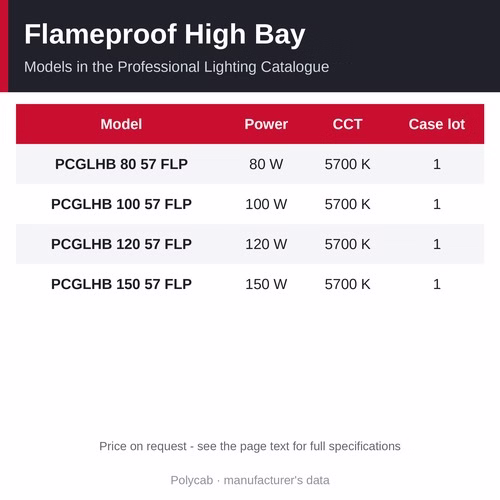

Models and specifications

• PCGLHB 80 57 FLP: 80 W, 5700 K, case lot 1 - price on request
• PCGLHB 100 57 FLP: 100 W, 5700 K, case lot 1 - price on request
• PCGLHB 120 57 FLP: 120 W, 5700 K, case lot 1 - price on request
• PCGLHB 150 57 FLP: 150 W, 5700 K, case lot 1 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 77-78

Why choose the Polycab LED Flameproof High Bay Light

• Explosion-proof enclosure designed to contain any internal spark or explosion and withstand harsh environments
• Performs reliably across a wide temperature range and pressure changes
• Polycab states the range meets safety standards and certifications such as PESO and CIMFR
• Anti-vibration design for stable operation near heavy machinery
• 120 lm/W or more, IP67, IK08, CRI 70 or more, THD 10% or less
• Eye bolt with safety chain for mounting

How to choose and fit it

Certification first. A flameproof fitting is chosen by the hazardous-area classification of the place it goes, and its certificate must cover the zone (Ex d suits Zones 1 and 2, not Zone 0), the gas group (IIA, IIB or IIC), the temperature class and your ambient range; for dust areas it must also carry a dust marking for Zone 21 or 22 with the dust group and the maximum surface temperature. On sites licensed by PESO (petroleum, gas or explosives), the model must also carry PESO approval - we send it with the certificate. Share the classification with us and we will confirm the certified model and send the certificate copy before you order.

Wattage. As a rough guide at 120 lm/W, 80 to 100 W suits mounting heights of about 6 to 7 m and 120 to 150 W heights of about 7 to 9 m; for higher roofs, send us the area, mounting height and the light level needed and we will propose a layout. Below a mounting height of about 6 m, the 60 or 70 W flameproof well glass light may be enough (at heights of 6 to 7 m either can work - we confirm with a layout).

Size. Polycab's drawing (shared by the flameproof well glass and high bay) shows it about 335 mm across (±5 mm); the height is labelled 326 mm, although the side view is drawn much shorter, so we confirm the size for your wattage.

Mounting. It hangs from its eye bolt with a safety chain; Polycab's drawing also shows a U-bracket - ask us if you need bracket mounting.

Installation. In a hazardous area, a qualified electrician must install and maintain the fitting, glands and wiring to the certificate and your site's hazardous-area rules. Use certified flameproof glands, close unused entries with certified stopping plugs, earth the fitting and keep the flame paths clean. Never open the enclosure while it is live or where an explosive atmosphere may be present; follow the permit-to-work and any waiting time marked on the label. It runs on 220 to 240 V AC.

Where it is used

• Cement plants
• Oil and gas refineries
• Steel plants
• Chemical and paint plants
• Pharma plants

Other Polycab industrial lighting series

• Polycab LED Flameproof Well Glass Light - flameproof LED well glass light, 40, 45, 60 and 70 W, price on request
• Polycab LED Flameproof High Bay Light - flameproof LED high bay light, 80, 100, 120 and 150 W, price on request (this page)
• Polycab LED Flameproof Flood Light - flameproof LED flood light, 100, 150, 200 and 300 W, price on request
• Polycab LED Flameproof Hand Lamp - flameproof LED hand lamp, 15 W, price on request
• Polycab Indeco Plus LED High Bay Light - LED high bay light, 80 to 250 W, price on request (not flameproof)
• Polycab Indeco LED High Bay Light - LED high bay light, 80 to 250 W, price on request (not flameproof)
• Polycab Indeco Neo LED High Bay Light - LED high bay light, 80 to 200 W, price on request (not flameproof)
• Polycab LED Well Glass Light - LED well glass light, 30 to 70 W, price on request (not flameproof)
• Polycab Stout LED Pit Light - LED pit light, 20 W, price on request (not flameproof)

Related products for safe (non-hazardous) areas

• Polycab Indiray IP66 LED Batten - IP66 LED batten, 20 and 40 W, price on request (not flameproof)
• Polycab IP65 Industrial LED Bulkhead Light - industrial LED bulkhead light, 10 and 20 W, price on request (not flameproof)
• Polycab LED Petrol Pump Canopy Light - LED canopy light, 80 and 100 W, price on request (not flameproof)
• Polycab Eco LED Flood Light - LED flood light, 60 to 200 W, price on request (not flameproof)
• Polycab High Wattage LED Batten - LED batten, 24, 30 and 40 W, 3000 / 6500 K (not flameproof)

Frequently asked questions

What is the price of the Polycab LED Flameproof High Bay Light?

Polycab does not publish an MRP for its professional lighting range, so the Flameproof High Bay is supplied at a price on request. Call +91 9340081159 with the model, for example PCGLHB 80 57 FLP, the quantity and the delivery location for a quotation.

Which certifications does it have?

Polycab states the flameproof range meets safety standards and certifications such as PESO and CIMFR. Ask us for the certificate of the exact model - it states the gas groups, temperature class and ambient range it covers, and any dust marking.

Can it be used where flammable gas or dust is present?

That is what it is designed for, provided the installation follows its certificate and the certificate covers your area: the zone (Ex d suits Zones 1 and 2, not Zone 0), the gas group (IIA, IIB or IIC), the temperature class and your ambient range; for dust areas it must also carry a dust marking for Zone 21 or 22 with the dust group and the maximum surface temperature.

Where can I buy the Polycab LED Flameproof High Bay Light in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab flameproof LED lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Flameproof High Bay is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCGLHB 80 57 FLP), the quantity and the delivery location, and we will confirm the price, availability and lead time. Quote the full code including "FLP" - every flameproof code in this range ends in it; the Indeco high bays (PCHBHL, PCHB, PCHBN) are not flameproof.
