IPX8 Gel-Filled Straight Joint, 4-Core 2.5-16 sq mm, up to 1 kV - Raytech Rapid Joint L10 (301098-004)

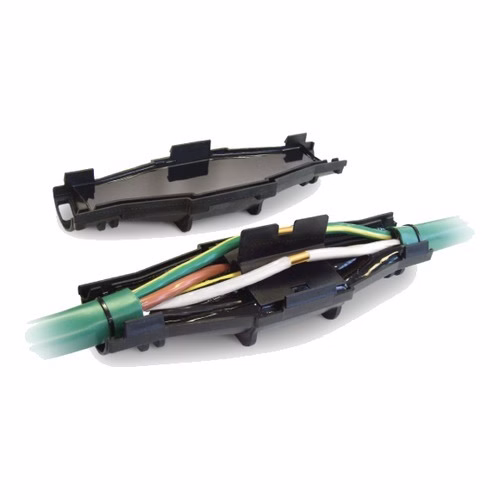

4-core cable 2.5-16 mm² (single-core 2.5-150 mm²), 180 x 60 mm. Raytech Rapid Joint L10 is a cylindrical, gel pre-filled straight joint for extruded-insulation cables up to 1 kV. Its two gel-filled half-shells close radially around the connected conductors, so the joint is quick to fit, sealed to IPX8 - fully submersible and suitable for underground use - and can be re-opened later, but only with a tool. Item 301098-004, list price Rs 4,494 per joint.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Rapid Joint is made of self-extinguishing, flame-retardant material for cables working at 90 °C, with spacers that keep the joined conductors apart inside the gel.

Is this the right one for you?

Check these six things before you order:

• The cable has extruded insulation (for example PVC or XLPE) and is rated up to 1 kV.
• The copper conductors are within range for their number of cores: 1-core 2.5-150 mm², 2-core 2.5-25 mm², 3-core 2.5-16 mm², 4-core 2.5-16 mm².
• The conductors are copper - for aluminium, Raytech lists Rapid Joint L25 and L95.
• You will join the conductors with connectors that comply with EN 61238-1.
• There is room for the joint: 180 x 60 mm (length x diameter).
• The cable is unscreened and unarmoured - screened and armoured cables need a different joint.

At a glance

• Price: Rs 4,494 per joint
• Item code: 301098-004
• Joint type: straight (in-line), cylindrical, gel pre-filled
• Copper conductors: 1-core 2.5-150 mm², 2-core 2.5-25 mm², 3-core 2.5-16 mm², 4-core 2.5-16 mm²
• Aluminium conductors: not listed for this size
• Size (length x diameter): 180 x 60 mm
• Degree of protection: IPX8
• Cable: extruded insulation, up to 1 kV

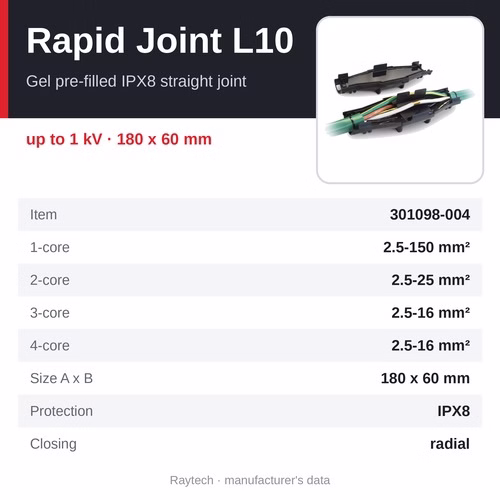

Specifications

• Model: Raytech Rapid Joint L10
• Item code: 301098-004
• Joint type: straight (in-line), cylindrical, gel pre-filled, radial closing
• Copper, 1-core: 2.5-150 mm²
• Copper, 2-core: 2.5-25 mm²
• Copper, 3-core: 2.5-16 mm²
• Copper, 4-core: 2.5-16 mm²
• Dimensions A x B (length x diameter): 180 x 60 mm
• Electrical performance: CEI EN 50393 with connectors complying with EN 61238-1; Class 2 to CEI 64-8
• Flame propagation: none - to CEI 20-35, IEC 60332-1 and HD 405-1 (as applicable)
• Gel: UL 94-HB; halogen-free; not classified as hazardous under CLP; no shelf life
• Casing: UL 94-V2; self-extinguishing, flame-retardant material
• Degree of protection: IPX8 - fully submersible, can be used underground
• Cable working temperature: up to 90 °C
• Installation temperature: -40 °C to +50 °C
• Closing system: radial closing; re-enterable only with a tool

Why choose it

• Pre-filled with gel - nothing to mix, pour or wait for: the joint is ready as soon as it is closed
• Radial closing - the shells close around the connected conductors, so there is no sleeve to slide over the cable first
• Tamper-resistant - re-enterable, but only with a tool
• IPX8 - fully submersible and suitable for underground use
• Flame retardant - self-extinguishing casing; no flame propagation to CEI 20-35, IEC 60332-1 and HD 405-1

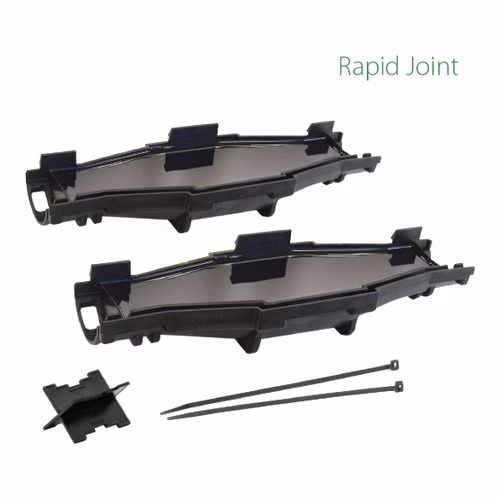

• Spacers keep the conductors apart inside the gel
• Safe gel with no shelf life - not classified as hazardous under CLP and halogen-free

How it is installed

1. Prepare the cable ends and join the conductors with suitable connectors - for power cable, connectors that comply with EN 61238-1.
2. Fit the spacer so the joined conductors are held apart, and lay the joint in one gel-filled half-shell.
3. Close the second half-shell over it: the shells lock radially and the gel closes around the conductors and connectors. To re-open the joint later, use a tool.

Where it is used

• Repairs and extensions of buried 0.6/1 kV power cables
• Feeders to street lighting, pumps and outdoor equipment
• Cable runs in wet ducts, pits and flood-prone areas
• Solar plants and other infrastructure cabling
• Industrial plant cable repairs where a quick, cold-applied joint saves downtime

Other sizes and versions

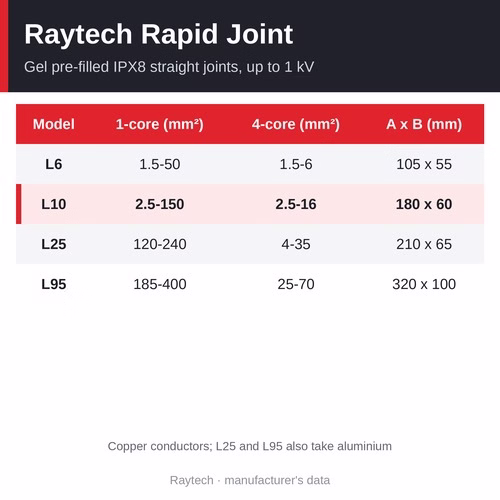

The Raytech Rapid Joint overview page compares all 4 side by side.

• Rapid Joint L6 - 4-core 1.5-6 mm², single-core 1.5-50 mm², 105 x 55 mm - Rs 3,082 per joint
• Rapid Joint L10 - 4-core 2.5-16 mm², single-core 2.5-150 mm², 180 x 60 mm - Rs 4,494 per joint (this page)
• Rapid Joint L25 - 4-core 4-35 mm², single-core 120-240 mm², 210 x 65 mm - Rs 6,912 per joint
• Rapid Joint L95 - 4-core 25-70 mm², single-core 185-400 mm², 320 x 100 mm - Rs 18,126 per joint

Related products

• Raytech Rapid Joint LS - joints for multi-core control cable
• Raytech Super Clik - gel joints for 0.6/1 kV multi-core cable, straight or branch
• Raytech Magic Gel - two-component gel for joint shells and enclosures
• All Raytech low-voltage pre-filled joints

Frequently asked questions

Which cable sizes fit Rapid Joint L10?

Copper conductors: 1-core 2.5-150 mm², 2-core 2.5-25 mm², 3-core 2.5-16 mm², 4-core 2.5-16 mm².

Can it be used on aluminium cable?

Raytech lists L10 for copper conductors. For aluminium conductors it lists Rapid Joint L25 (single-core 120-150 mm²) and L95.

What connectors should I use?

Connectors that comply with EN 61238-1, the standard for power-cable connectors - the joint's electrical performance to CEI EN 50393 is stated with such connectors.

Can the joint be re-opened?

Yes, but only with a tool - the radial closing system is designed so that the joint cannot be opened by hand.

Does the joint need resin or curing time?

No - it arrives pre-filled with gel, so it is ready as soon as the shells are closed.

Where can I buy Raytech Rapid Joint L10 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel-filled cable joints across India. The list price is Rs 4,494 per joint; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Rapid Joint L10 (item 301098-004) is Rs 4,494 per joint. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
