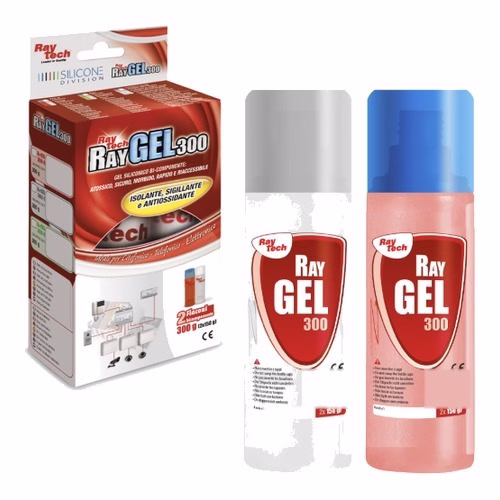

Transparent Two-Component Silicone Insulating Gel, 300 g - Raytech Ray Gel 300-T (RAYGEL300-T)

300 g, 2 two-component bottles. Raytech Ray Gel 300-T is a transparent, two-component silicone gel that insulates and seals telephone and intercom connections and protects LEDs, displays and printed circuit boards - fast-curing and re-enterable. Item RAYGEL300-T, list price Rs 3,439 per pack - about Rs 1,146 per 100 g.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Ray Gel is very fluid, so it fills the spaces between cable cores; it protects low-current contacts from oxidation and does not crack in permanently cold joints. It is the smallest pack; the next size up is Ray Gel 1000-T (1000 g).

Is this the right one for you?

Check these four things before you order:

• You are insulating telecom or intercom connections, or protecting LEDs, displays or circuit boards, and want a transparent gel.
• The quantity suits the job: 300 g (2 two-component bottles). Larger packs work out cheaper per kilogram.
• The casing is suitable for casting - IP68 is reached only inside a suitable casing.
• The application stays within -60 °C to +180 °C.

At a glance

• Price: Rs 3,439 per pack
• Item code: RAYGEL300-T
• Quantity: 300 g
• Package: 2 two-component bottles
• Works out to: about Rs 1,146 per 100 g
• Colour: transparent (T)
• Cross-linking time: fast - about 15 minutes at 23 °C
• Degree of protection: IP68 in a suitable casing

Specifications

• Product: Raytech Ray Gel 300-T
• Item code: RAYGEL300-T
• Quantity: 300 g
• Package contents: 2 two-component bottles
• Dielectric strength: > 20 kV/mm
• Cross-linking time: fast - about 15 minutes at 23 °C, quicker in warm conditions
• Volume resistivity: > 1.5 x 10^15 Ω·cm
• Operating temperature: -60 °C to +180 °C
• Thermal conductivity: < 0.2 W/m·K
• Dielectric constant: < 7
• Degree of protection: IP68 when cast in a suitable casing
• Gel: UL 94-HB; silicone; transparent (T version)
• Safety: non-toxic; no shelf life

Why choose Ray Gel

• Transparent - excellent transparency that does not go opaque, so connections and components stay visible
• Quick cross-linking - fast-curing silicone, quicker still in warm conditions
• Antioxidant protection - low-current telecom contacts do not lose signal
• High fluidity - fills the spaces between cable cores during casting
• Low-temperature resistant - does not crack in permanently cold joints
• Re-enterable, non-toxic, no shelf life

How to use it

1. Make the connection, or mount the board or LED module, inside a suitable casing.
2. Mix the two components and pour so the gel covers the connections or components.
3. Leave it to cross-link - about 15 minutes at 23 °C, faster when warm. The gel stays re-enterable.

Where it is used

• Telephone and intercom connections and joints
• Insulating and sealing LEDs and LED modules
• Sealing displays

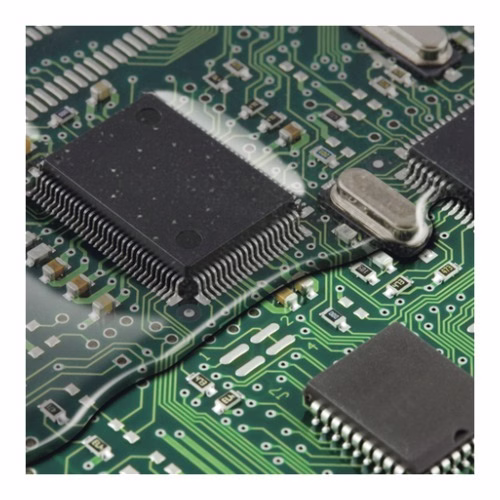

• Protecting printed circuit boards
• Telecom joints in humid locations and flooded wells

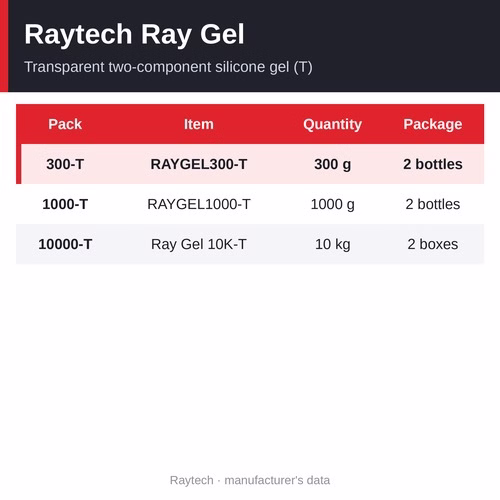

Other sizes and versions

The Raytech Ray Gel overview page compares all 3 side by side.

• Ray Gel 300-T - 300 g, 2 two-component bottles (about Rs 1,146 per 100 g) - Rs 3,439 per pack (this page)
• Ray Gel 1000-T - 1000 g, 2 two-component bottles (about Rs 1,027 per 100 g) - Rs 10,274 per pack
• Ray Gel 10000-T - 10 kg, 2 two-component boxes (about Rs 921 per 100 g) - Rs 92,144 per pack

Related products

• Raytech Magic Gel - two-component gel for joint shells and enclosures
• Raytech Magic Power Gel - re-usable gel in a single twin-compartment bottle
• Raytech Wonder Gel - ready-to-use gel in a cartridge for boxes you already have
• Raytech Monogel - transparent single-component gel cartridge
• All Raytech insulating filler gels

Frequently asked questions

How much does Ray Gel 300-T fill?

300 g of gel; the volume depends on the gel's density, so as a guide choose the pack by the free space to be filled and allow a little extra. Tell us the casing and we will suggest the pack.

What is in the Ray Gel 300-T pack?

2 two-component bottles - 300 g in total. The list price is Rs 3,439 per pack, about Rs 1,146 per 100 g.

Is Ray Gel transparent?

Yes - the T versions listed here are transparent and do not go opaque, which makes them ideal for LEDs, displays and circuit boards.

Why use a gel on telephone connections?

It seals out moisture and protects low-current contacts from oxidation, so the line does not suffer attenuation.

Does it crack in the cold?

No - Ray Gel is formulated not to crack in permanently cold joints.

Where can I buy Raytech Ray Gel 300-T in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech insulating gels and rubbers across India. The list price is Rs 3,439 per pack; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Ray Gel 300-T (item RAYGEL300-T) is Rs 3,439 per pack. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
