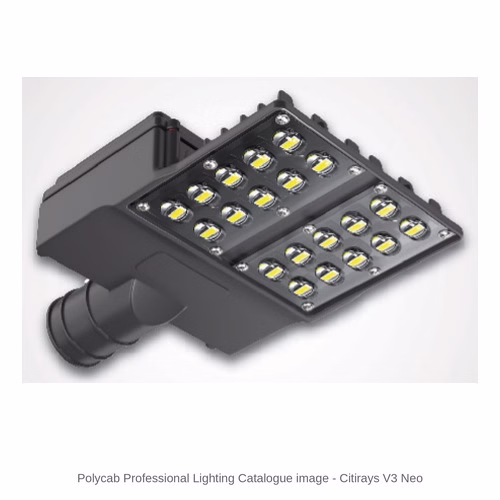

Polycab Citirays V3 Neo LED Street Light – 72, 90, 120 and 150 W, 5700 K, IP66

The Polycab Citirays V3 Neo LED Street Light is an LED street light with dual optics in a finned die-cast aluminium body, for city and service roads, including the slip and service roads of expressways (for the main carriageway, see the Citishine or Citishine Pro).

Polycab lists it in 4 models - 72, 90, 120 and 150 W in 5700 K cool white - with 120 lm/W or more, CRI 70 or more, IP66, IK08, an operating range of -10 to +55 °C and a bracket for 55 to 60 mm diameter arms. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab LED street lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• Your pole bracket (arm) is 55 to 60 mm in diameter.
• The wattage suits the road and the pole height - 72, 90, 120 or 150 W (rough guide below).
• The colour suits the road - 5700 K cool white.
• Every pole will be properly earthed - for electrical safety, and because Polycab asks for it (an unearthed installation can void the warranty).

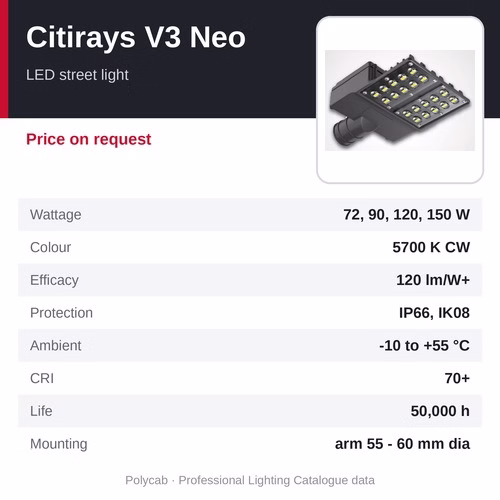

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Citirays V3 Neo LED Street Light
• Type: LED street light
• Wattage: 72, 90, 120 and 150 W
• Colour temperature: 5700 K cool white
• Efficacy: 120 lm/W or more (Polycab)
• Protection: IP66, IK08
• Operating temperature: -10 to +55 °C
• Colour rendering: CRI 70 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Mounting: bracket for 55 to 60 mm diameter arms
• Models (4): PCGLS C4 72W 57K - V3 N to PCGLS C4 150W 57K - V3 N
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 91-92

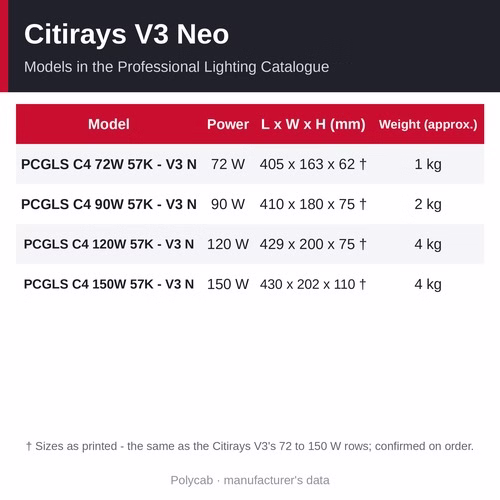

Models and specifications

• PCGLS C4 72W 57K - V3 N: 72 W, 5700 K, about 1 kg, length 405 mm, width 163 mm, height 62 mm, case lot 1 - price on request
• PCGLS C4 90W 57K - V3 N: 90 W, 5700 K, about 2 kg, length 410 mm, width 180 mm, height 75 mm, case lot 1 - price on request
• PCGLS C4 120W 57K - V3 N: 120 W, 5700 K, about 4 kg, length 429 mm, width 200 mm, height 75 mm, case lot 1 - price on request
• PCGLS C4 150W 57K - V3 N: 150 W, 5700 K, about 4 kg, length 430 mm, width 202 mm, height 110 mm, case lot 1 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95, THD 10% or less
• Installation note: Polycab asks for proper earthing at every street light - an unearthed installation can void the warranty
• 72 to 150 W sizes: as printed by Polycab; they are the same as the Citirays V3's 72 to 150 W rows (and, at 120 W, the Citirays C4's) although the housings differ, so we confirm them before you order
• Weights: approximate, as printed by Polycab - we confirm them before structural or pole-loading checks
• Dimension tolerance: ±5 mm (Polycab drawings)
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 91-92

Why choose the Polycab Citirays V3 Neo LED Street Light

• Dual optics for an even light spread that improves night-time safety on the road
• High-quality die-cast aluminium body with fins to carry heat away and reduce the risk of overheating
• Rated lifespan of 50,000 burning hours with good thermal management
• Suited to cities, municipal corporations, gram panchayats and businesses
• IP66, IK08 and an operating range of -10 to +55 °C
• THD 10% or less and power factor above 0.95

How to choose and fit it

Wattage. As a rough guide, 25 to 45 W suits lanes, campus and township roads on poles about 5 to 7 m high; 60 to 90 W city and service roads on poles about 7 to 9 m high; 120 to 150 W main roads on poles about 9 to 12 m high; and 200 to 300 W highways and expressways on poles of about 12 m and more. Pole spacing is usually about three times the mounting height on main roads and highways, and up to about four times on minor roads; send us the road width, pole height and spacing for a layout. This series covers 72 to 150 W.

Which series. Citishine Pro - 150, 200, 250 and 300 W, 135 lm/W or more; Citishine - 90 to 300 W, 120 lm/W or more; Citirays C4 - 45 to 250 W, 120 lm/W or more; Citirays V3 - 25 to 150 W, 120 lm/W or more. All five are 5700 K, IP66 and IK08 and fit 55 to 60 mm diameter arms. Among the Citirays series: the C4 has a secondary lens with toughened-glass optics, the V3 Neo dual optics, and the V3 a dusk-to-dawn sensor option on 60 to 150 W. At 72 to 150 W Polycab prints the same sizes for the V3 and V3 Neo, although the housings differ (and so do the printed weights at 90 to 150 W) - we confirm the sizes before you order.

Fitting. Slide the light onto the bracket arm, tighten the clamp, set it level (or at the tilt in your lighting design) and square to the road, and connect it through the pole's junction (looping) box, with a fuse or MCB for each light. Earth every pole - Polycab asks for proper earthing at each street light, and an unearthed installation can void the warranty. It runs on 220 to 240 V AC. Isolate the supply before work; a qualified electrician should install it.

Where it is used

• City roads
• Service roads
• Expressway slip and service roads

Other Polycab street and flood light series

• Polycab Citishine Pro LED Street Light - LED street light, 150, 200, 250 and 300 W, price on request
• Polycab Citishine LED Street Light - LED street light, 90 to 300 W, price on request
• Polycab Citirays C4 LED Street Light - LED street light, 45 to 250 W, price on request
• Polycab Citirays V3 Neo LED Street Light - LED street light, 72, 90, 120 and 150 W, price on request (this page)
• Polycab Citirays V3 LED Street Light - LED street light, 25 to 150 W, price on request
• Polycab Eco LED Flood Light - LED flood light, 60 to 200 W, price on request
• Polycab Citibeam LED Flood Light - LED flood light, 60 to 200 W, price on request
• Polycab Estable LED Flood Light - LED flood light, 80 to 400 W, price on request
• Polycab Estable LED Sports Flood Light - LED sports flood light, 500, 1,000, 1,500 and 1,800 W, price on request

Related products

• Polycab Outdoor Tri-Colour LED Strip Light - tri-colour LED strip light, 18 m, 10 W per metre, price on request
• Polycab Ring LED Post Top Lantern - LED post top lantern, 45 W, price on request
• Polycab Cylindrical LED Bollard Light - LED bollard light, 10 W, price on request
• Polycab LED Petrol Pump Canopy Light - LED canopy light, 80 and 100 W, price on request
• Polycab Aglow LED Street Light - LED street light, 24, 36 and 50 W, 3000 / 4000 / 6500 K
• Polycab Emblaze LED Street Light - LED street light, 24, 36 and 50 W, 3000 / 4000 / 6500 K
• Polycab Gleer LED Flood Light - LED flood light, 30, 50 and 100 W, 3000 / 4000 / 6500 K

Frequently asked questions

What is the price of the Polycab Citirays V3 Neo LED Street Light?

Polycab does not publish an MRP for its professional lighting range, so the Citirays V3 Neo is supplied at a price on request. Call +91 9340081159 with the model, for example PCGLS C4 72W 57K - V3 N, the quantity and the delivery location for a quotation.

Which wattage do I need for my pole height?

As a rough guide, 25 to 45 W for poles about 5 to 7 m high, 60 to 90 W for poles about 7 to 9 m high, 120 to 150 W for poles about 9 to 12 m high and 200 to 300 W for highway poles of about 12 m and more. This series covers 72 to 150 W. Send us the road width, pole height and spacing for a layout.

Is earthing needed at every pole?

Yes - earthing is needed for electrical safety, and Polycab also asks for proper earthing at each street light; an unearthed installation can void the warranty.

What arm size does it fit?

A bracket arm of 55 to 60 mm diameter.

Where can I buy the Polycab Citirays V3 Neo LED Street Light in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab LED street lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Citirays V3 Neo is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCGLS C4 72W 57K - V3 N), the quantity and the delivery location, and we will confirm the price, availability and lead time. Quote the full code including the "- V3 N" suffix - the Citirays C4, V3 Neo and V3 share the "PCGLS C4" stem.
