Polycab Estable LED Sports Flood Light – 500, 1,000, 1,500 and 1,800 W, 6500 K, IP66

The Polycab Estable LED Sports Flood Light is a high-power modular LED flood light for sports grounds, stadiums, large open areas and aircraft parking aprons - from 500 to 1,800 W, designed to be flicker-free for broadcasting.

Polycab lists it in 4 models - 500, 1,000, 1,500 and 1,800 W in 6500 K cool white - with about 140 lm/W, beam angles of 10°, 15°, 30° and 60°, surge protection up to 20 kV, CRI 80 or more, IP66 and IK08. It is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its professional lighting range covers office linear lights and troffers, downlights, LED high bays and well glass lights, flameproof luminaires, street and flood lights, bollards and post top lanterns, and architectural facade lighting with DMX control. Jai Enterprises supplies Polycab LED flood lights from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• You have, or will get, a lighting design for the ground - sports lighting is planned for the sport and the level of play.
• The beam angles suit the layout - 10°, 15°, 30° or 60°.
• There are high masts or towers with brackets to carry the fittings.
• Each fitting will be properly earthed - for electrical safety, and because Polycab asks for it at each flood light.

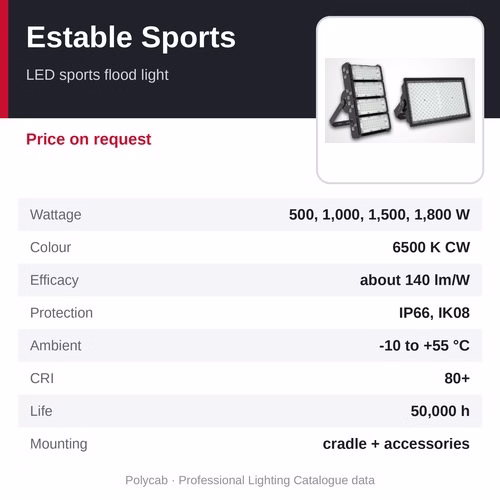

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Estable LED Sports Flood Light
• Type: LED sports flood light
• Wattage: 500, 1,000, 1,500 and 1,800 W
• Colour temperature: 6500 K cool white
• Efficacy: about 140 lm/W (Polycab prints both '140 lm/W or more' and 'up to 140 lm/W')
• Protection: IP66, IK08
• Operating temperature: -10 to +55 °C
• Colour rendering: CRI 80 or more
• Rated life: 50,000 burning hours
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95
• Mounting: cradle (bracket) with mounting accessories
• Beam angles: 10°, 15°, 30° and 60°
• Surge protection: up to 20 kV
• Models (4): PCGLF C5 01 500W to PCGLF C5 01 1800W
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 107-108

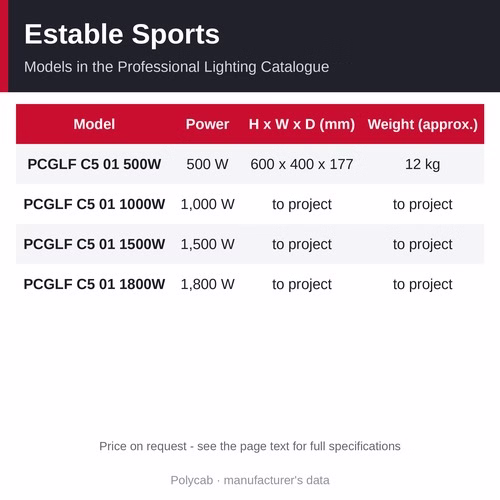

Models and specifications

• PCGLF C5 01 500W: 500 W, 6500 K, about 12 kg, height 600 mm, width 400 mm, depth 177 mm, case lot 1 - price on request
• PCGLF C5 01 1000W: 1,000 W, 6500 K, weight and size customised to the project (Polycab: 'Customizable'), case lot 1 - price on request
• PCGLF C5 01 1500W: 1,500 W, 6500 K, weight and size customised to the project (Polycab: 'Customizable'), case lot 1 - price on request
• PCGLF C5 01 1800W: 1,800 W, 6500 K, weight and size customised to the project (Polycab: 'Customizable'), case lot 1 - price on request
• Supply: 220 to 240 V AC, 50 Hz ± 2%, power factor above 0.95
• Driver option: available with an EMI / EMC driver complying with CISPR 15 - ask for it when you order
• Installation note: Polycab asks for proper earthing at every flood light - an unearthed installation can void the warranty
• Dimension tolerance: ±5 mm (Polycab drawings)
• Source: Polycab Professional Lighting Catalogue (polycab.com, downloaded October 2026), pp 107-108

Why choose the Polycab Estable LED Sports Flood Light

• About 140 lm/W from engineered lenses, with clear visibility for players and viewers
• Designed to be flicker-free for broadcasting and live streaming
• Anti-glare precision optics that keep the light on the field
• Modular, lightweight design for flexible installation and simple maintenance
• Surge protection up to 20 kV
• IP66, IK08, CRI 80 or more
• Available with an EMI / EMC driver complying with CISPR 15 - ask for it when ordering

How to choose and fit it

Design. Sports lighting is designed for the sport, the level of play and any TV broadcast; send us the ground size, mast positions and heights, and we will propose the wattages, beam angles and aiming.

Sizes. The 500 W model is about 600 mm high, 400 mm wide and 177 mm deep (12 kg); for the 1,000, 1,500 and 1,800 W versions Polycab gives the weight and size as customised to the project. Polycab shows two body styles - a four-module unit (the one drawn, 500 W) and a single-panel unit - so we confirm the style for each wattage with the order.

Fitting. Fix each flood light to its mast or tower bracket, aim and lock it to the design, connect it through a weatherproof junction box and earth it. It runs on 220 to 240 V AC. Isolate the supply before work; a qualified electrician should install it.

Where it is used

• Sports grounds
• Stadiums
• Aircraft parking aprons
• Large open areas

Other Polycab street and flood light series

• Polycab Estable LED Sports Flood Light - LED sports flood light, 500, 1,000, 1,500 and 1,800 W, price on request (this page)
• Polycab Citishine Pro LED Street Light - LED street light, 150, 200, 250 and 300 W, price on request
• Polycab Citishine LED Street Light - LED street light, 90 to 300 W, price on request
• Polycab Citirays C4 LED Street Light - LED street light, 45 to 250 W, price on request
• Polycab Citirays V3 Neo LED Street Light - LED street light, 72, 90, 120 and 150 W, price on request
• Polycab Citirays V3 LED Street Light - LED street light, 25 to 150 W, price on request
• Polycab Eco LED Flood Light - LED flood light, 60 to 200 W, price on request
• Polycab Citibeam LED Flood Light - LED flood light, 60 to 200 W, price on request
• Polycab Estable LED Flood Light - LED flood light, 80 to 400 W, price on request

Related products

• Polycab Outdoor Tri-Colour LED Strip Light - tri-colour LED strip light, 18 m, 10 W per metre, price on request
• Polycab Ring LED Post Top Lantern - LED post top lantern, 45 W, price on request
• Polycab Cylindrical LED Bollard Light - LED bollard light, 10 W, price on request
• Polycab LED Petrol Pump Canopy Light - LED canopy light, 80 and 100 W, price on request
• Polycab Aglow LED Street Light - LED street light, 24, 36 and 50 W, 3000 / 4000 / 6500 K
• Polycab Emblaze LED Street Light - LED street light, 24, 36 and 50 W, 3000 / 4000 / 6500 K
• Polycab Gleer LED Flood Light - LED flood light, 30, 50 and 100 W, 3000 / 4000 / 6500 K

Frequently asked questions

What is the price of the Polycab Estable LED Sports Flood Light?

Polycab does not publish an MRP for its professional lighting range, so the Estable Sports is supplied at a price on request. Call +91 9340081159 with the model, for example PCGLF C5 01 500W, the quantity and the delivery location for a quotation.

Which beam angles are available?

10°, 15°, 30° and 60° - narrow beams for distant areas of the field, wider ones for nearer areas.

Is it suitable for televised events?

Polycab designs it to be flicker-free for broadcasting and live streaming. For a televised event the installation must meet the broadcaster's lighting specification (illuminance, uniformity, colour rendering and flicker); send us the requirement and we will check it in the design.

Where can I buy the Polycab Estable LED Sports Flood Light in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab LED flood lights all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the selling price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The Estable Sports is supplied at a price on request - Polycab does not publish MRPs for its professional lighting range. Call +91 9340081159 or send an enquiry from this page with the model (for example PCGLF C5 01 500W), the quantity and the delivery location, and we will confirm the price, availability and lead time.
